107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) 28" Hi-Vac Cutting Deck & Deflector Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

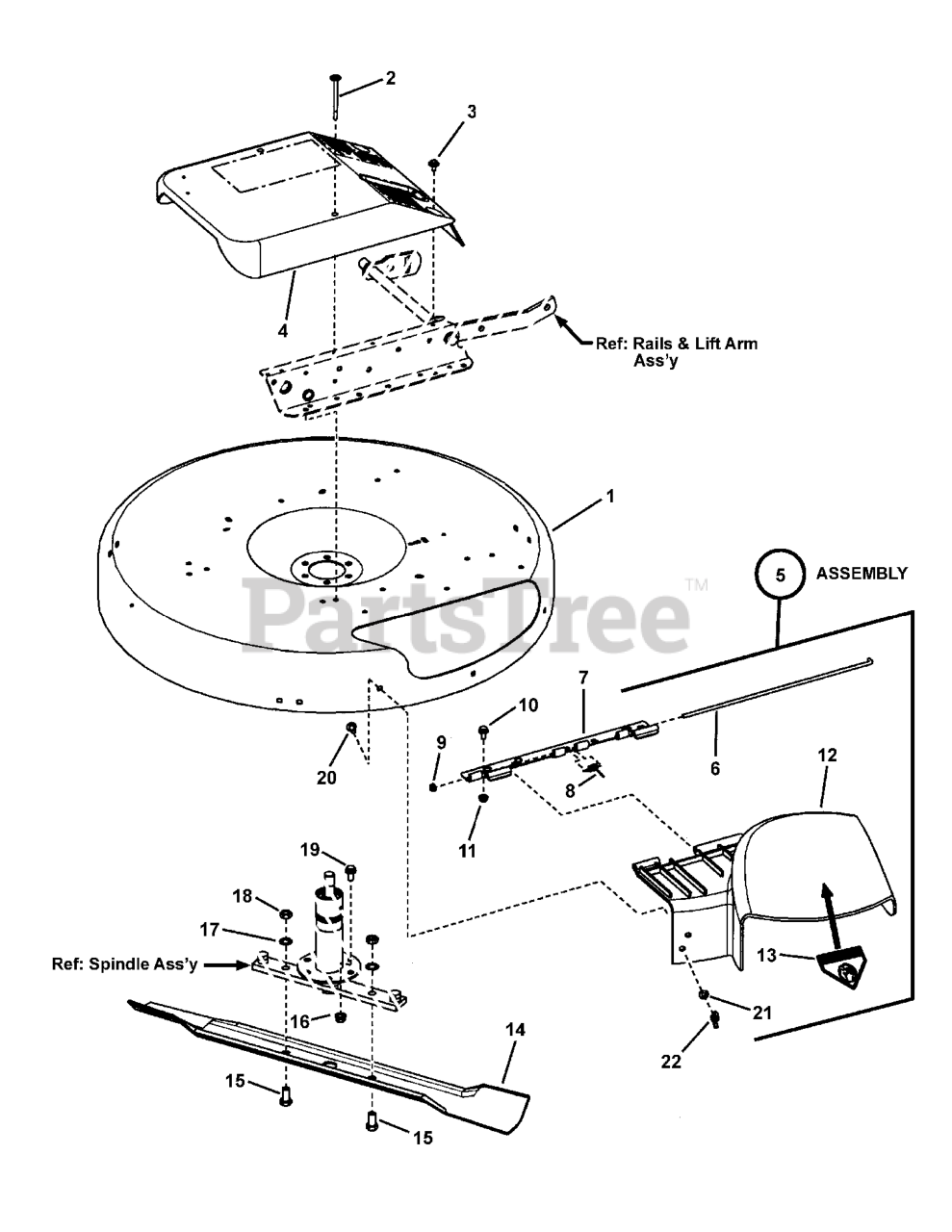

28" Hi-Vac Cutting Deck & Deflector Parts Diagram

  • Title

1

Murray 7061970YP

DECK, 28" Replacement

Note: (Painted deck w/decals & wheel bracket fasteners)

$

$

Not available

2

Murray 7091015YP

SCREW, 1/4-20 x 3-1/2" Hex Head w/Free Spinning Washer

$

$

Not available

3

Murray 7091016YP

SCREW, 1/4-20 x 5/8" Hex Head w/Free Spinning Washer
(Superseded to 703054)

$4.49

$

In Stock, Qty 11

0

4

Murray 7073434YP

COVER, Spindle
(Superseded to 1760729YP)

$132.99

$

Usually ships in 2-12 days

0

5

Murray 7500484YP

ASSEMBLY, Discharge Deflector, 28" without decal
(Superseded to 7600147YP)

Note: (Includes Ref. Nos. 6, 7, 8, 9 & 12)

$129.99

$

In Stock, Qty 15

0

6

Murray 7026234YP

PIN, Hinge
(Superseded to 7105174YP)

$9.49

$

In Stock, Qty 5

0

7

Murray 7300886BMYP

HINGE, Deflector (Deck side)

$21.99

$

Usually ships in 2-12 days

0

8

Murray 7016341YP

SPRING, Hinge

$4.99

$

In Stock, Qty 13

0

9

Murray 7026483YP

PUSH NUT, 1/4"

$4.49

$

In Stock, Qty 6

0

10

Murray 7091811SM

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 703823)

$3.99

$

In Stock, only 2 left!

0

11

Murray 7091070YP

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

12

Murray 7026233YP

DEFLECTOR, Discharge, 28"

$78.99

$

In Stock, Qty 14

0

13

Murray 7013010SM

DECAL, Danger, (Cut Finger)

$9.99

$

In Stock, Qty 10

0

14

Murray 7600103YP

BLADE, Replacement Kit, 28"

$

$

Not available

15

Murray 7090491YP

SCREW, 1/2-20 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 5025018X10SM)

$4.49

$

In Stock, Qty 20+

0

16

Murray 7090613YP

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 9

0

17

Murray 7090509YP

WASHER, 1/2" Internal Tooth Lock

$4.49

$

In Stock, Qty 5

0

18

Murray 7091939YP

NUT, 1/2-20 Hex, GR 5 or B

$3.49

$

In Stock, Qty 17

0

19

Murray 7090612YP

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

$4.49

$

In Stock, Qty 9

0

20

Murray 7091508SM

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

21

Murray 7091296YP

WASHER, 5/16" Flat

$

$

Currently unavailable

22

Murray 7090492YP

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

$4.49

$

In Stock, only 2 left!

0
