107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) Blade Stop Pedals Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

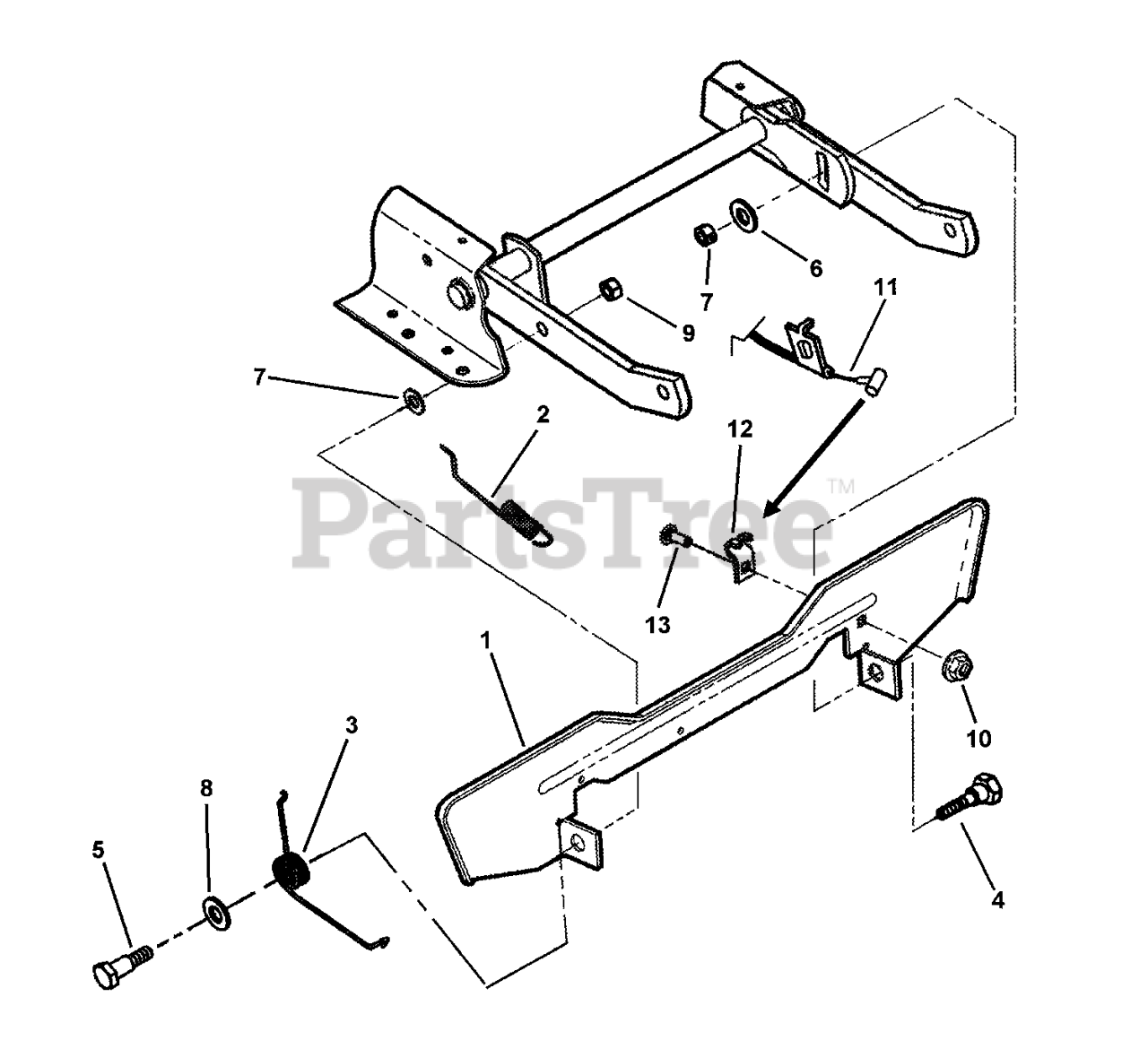

Blade Stop Pedals Parts Diagram

  • Title

1

Murray 7073267YP

FOOT PEDAL, Blade Stop Control

$45.99

$

Usually ships in 2-12 days

0

2

Murray 7074649YP

SPRING, Latching (.072 dia.)

$8.49

$

In Stock, only 1 left!

0

3

Murray 7015448YP

SPRING, Pedal

$6.49

$

In Stock, only 3 left!

0

4

Murray 7015495YP

SHOULDER BOLT, 3/8-24 w/Nylon Patch, GR 5

$

$

Not available

5

Murray 7015446YP

SHOULDER BOLT, 3/8-24 x 9/16"

$5.49

$

Usually ships in 2-12 days

0

6

Murray 7032030SM

WASHER, Flat 13/32" ID x 1.25" x 1/8" Thick ZP

$4.49

$

In Stock, only 1 left!

0

7

Murray 7090155YP

NUT, 3/8-24 Hex, GR B
(Superseded to 703895)

$4.49

$

In Stock, Qty 8

0

8

Murray 7090250YP

WASHER, 1/2" Flat SAE
(Superseded to 704123)

$4.49

$

In Stock, Qty 15

0

9

Murray 7090289SM

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 12

0

10

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, GR 5
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

11

Murray 7073216YP

CABLE ASSEMBLY, No Reverse in Mow

$32.99

$

In Stock, only 1 left!

0

12

Murray 7073217YP

CLIP, Cable

$5.99

$

In Stock, only 1 left!

0

13

Murray 7091776YP

BOLT, 1/4-20 x 3/4" Square Neck Carriage, GR 5
(Superseded to 703575)

$3.99

$

In Stock, only 2 left!

0
