107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) Differential & R. H. Fender Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

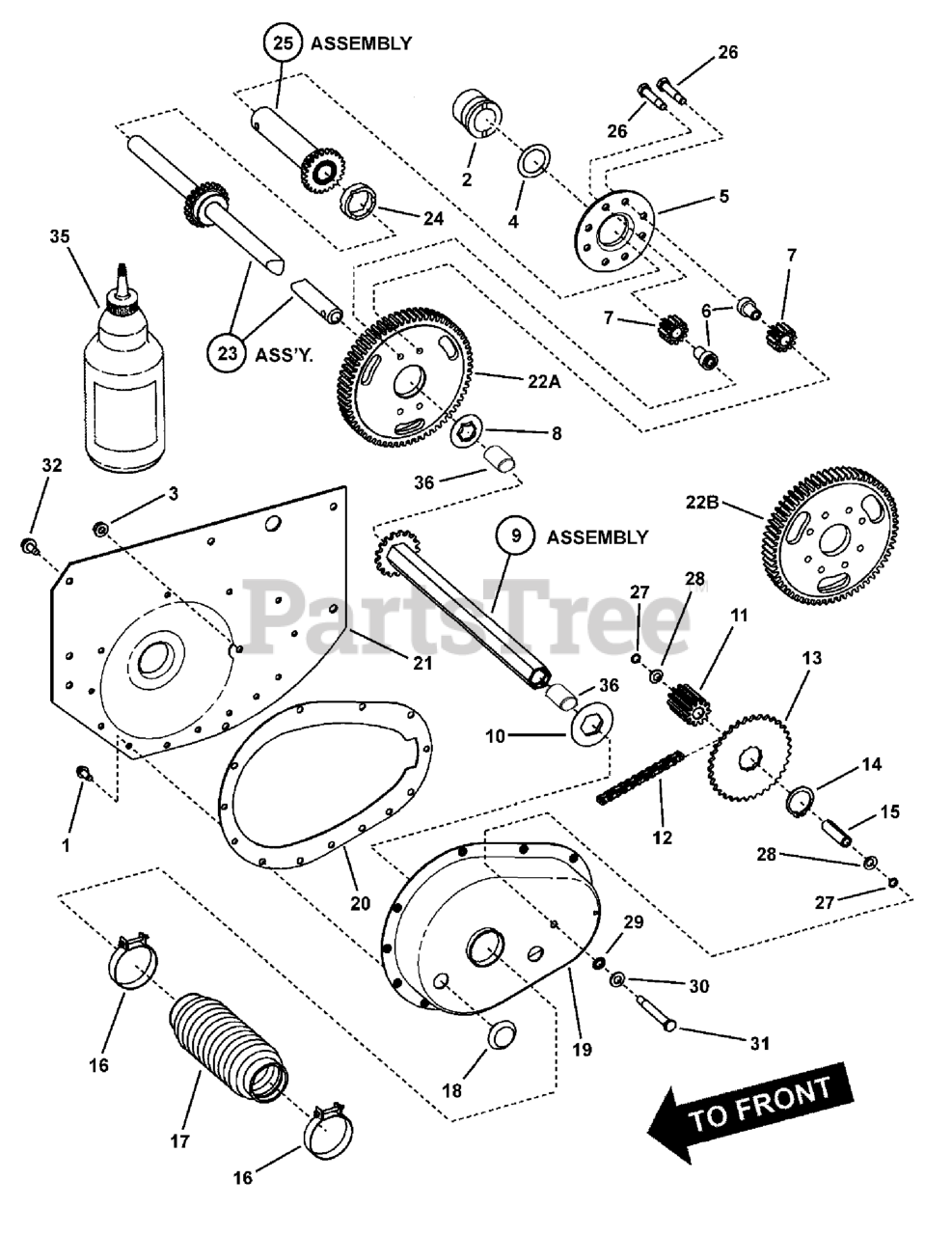

Differential & R. H. Fender Group Parts Diagram

  • Title

1

Murray 7090362YP

SCREW, 1/4-20 x 5/8" Hex Washer Head Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

2

Murray 7012296YP

BEARING, Axle (R. H. Fender)

$14.99

$

In Stock, Qty 20+

0

2

Murray 7054372YP

BEARING-DX, Axle (R. H. Fender)

Note: includes 1-1/8" I.D. (DX) bearing

$

$

Not available

3

Murray 7010969YP

NUT, 5/16-24 Flange Lock (Large)
(Superseded to 703123)

$3.49

$

Usually ships in 2-12 days

0

4

Murray 7031079YP

WASHER, Thrust

$6.99

$

In Stock, Qty 20+

0

5

Murray 7038067YP

PLATE, Differential

Note: Note: 4 holes offset - align properly to prevent binding.

$14.99

$

Usually ships in 2-12 days

0

6

Murray 7022115YP

SPACER, Pinion

$4.49

$

In Stock, only 2 left!

0

7

Murray 7021127YP

GEAR, Differential Pinion (12T 12P)

$23.99

$

In Stock, Qty 12

0

8

Murray 7011072YP

WASHER, Thrust

$5.99

$

In Stock, Qty 20+

0

9

Murray 7051584YP

ASSEMBLY, Drive Hex Tube

Note: (Includes Ref. Nos. 10 & 36)

$92.99

$

In Stock, only 1 left!

0

10

Murray 7010988YP

WASHER, Nylon

$4.49

$

In Stock, Qty 20+

0

11

Murray 7200128YP

GEAR, 11 Tooth, 10 Pitch

$14.99

$

In Stock, Qty 6

0

12

Murray 7010941YP

CHAIN, 46 Pitch (#35 Endless)

$14.99

$

In Stock, Qty 14

0

13

Murray 7021129YP

SPROCKET, 34T, 3/8P

$20.99

$

In Stock, only 2 left!

0

14

Murray 7010965YP

RING, 1-3/16" External Retaining

$4.49

$

In Stock, Qty 10

0

15

Murray 7021128YP

SPACER, Differential Case

$7.49

$

In Stock, only 3 left!

0

16

Murray 7012332YP

BOOT CLAMP, 2"

$6.99

$

In Stock, only 3 left!

0

17

Murray 7075115YP

BOOT, Oil Seal (Short Axle)

$10.99

$

In Stock, Qty 20+

0

18

Murray 7011024YP

PLUG, 1/2" Cup Insert

$2.99

$

In Stock, Qty 20+

0

19

Murray 7037279YP

CASE, Transmission

$79.99

$

Usually ships in 2-12 days

0

20

Murray 7028762YP

GASKET, Transmission Case

$24.99

$

In Stock, Qty 20+

0

21

Murray 7037280YP

FENDER, Right Hand (1.62" Dia. Hole)
(Superseded to 7301301YP)

$149.99

$

Usually ships in 2-12 days

0

22A

Murray 7021158YP

GEAR, 63 Tooth 10 Pitch (4 Hole)

$109.99

$

In Stock, only 3 left!

0

22B

Murray 7027644YP

GEAR, 63 Tooth 10 Pitch (8 Hole)

$

$

Not available

23

Murray 7047763YP

KIT, Long Axle Structure
(Superseded to 7075479YP)

Note: (Includes Ref. No. 24)

$136.99

$

Usually ships in 2-12 days

0

24

Murray 7074431YP

SPACER, Differential Case

$4.49

$

In Stock, Qty 11

0

25

Murray 7057398YP

ASSEMBLY, Short Axle, 23T (Includes Gear)
(Superseded to 7600137YP)

$95.99

$

In Stock, Qty 13

0

26

Murray 7012333YP

BOLT, 5/16-24 x 1-5/8" Hex Special Lock (Vibresist)

$4.99

$

Usually ships in 2-12 days

0

27

Murray 7011156YP

5/16" O-RING

$4.49

$

In Stock, Qty 20+

0

28

Murray 7011782YP

WASHER, 5/16" Belleville

$4.49

$

In Stock, Qty 19

0

29

Murray 7090395YP

WASHER, 5/16" External Tooth Lock
(Superseded to 703138)

$3.99

$

In Stock, Qty 10

0

30

Murray 7090188SM

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

31

Murray 7011042YP

SCREW, 5/16-24 x 2-5/8" Hex Head Cap

$4.49

$

In Stock, only 3 left!

0

32

Murray 7090361YP

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

35

Murray 7061017YP

GREASE, Transmission (24 oz. Required)

$

$

Not available

36

Murray 7015140YP

BEARING, DX

$3.99

$

Usually ships in 2-12 days

0

--

Murray 7060411YP

KIT, Differential (4 Pinion)
(Superseded to 7600229YP)

$1049.99

$

Usually ships in 2-12 days

0

--

Murray 7060662YP

KIT, Differential (8 Pinion w/DX Bearing)
(Superseded to 7600229YP)

$1049.99

$

Usually ships in 2-12 days

0

--

Murray 7060412YP

KIT, Long & Short Axle (Includes items 23, 24, & 25)

$237.99

$

Usually ships in 2-12 days

0
