107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) Electrical Components - For 12.5 HP Briggs Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

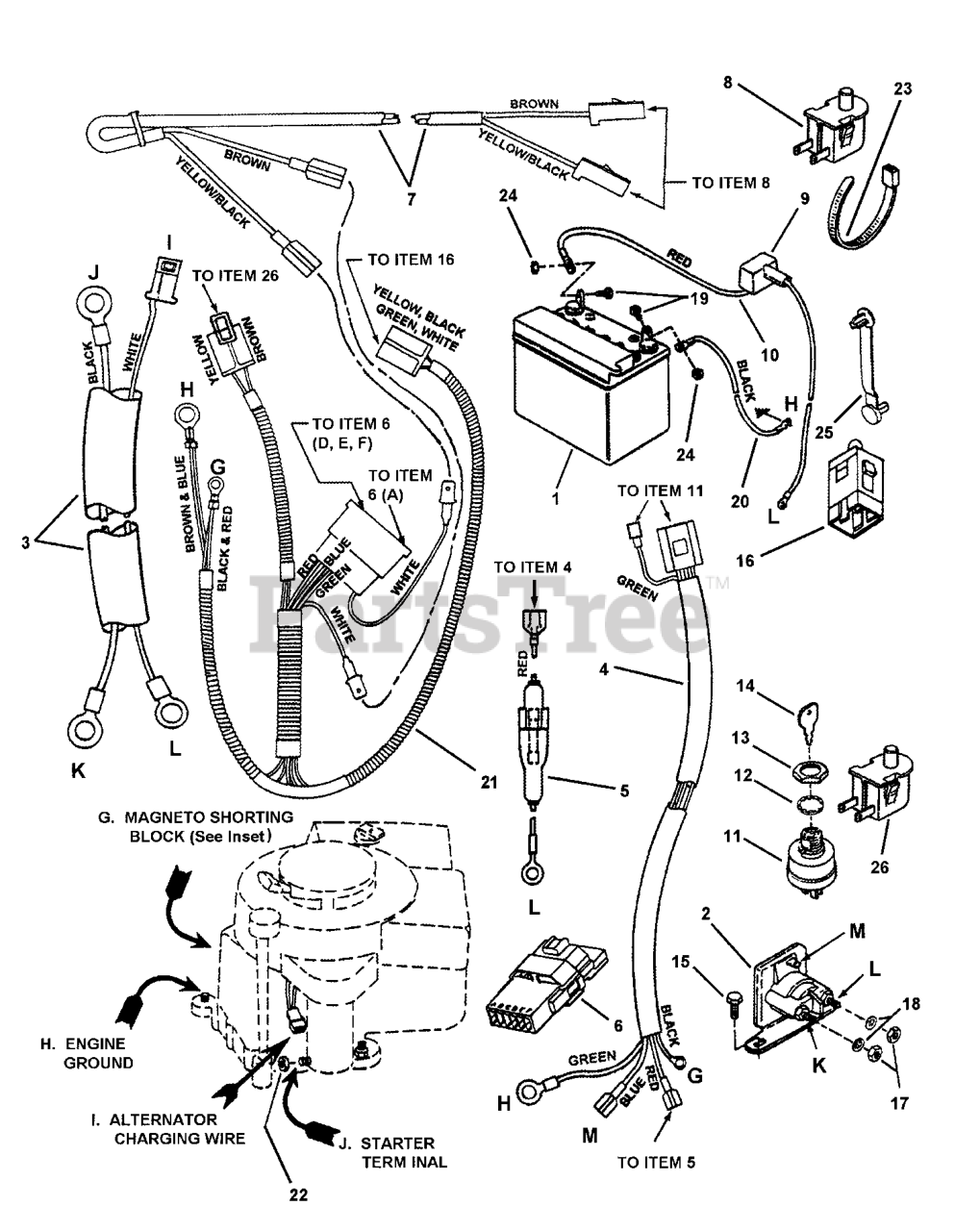

Electrical Components - For 12.5 HP Briggs Parts Diagram

  • Title

1

Murray 7075373YP

BATTERY, 12V 140CCA L Terminal
(Superseded to 7060753YP)

$83.99

$

Usually ships in 2-12 days

0

2

Murray 7075671YP

SOLENOID, Super-Trombetta

$31.99

$

In Stock, Qty 11

0

3

Murray 7022788YP

HARNESS, Starter Wiring (Briggs Engines)

$22.99

$

In Stock, only 2 left!

0

4

Murray 7073715YP

HARNESS, Ignition Wiring (Briggs Engines)

$

$

Not available

5

Murray 7016168YP

HOLDER, Fuse (Includes Fuse)

$23.99

$

In Stock, only 2 left!

0

--

Murray 7016169YP

FUSE, 10 Amp (Not shown)

$18.99

$

Usually ships in 2-12 days

0

6

Murray 7028606YP

INTERLOCK MODULE, Briggs

$53.99

$

In Stock, only 2 left!

0

7

Murray 7028386YP

HARNESS (Deck Interlock Wiring)

$14.99

$

In Stock, only 2 left!

0

8

Murray 7018524YP

SWITCH, Deck Interlock (NO)

$19.99

$

Usually ships in 2-12 days

0

9

Murray 7012444YP

COVER, Battery Cable
(Superseded to 1677296SM)

$6.49

$

In Stock, only 2 left!

0

10

Murray 7019326YP

WIRE, Positive (Red, 17" long)

$8.99

$

In Stock, Qty 7

0

11

Murray 7073797YP

SWITCH, Ignition, 4 Terminal, Indak

$38.99

$

In Stock, Qty 7

0

12

Murray 7090880YP

WASHER, 5/8" Internal Tooth Lock

$4.49

$

Usually ships in 2-12 days

0

13

Murray 7015438YP

NUT, 5/8-32 Hex

$4.49

$

Usually ships in 2-12 days

0

14

Murray 7011138YP

IGNITION KEY, Pair

$7.49

$

In Stock, Qty 8

0

15

Murray 7090539YP

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

16

Murray 7022886YP

SWITCH, Operator Presence Control (OPC) Traction (NC/NO)

$14.99

$

In Stock, Qty 20+

0

17

Murray 7091576SM

NUT, 1/4-20 Hex, GR 5 or B
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

18

Murray 7090053SM

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 13

0

19

Murray 7027172YP

SCREW, 1/4-20 x 5/8" Hex Head Cap. GR 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

20

Murray 7028027YP

WIRE, Negative, Black (15" long)

$10.99

$

In Stock, only 2 left!

0

21

Murray 7028607YP

HARNESS, Operator Presence Control (OPC) Wire

$51.99

$

Usually ships in 2-12 days

0

22

Murray 7091576SM

NUT, 1/4-20 Hex, GR 5 or B
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

23

Murray 7012080SM

CABLE TIE, 7"
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

24

Murray 7090372SM

NUT, 1/4-20 Hex Center Lock, GR 5 or B
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

25

Murray 7014451YP

CABLE TIE

$3.49

$

Usually ships in 2-12 days

0

26

Murray 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0
