107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) Engine, Muffler & Drive Disc Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

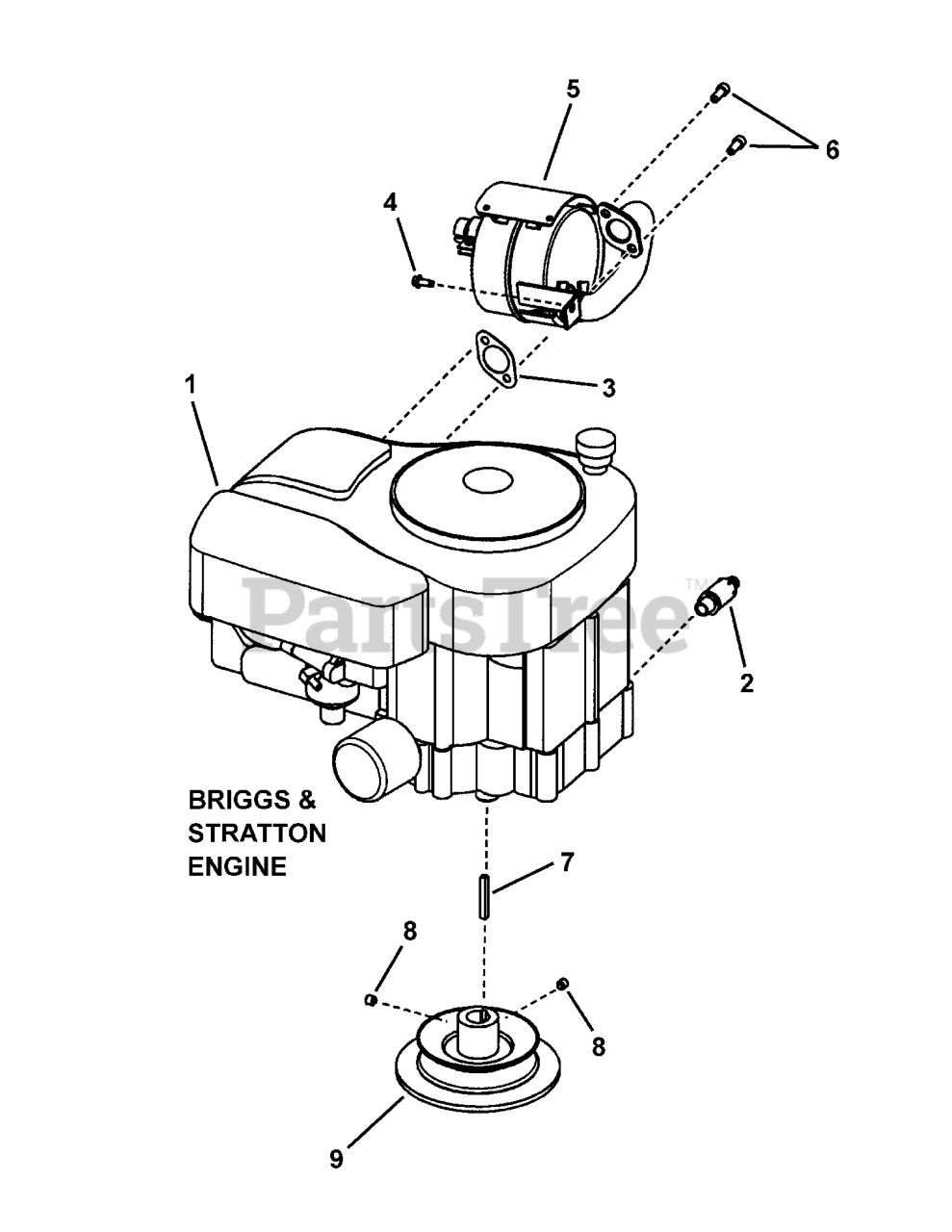

Engine, Muffler & Drive Disc Group Parts Diagram

  • Title

1

Murray 219977-0130-B1

* ENGINE, 12.5HP Briggs Intek OHV, E. S. No Recoil

Note: electric start

$

$

Currently unavailable

2

Murray 7027972SM

ASSEMBLY, Oil Valve

$24.99

$

In Stock, only 1 left!

0

3

Murray 7015352SM

GASKET, Exhaust

$5.49

$

In Stock, Qty 15

0

4

Murray 7090362YP

SCREW, 1/4-20 x 5/8" Hex Washer Head Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

5

Murray 7074453YP

MUFFLER, w/Heat Shield (Briggs 11 thru 17.5HP)

$109.99

$

In Stock, only 1 left!

0

6

Murray 7091738SM

SET SCREW, 5/16-18 x 3/4" Socket Head, GR8

$4.99

$

In Stock, Qty 16

0

7

Murray 7010210SM

KEY, 1/4" Square x 2" Long
(Superseded to 703890)

$4.99

$

In Stock, Qty 8

0

8

Murray 7090132YP

SET SCREW, HRSS, 3/8-16 x 3/8"

$3.49

$

In Stock, Qty 10

0

9

Murray 7072658YP

WELDMENT, 5.75" O.D. Drive Disc

$125.99

$

In Stock, only 3 left!

0

10

Murray 7091576SM

NUT, 1/4-20 Hex, GR 5 or B (not shown)
(Superseded to 703127)

Note: (attaches to starter terminal)

$3.49

$

In Stock, only 3 left!

0
