107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) Fuel Tank & Seat Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

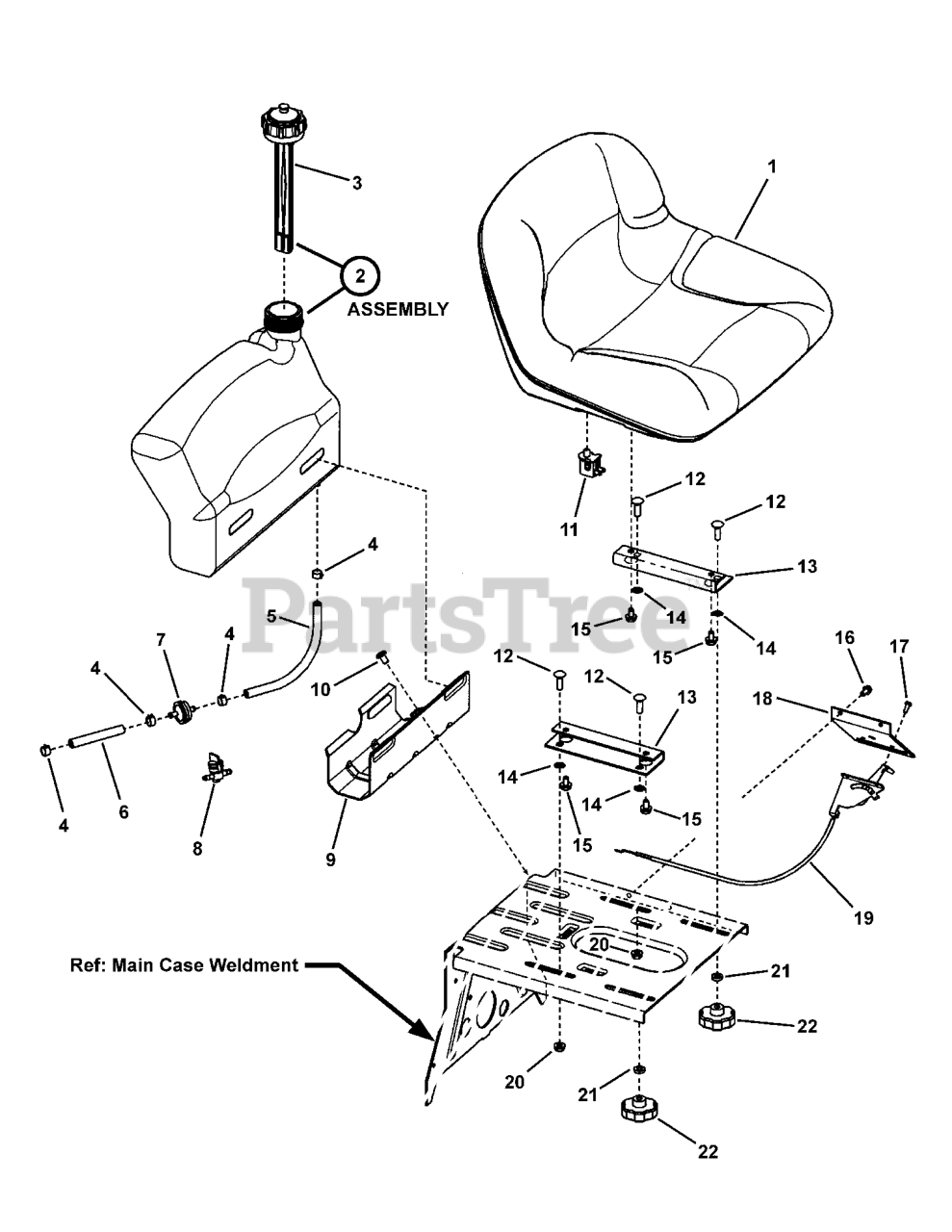

Fuel Tank & Seat Group Parts Diagram

  • Title

1

Murray 885172YP

SEAT

$290.99

$

Usually ships in 2-12 days

0

2

Murray 7052435YP

ASSEMBLY, Fuel Tank with Gauge (Includes Cap w/Gage)
(Superseded to 84002729)

Note: (Includes Ref. No. 3)

$234.99

$

Usually ships in 2-12 days

0

3

Murray 7019377YP

CAP, Fuel Tank w/Gage

$34.99

$

In Stock, Qty 16

0

4

Murray 7029900SM

CLAMP, Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

5

Murray 791766

LINE, Fuel

Note: (Low Perm, Cut to Length, 8-1/2" Long)

$7.99

$

In Stock, Qty 20+

0

6

Murray 791766

LINE, Fuel

Note: (Low Perm, Cut to Length, 3-1/2" Long)

$7.99

$

In Stock, Qty 20+

0

7

Murray 7014359YP

FILTER, Fuel (In-Line)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

8

Murray 7024507YP

VALVE, Fuel Shut-Off (Accessory)
(Superseded to 7034212YP)

$31.99

$

In Stock, only 2 left!

0

9

Murray 7033377BMYP

BRACKET, Fuel Tank
(Superseded to 84003084)

$42.99

$

Usually ships in 2-12 days

0

10

Murray 7091542SM

SCREW, Phillips Head Taptite, Torx 5/16C x 1/2
(Superseded to 703932)

$4.99

$

In Stock, only 1 left!

0

11

Murray 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

12

Murray 7091303YP

Bolt, Carriage,Short Neck, 5/16 X 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

13

Murray 7075018BMYP

PLATE, Seat Adapter

$15.99

$

Usually ships in 2-12 days

0

14

Murray 7011791SM

BOLT, Retainer 5/16-18
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

15

Murray 7091038YP

BOLT, 5/16-18 x 1/2 Hex Flange Nyloc

$4.49

$

In Stock, Qty 13

0

16

Murray 7090362YP

SCREW, 1/4-20 x 5/8" Hex Washer Head Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

17

Murray 7090913SM

SCREW, Hex Washer Head, Self-Tap, #10-24 x 1/2 (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

18

Murray 7033470YP

PLATE, Throttle

$26.99

$

Usually ships in 2-12 days

0

19

Murray 7022751YP

CONTROL, Throttle (23.6" long) (Briggs Engines)

$26.99

$

In Stock, only 4 left!

0

20

Murray 7090951SM

NUT, Hex, Centerlock
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

21

Murray 7013849YP

SPACER, .33 x .63 x .156
(Superseded to 703970)

$4.49

$

In Stock, Qty 10

0

22

Murray 7023735YP

KNOB, Fluted, 5/16-18 internal thread (2.15 O.D.)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0
