107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) Primary Chain Case & Smooth Clutch Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

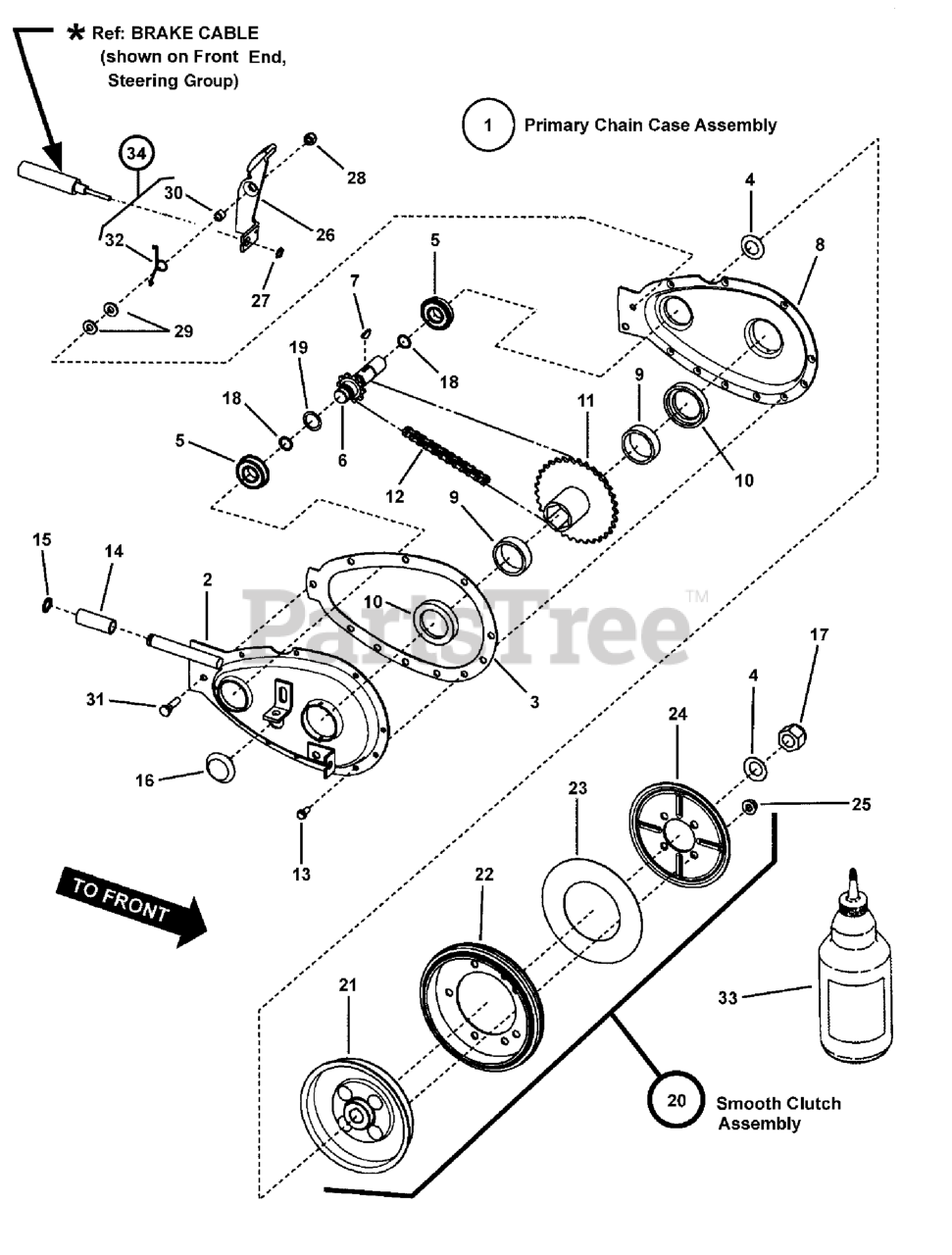

Primary Chain Case & Smooth Clutch Parts Diagram

  • Title

1

Murray 7052683YP

ASSEMBLY, Primary Chain Case

Note: (Includes Ref. Nos. 6 through 12)

$530.99

$

In Stock, only 1 left!

0

2

Murray 7041136YP

WELDMENT, Primary Chain Case Half, Right Hand

$86.99

$

Usually ships in 2-12 days

0

3

Murray 7028761YP

GASKET, Primary Chain Case
(Superseded to 7028762YP)

$24.99

$

In Stock, Qty 20+

0

4

Murray 7011121SM

WASHER, 5/8" Belleville

$3.49

$

In Stock, Qty 6

0

5

Murray 7010756YP

BEARING, .625 x 1.37 x .435

$11.99

$

In Stock, Qty 16

0

6

Murray 7018963YP

WELDMENT, Sprocket & Shaft

$96.99

$

In Stock, only 1 left!

0

7

Murray 7010614YP

KEY, #5 Woodruff

$4.49

$

In Stock, Qty 8

0

8

Murray 7039778YP

PRIMARY CHAIN CASE HALF, Left Hand

$43.99

$

Usually ships in 2-12 days

0

9

Murray 7010942YP

BEARING, Needle 1.355" ID x 1.6245" OD x .5" Wide

$13.99

$

In Stock, Qty 13

0

10

Murray 7011086YP

THRUST WASHER, Nylon

$4.49

$

In Stock, Qty 16

0

11

Murray 7040355YP

WELDMENT, Hub & Sprocket

$245.99

$

Usually ships in 2-12 days

0

12

Murray 7010941YP

CHAIN, 46 Pitch (#35 Endless)

$14.99

$

In Stock, Qty 14

0

13

Murray 7090307YP

SCREW, 10-24 x 1/2" Hex Washer Self-Tap
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

14

Murray 7022785YP

ROLLER, 1-3/8 Long

$6.49

$

In Stock, Qty 9

0

15

Murray 7010776YP

RING, 1/2" External Retaining (Heavy Duty)

$3.99

$

In Stock, only 4 left!

0

16

Murray 7011024YP

PLUG, 3/4" Cup Insert

$2.99

$

In Stock, Qty 20+

0

17

Murray 7091505YP

NUT, 5/8-18 Hex Nyloc
(Superseded to 703432)

$

$

Not available

18

Murray 7019260YP

O-RING, 1/2 x 5/8"

$3.49

$

In Stock, Qty 20+

0

19

Murray 7027981YP

WASHER, Shim .625 x .875

$4.49

$

In Stock, only 2 left!

0

20

Murray 7053114YP

ASSEMBLY, Smooth Clutch, non-asbestos
(Superseded to 7600208YP)

Note: (Includes Ref. Nos. 21 through 25)

$

$

Not available

21

Murray 7059443YP

HUB, Driven Disc Assembly
(Superseded to 7600142YP)

$42.99

$

In Stock, only 3 left!

0

22

Murray 7053103YP

DISC, Driven (rubber tire bonded to rim)
(Superseded to 7600135YP)

$42.99

$

In Stock, Qty 20+

0

23

Murray 7014523YP

THRUST WASHER

$4.99

$

In Stock, Qty 14

0

24

Murray 7032331YP

PLATE, Drive Disc

$18.99

$

In Stock, Qty 5

0

25

Murray 7092081YP

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

Usually ships in 2-12 days

0

26

Murray 7052497YP

ASSEMBLY, Brake Lever (Includes brake pad & rivet)

$13.99

$

In Stock, only 1 left!

0

27

Murray 7012313SM

RING, 3/8" External Retaining

$3.99

$

In Stock, Qty 8

0

28

Murray 7090303YP

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, only 2 left!

0

29

Murray 7091294SM

WASHER, .28 x .63 x .06 Flat, GR 5
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

30

Murray 7072593YP

SPACER, Brake Arm Pivot (.418/.403 long)

$5.49

$

In Stock, only 2 left!

0

31

Murray 7091504YP

SCREW, 1/4-28 x 1" Hex Head Cap, (Washer Face) GR 5

$4.49

$

Usually ships in 2-12 days

0

32

Murray 7072406YP

SPRING, Torsional Brake Return

$

$

Not available

33

Murray 7061017YP

GREASE, Transmission (Use 2 oz. Maximum)

$

$

Not available

34

Murray 7061197YP

KIT, Brake Return Replacement

Note: (Includes Ref. Nos. 30 & 32)

$8.49

$

In Stock, Qty 6

0
