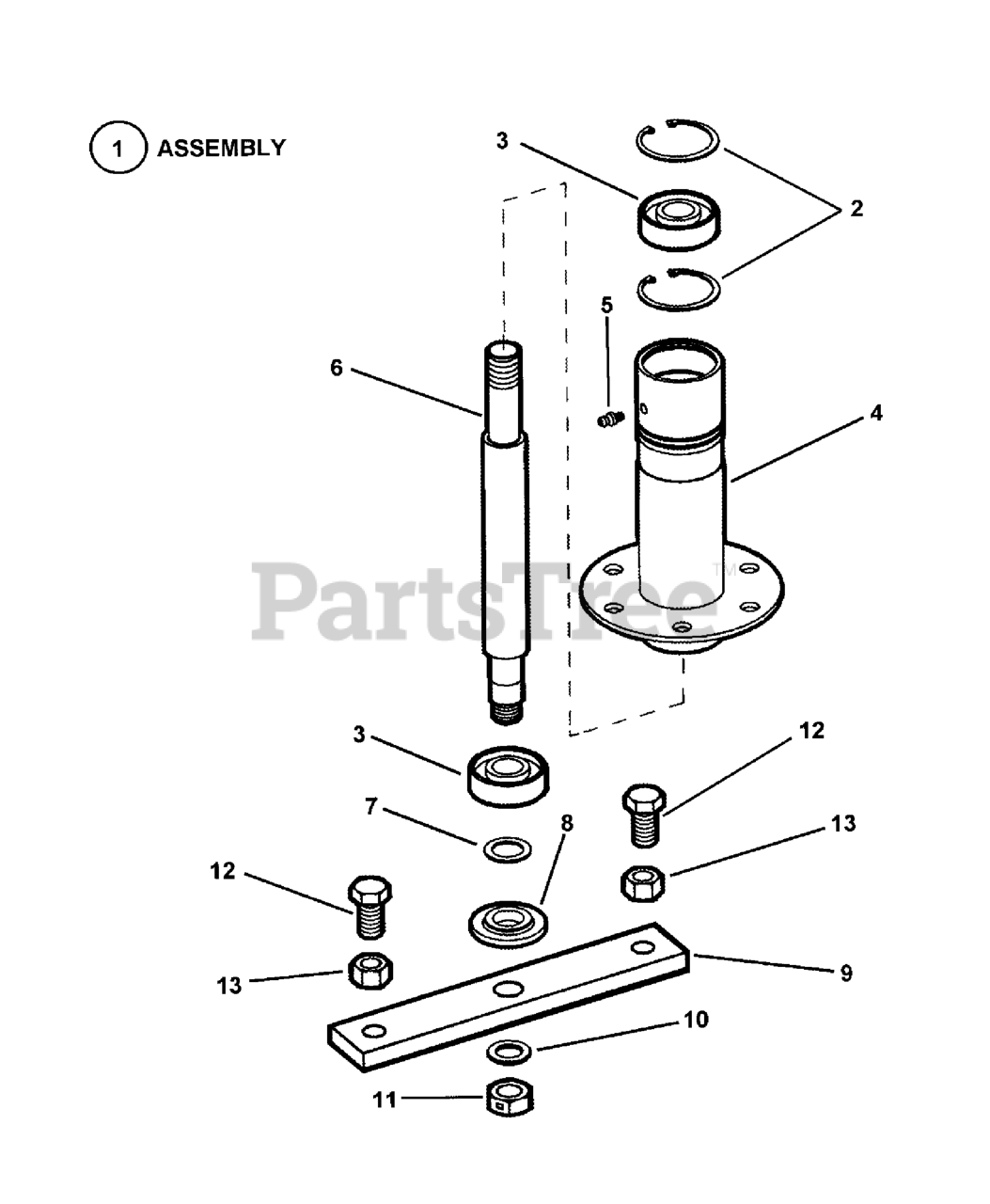

107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) Spindle Assembly Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

Spindle Assembly Parts Diagram

  • Title

1

Murray 7058049YP

ASSEMBLY, Spindle
(Superseded to 7600138YP)

Note: (Includes Ref. Nos. 2 through 11)

$157.99

$

In Stock, only 1 left!

0

2

Murray 7012491SM

RING, 1.85" Internal Retaining

$4.49

$

In Stock, Qty 20+

0

3

Murray 7013313SM

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

4

Murray 7050696YP

ASSEMBLY, Spindle Housing
(Superseded to 7040460BMYP)

Note: (Includes Ref. No. 5)

$67.99

$

In Stock, only 4 left!

0

5

Murray 7010817SM

LUBE FITTING, 3/16" Press-In

$4.49

$

In Stock, Qty 17

0

6

Murray 7044785YP

SPINDLE, Rider (10.327" overall length)

$42.99

$

In Stock, Qty 17

0

7

Murray 7010935SM

WASHER, .77 x 1.13 x .06 Flat

$3.99

$

In Stock, Qty 20+

0

8

Murray 7014407SM

WASHER, Spindle

$7.49

$

In Stock, Qty 20+

0

9

Murray 7031184YP

HOLDER, Blade
(Superseded to 7031184BMYP)

$74.99

$

In Stock, Qty 6

0

10

Murray 7044782YP

SPACER, Blade Centering

$4.99

$

In Stock, Qty 17

0

11

Murray 7090356YP

NUT, 5/8-18 Hex Center Lock Jam

$5.49

$

In Stock, Qty 12

0

12

Murray 7090491YP

SCREW, 1/2-20 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 5025018X10SM)

$4.49

$

In Stock, Qty 20+

0

13

Murray 7091939YP

NUT, 1/2-20 Hex, GR 5 or B

$3.49

$

In Stock, Qty 17

0
