107.280341 (7800669 A) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2011) 28" Mower Deck - Housing & Spindle Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

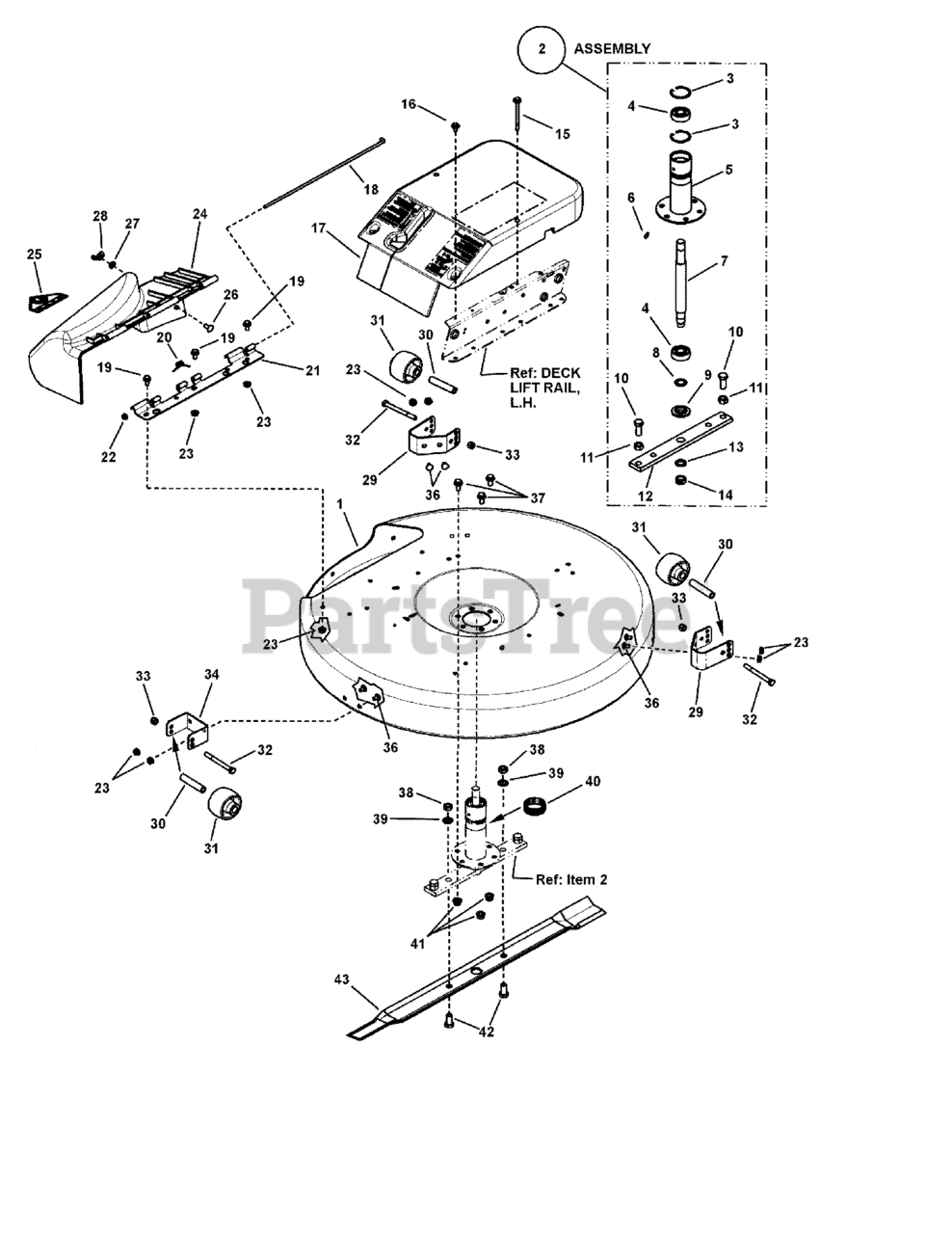

28" Mower Deck - Housing & Spindle Group Parts Diagram

  • Title

1

Murray 7061970YP

DECK, 28" Replacement (painted deck w/decals)

$

$

Not available

2

Murray 7054531BMYP

ASSEMBLY, Spindle Housing

Note: (Incl. Ref. 3 through 14)

$

$

Not available

3

Murray 7012491SM

RING, 1.85" Internal Retaining

Note: (Included with Ref. No. 2)

$4.49

$

In Stock, Qty 20+

0

4

Murray 7013313SM

BEARING, Spindle
(Superseded to 2108202SM)

Note: (Included with Ref. No. 2)

$11.99

$

In Stock, Qty 20+

0

5

Murray 7050696YP

ASSEMBLY, Housing
(Superseded to 7040460BMYP)

Note: (Incl. Ref. 6)(Included with Ref. No. 2)

$67.99

$

In Stock, only 4 left!

0

6

Murray 7010817SM

LUBE FITTING, 3/16" Press-In

Note: (Included with Ref. No. 5)(Included with Ref. No. 2)

$4.49

$

In Stock, Qty 17

0

7

Murray 7044785YP

SPINDLE, Rider (10.327" overall length)

Note: (Included with Ref. No. 2)

$42.99

$

In Stock, Qty 17

0

8

Murray 7010935SM

WASHER, .77 x 1.13 x .06 Flat

Note: (Included with Ref. No. 2)

$3.99

$

In Stock, Qty 20+

0

9

Murray 7014407SM

WASHER, Spindle

Note: (Included with Ref. No. 2)

$7.49

$

In Stock, Qty 20+

0

10

Murray 7090491YP

SCREW, 1/2-20 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 5025018X10SM)

Note: (Included with Ref. No. 2)

$4.49

$

In Stock, Qty 20+

0

11

Murray 7091939YP

NUT, 1/2-20 Hex, GR 5 or B

Note: (Included with Ref. No. 2)

$3.49

$

In Stock, Qty 17

0

12

Murray 7037751BMYP

HOLDER, Blade (for 28" Deck)

Note: (Included with Ref. No. 2)

$48.99

$

In Stock, Qty 5

0

13

Murray 7044782YP

SPACER, Blade Centering

Note: (Included with Ref. No. 2)

$4.99

$

In Stock, Qty 17

0

14

Murray 7090356YP

NUT, 5/8-18 Hex Center Lock Jam

Note: (Included with Ref. No. 2)

$5.49

$

In Stock, Qty 12

0

15

Murray 7091015YP

SCREW, 1/4-20 x 3-1/2" Hex Head w/Free Spinning Washer

$

$

Not available

16

Murray 7091016YP

SCREW, 1/4-20 x 5/8" Hex Head w/Free Spinning Washer
(Superseded to 703054)

$4.49

$

In Stock, Qty 11

0

17

Murray 7073434YP

COVER, Spindle
(Superseded to 1760729YP)

$132.99

$

Usually ships in 2-12 days

0

18

Murray 7026234YP

PIN, Hinge
(Superseded to 7105174YP)

Note: (Included with Ref. No. 24)

$9.49

$

In Stock, Qty 5

0

19

Murray 7091811SM

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 703823)

$3.99

$

Usually ships in 2-12 days

0

20

Murray 7016341YP

SPRING, Hinge

Note: (Included with Ref. No. 24)

$4.99

$

In Stock, Qty 13

0

21

Murray 7300886YP

HINGE, Deflector (Deck side)

Note: (Included with Ref. No. 24)

$

$

Currently unavailable

22

Murray 7026483YP

PUSH NUT, 1/4"

Note: (Included with Ref. No. 24)

$4.49

$

In Stock, Qty 8

0

23

Murray 7091601SM

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

24

Murray 7600096YP

ASSEMBLY, Discharge Deflector 28" (w/o decal)

Note: (incl. items 18, 20, 21, 22 & 24)

$

$

Not available

24

Murray 7026233YP

DEFLECTOR, Discharge, 28"

Note: (Included with Ref. No. 24)

$78.99

$

In Stock, Qty 14

0

25

Murray 7022841SM

DECAL, Danger, (Cut Finger) International Symbol

$72.99

$

In Stock, only 1 left!

0

26

Murray 7090001YP

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

27

Murray 7090188SM

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

28

Murray 7091537YP

NUT, 5/16-18 Wing

$4.49

$

In Stock, only 2 left!

0

29

Murray 7033571BMYP

BRACKET, Gage Wheel (Rear)

$14.99

$

Usually ships in 2-12 days

0

30

Murray 7015272YP

SPACER

$7.49

$

In Stock, only 4 left!

0

31

Murray 7019190YP

WHEEL, Gage

$11.99

$

In Stock, Qty 14

0

32

Murray 7091532YP

SCREW, 3/8-24 x 3-3/4" Hex Head Cap, GR 5
(Superseded to 703876)

$6.99

$

In Stock, only 2 left!

0

33

Murray 7091518SM

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

34

Murray 7033570BMYP

BRACKET, Gage Wheel (Front)

$19.99

$

In Stock, only 2 left!

0

36

Murray 7090731SM

BOLT, 5/16-18 x 1/2" Short Neck Carriage, GR 5
(Superseded to 703798)

$4.49

$

In Stock, only 4 left!

0

37

Murray 7091588SM

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

$4.49

$

In Stock, Qty 9

0

38

Murray 7090559YP

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 15

0

39

Murray 7090509YP

WASHER, 1/2" Internal Tooth Lock

$4.49

$

In Stock, Qty 5

0

40

Murray 7012670YP

RING, Tolerance

$8.49

$

In Stock, Qty 9

0

41

Murray 7090585MA

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

42

Murray 7090392YP

SCREW, 1/2-20 x 1" Hex Head Cap, GR 5
(Superseded to 703880)

$4.49

$

In Stock, Qty 8

0

43

Murray 7600101YP

BLADE, Replacement Kit, 28"

$991.99

$

Usually ships in 2-12 days

0
