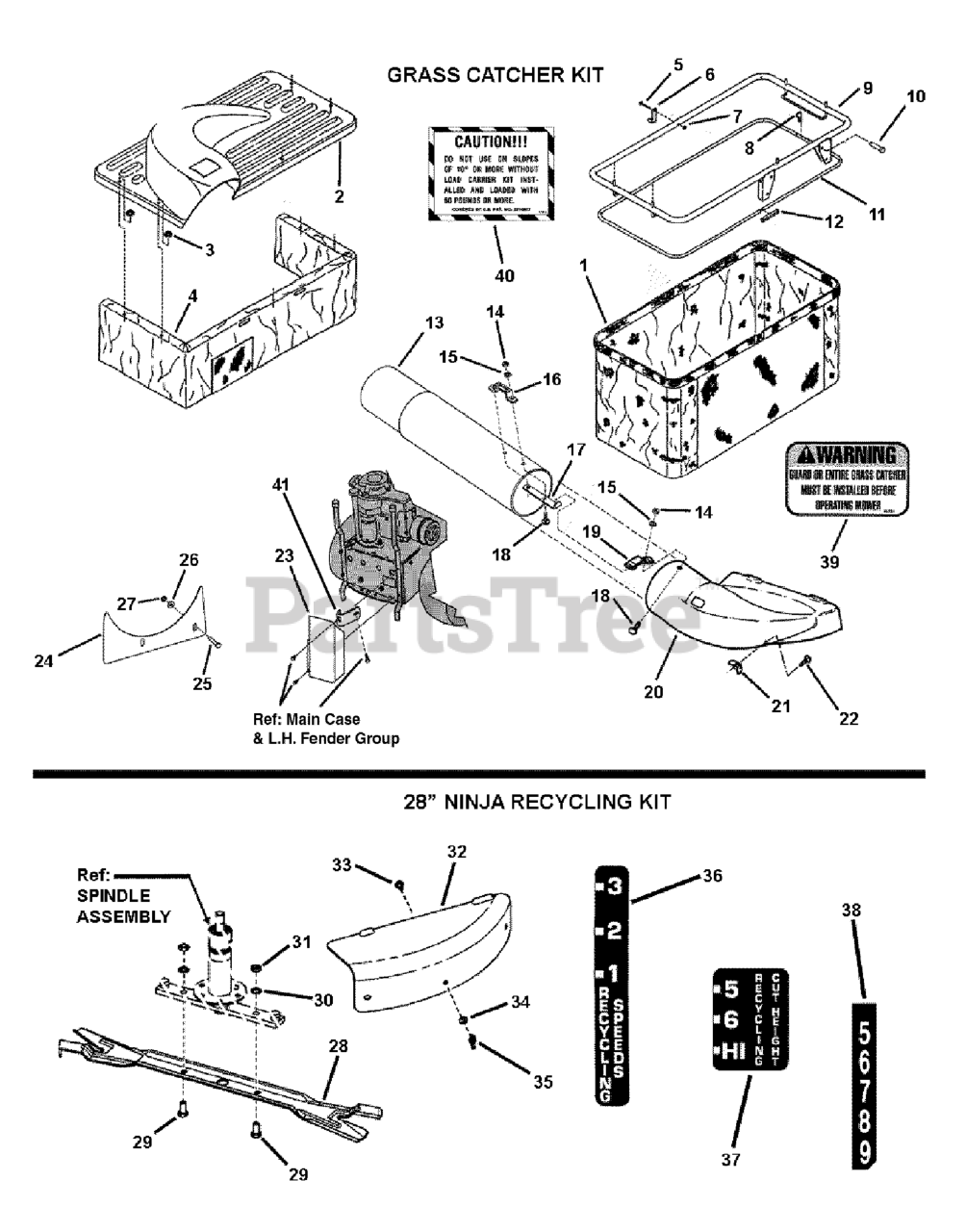

107.280341 (7800669 A) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2011) Accessories Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

Accessories Parts Diagram

  • Title

--

Murray 7600101YP

KIT, Single Bag Grass Catcher, 28"

Note: (Includes Ref. Nos. 1 through 27)

$991.99

$

Usually ships in 2-12 days

0

1

Murray 7019251YP

GRASS BAG, Single, Zipperless
(Superseded to 7024819YP)

$

$

Not available

2

Murray 7104012YP

TOP, Grass Container, No Graphics

$296.99

$

Usually ships in 2-12 days

0

3

Murray 7029840YP

WASHER, 5/16 Faceted
(Superseded to 704315)

$4.49

$

Usually ships in 2-12 days

0

4

Murray 7016108YP

DUST SKIRT

$39.99

$

In Stock, only 1 left!

0

5

Murray 7090532YP

SCREW, #10-32 x 1-3/8" Hex Head Machine
(Superseded to 704316)

$4.99

$

In Stock, only 1 left!

0

6

Murray 7031725YP

LATCH, Grass Catcher Top

$5.49

$

Usually ships in 2-12 days

0

7

Murray 7090376YP

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

8

Murray 7091503SM

PIN, 3/32 x 1-1/2" Hair, YZ

$3.99

$

In Stock, Qty 20+

0

9

Murray 7047973YP

FRAME STRUCTURE

$204.99

$

In Stock, only 1 left!

0

10

Murray 7029841YP

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

$4.49

$

In Stock, Qty 6

0

11

Murray 7037758YP

ROD, Bag
(Superseded to 7057248YP)

$103.99

$

Usually ships in 2-12 days

0

12

Murray 7012556YP

CONNECTOR, Bag Rod

$7.49

$

Usually ships in 2-12 days

0

13

Murray 7014517YP

GRASS TUBE, 28-33

$125.99

$

Usually ships in 2-12 days

0

14

Murray 7091576SM

NUT, 1/4-20 Hex, YZ
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

15

Murray 7091314YP

WASHER, 1/4" Internal Tooth Lock, YZ
(Superseded to 703462)

$4.49

$

In Stock, Qty 13

0

16

Murray 7037745YP

HANDLE, Tube

$10.99

$

Usually ships in 2-12 days

0

17

Murray 7031952YP

BASE, Handle

$7.49

$

In Stock, only 2 left!

0

18

Murray 7091530SM

BOLT, 1/4-20 x 3/4" Round Head Short Square Neck Carriage, YZ

$3.99

$

In Stock, Qty 5

0

19

Murray 7031951YP

LATCH, Tube

$5.99

$

In Stock, Qty 5

0

20

Murray 7019912YP

ADAPTER, 28" Deck

$134.99

$

In Stock, only 1 left!

0

21

Murray 7091537YP

WING LOCKNUT, 5/16-18, YZ

$4.49

$

In Stock, Qty 13

0

22

Murray 7091303YP

BOLT, 5/16-18 x 1" Round Head Short Square Neck, GR 5
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

23

Murray 7071677YP

MUFFLER GUARD, Grass Catcher

$79.99

$

In Stock, only 1 left!

0

24

Murray 7063287YP

SHIELD, Grass Catcher Debris
(Superseded to 7063289YP)

$29.99

$

Usually ships in 2-12 days

0

25

Murray 7090909YP

BOLT, 1/4-20 x 1-1/2" Hex Head
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

26

Murray 7091294SM

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

27

Murray 7091705SM

NUT, 1/4-20 Hex top Lock
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0

--

Murray 7600100YP

KIT, Ninja Recycling, 28" Deck

Note: (Includes Ref. Nos. 28 through 38)

$159.99

$

Usually ships in 2-12 days

0

28

Murray 7104083BMYP

BLADE, Ninja, 28"
(Superseded to 7104083BZYP)

$

$

Not available

29

Murray 7090392YP

SCREW, 1/2-20 x 1" Hex Head Cap, GR 5
(Superseded to 703880)

$4.49

$

In Stock, Qty 15

0

30

Murray 7090509YP

WASHER, 1/2" Internal Tooth Lock

$4.49

$

In Stock, only 2 left!

0

31

Murray 7090559YP

NUT, 1/2-20 Hex Jam, GR 5 or B
(Superseded to 703903)

$3.49

$

In Stock, only 4 left!

0

32

Murray 7016983YP

COVER, 28" Mulcher

$64.99

$

In Stock, Qty 6

0

33

Murray 7090001YP

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

34

Murray 7090188SM

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

35

Murray 7090492YP

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

$4.49

$

In Stock, Qty 13

0

36

Murray 7017176SM

DECAL, Ground Speed, Recycle

$17.99

$

Usually ships in 2-12 days

0

37

Murray 7017328YP

DECAL, Height-Of-Cut, Recycle

$10.99

$

Usually ships in 2-12 days

0

38

Murray 7022325YP

DECAL, Height-Of-Cut

$9.99

$

In Stock, only 2 left!

0

39

Murray 7046720SM

DECAL, Chute/Deflector Warning

$7.49

$

In Stock, only 1 left!

0

40

Murray 7011910YP

DECAL, Grass Catcher

$11.99

$

Usually ships in 2-12 days

0

41

Murray 7042716YP

BRACKET, Bumper Reinforcement

$23.99

$

Usually ships in 2-12 days

0
