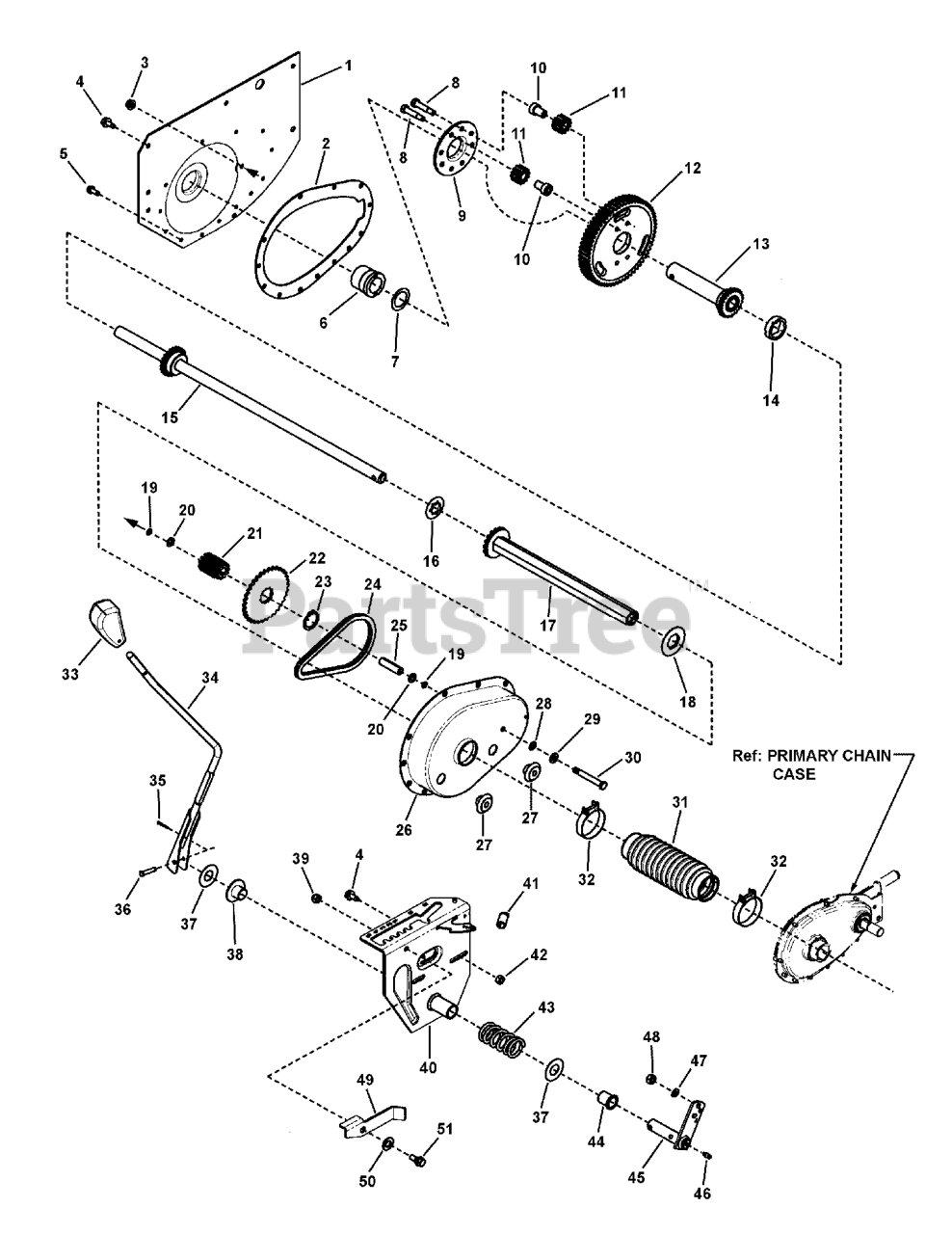

107.280341 (7800669 A) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2011) Differential, RH Fender & Gear Shift Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

Differential, RH Fender & Gear Shift Group Parts Diagram

  • Title

1

Murray 7037280YP

FENDER, Right Hand (1.62" Dia. Hole)
(Superseded to 7301301YP)

$149.99

$

Usually ships in 2-12 days

0

2

Murray 7028762YP

GASKET, Transmission Case

$24.99

$

In Stock, Qty 20+

0

3

Murray 7010969YP

NUT, 5/16-24 Flange Lock (Large)
(Superseded to 703123)

$3.49

$

In Stock, only 4 left!

0

4

Murray 7090361YP

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

5

Murray 7091819SM

SCREW, 1/4-20 x 5/8" Hex Washer Head Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

6

Murray 7012296YP

BEARING, Axle (R. H. Fender)

$14.99

$

In Stock, Qty 20+

0

7

Murray 7031079YP

WASHER, Thrust

$6.99

$

In Stock, Qty 20+

0

8

Murray 7012333YP

BOLT, 5/16-24 x 1-5/8" Hex Special Lock (Vibresist)

Note: (replace after each use)

$4.99

$

In Stock, Qty 5

0

9

Murray 7038067YP

PLATE, Differential

Note: (Note: 4 holes offset - align properly to prevent binding.)

$14.99

$

Usually ships in 2-12 days

0

10

Murray 7022115YP

SPACER, Pinion

$4.49

$

Usually ships in 2-12 days

0

11

Murray 7021127YP

GEAR, Differential Pinion (12T 12P)

$23.99

$

In Stock, Qty 17

0

12

Murray 7021158YP

GEAR, 63 Tooth 10 Pitch (4 Hole)

$109.99

$

In Stock, only 3 left!

0

13

Murray 7600137YP

KIT, Short Axle Assembly, 23T (Includes Gear)

$95.99

$

In Stock, Qty 13

0

14

Murray 7074431YP

SPACER, Differential (1.25" ID x .423 Wide)

$4.49

$

In Stock, Qty 11

0

15

Murray 7075479YP

KIT, Long Axle (Includes welded Gear and item #14)

$136.99

$

In Stock, only 1 left!

0

16

Murray 7011072YP

WASHER, Thrust

$5.99

$

In Stock, Qty 20+

0

17

Murray 7051584YP

ASSEMBLY, Drive Hex Tube

Note: (Incl. Ref. 18)

$92.99

$

In Stock, only 1 left!

0

18

Murray 7010988YP

WASHER, Nylon

Note: (Included with Ref. No. 17)

$4.49

$

In Stock, Qty 20+

0

19

Murray 7011156YP

O-RING, 5/16"

$4.49

$

In Stock, Qty 20+

0

20

Murray 7011782YP

WASHER, 5/16" Belleville

$4.49

$

In Stock, Qty 19

0

21

Murray 7200128YP

GEAR, 11 Tooth, 10 Pitch

$14.99

$

In Stock, Qty 7

0

22

Murray 7021129YP

SPROCKET, 34T, 3/8P

$20.99

$

In Stock, only 4 left!

0

23

Murray 7010965YP

RING, 1-3/16" External Retaining

$4.49

$

In Stock, Qty 10

0

24

Murray 7010941YP

CHAIN, 46 Pitch (#35 Endless)

$14.99

$

In Stock, Qty 16

0

25

Murray 7021128YP

SPACER, Differential Case

$7.49

$

In Stock, only 4 left!

0

26

Murray 7037279YP

CASE, Transmission

$79.99

$

In Stock, only 2 left!

0

27

Murray 7011024YP

PLUG, 1/2" Cup Insert

$2.99

$

In Stock, Qty 20+

0

28

Murray 7090395YP

WASHER, 5/16" External Tooth Lock
(Superseded to 703138)

$3.99

$

In Stock, Qty 11

0

29

Murray 7090188SM

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

30

Murray 7011042YP

SCREW, 5/16-24 x 2-5/8" Hex Head Cap

$4.49

$

In Stock, only 3 left!

0

31

Murray 7075115YP

BOOT, Oil Seal (Short Axle)

$10.99

$

In Stock, Qty 20+

0

32

Murray 7012332YP

BOOT CLAMP, 2"

$6.99

$

In Stock, Qty 11

0

33

Murray 7023656YP

GRIP, Shift Handle

$5.99

$

In Stock, Qty 18

0

34

Murray 7059212YP

WELDMENT, Shift Handle
(Superseded to 7059212DYP)

$56.99

$

In Stock, Qty 11

0

35

Murray 7091597SM

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

36

Murray 7023914YP

PIN, 1/4 x 1-3/4" Tapered Clevis

$

$

Not available

37

Murray 7031036YP

WASHER, Thrust

$3.99

$

Usually ships in 2-12 days

0

38

Murray 7019245YP

BUSHING, 3/4 x 1.62 Flange (Nylon)

$4.49

$

In Stock, Qty 14

0

39

Murray 7091298YP

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 8

0

40

Murray 7600139YP

KIT, Speed Adjustment Latch Assembly

Note: (Incl. Ref. 40-1, 40-2, 40-3, & 41)

$140.99

$

Usually ships in 2-12 days

0

40-1

RIVET, Shoulder

Note: (Included with Ref. No. 40)

$

$

Not available

40-2

Murray 7041232YP

DETENT, Shift, Weldment
(Superseded to 7041232BMYP)

Note: (Included with Ref. No. 40)

$121.99

$

Usually ships in 2-12 days

0

40-3

Murray 7073218YP

STOP, Reverse

Note: (Included with Ref. No. 40)

$16.99

$

Usually ships in 2-12 days

0

41

Murray 7026292YP

SPRING

Note: (Included with Ref. No. 40)

$11.99

$

In Stock, only 4 left!

0

42

Murray 7090196YP

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

43

Murray 7010754YP

SPRING, Shift Detent

$6.99

$

In Stock, only 2 left!

0

44

Murray 7019246YP

BUSHING, 3/4 x I.O. Flange (Nylon)

$4.49

$

Usually ships in 2-12 days

0

45

Murray 7043201YP

WELDMENT, Arm, Shift Handle (w/grease ftg. Hole)
(Superseded to 7043201BMYP)

$51.99

$

Usually ships in 2-12 days

0

46

Murray 7010817SM

LUBE FITTING, 3/16" Press-In

$4.49

$

In Stock, only 2 left!

0

47

Murray 7091315SM

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

48

Murray 7091297SM

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

49

Murray 7073289YP

LEVER, Over-Ride

$7.49

$

Usually ships in 2-12 days

0

50

Murray 7091595SM

WASHER, .47 x .92 x .065 Flat
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

51

Murray 7015761YP

SHOULDER BOLT, 5/16-18
(Superseded to 703839)

$5.49

$

In Stock, Qty 6

0

--

Murray 7061017YP

GREASE, Transmission, 00 (24 oz. Required)(Not shown)

$

$

Not available

--

Murray 7060411YP

KIT, Differential (4 Pinion)
(Superseded to 7600229YP)

Note: (Incl. Ref. No. 1 through 30)

$1049.99

$

Usually ships in 2-12 days

0

--

Murray 7060412YP

KIT, Long & Short Axle

Note: (Incl. Ref. No. 23, 24 & 25)

$237.99

$

Usually ships in 2-12 days

0
