107.280341 (7800669 A) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2011) Electrical Group - 12.5HP Briggs & Stratton Electric Start Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

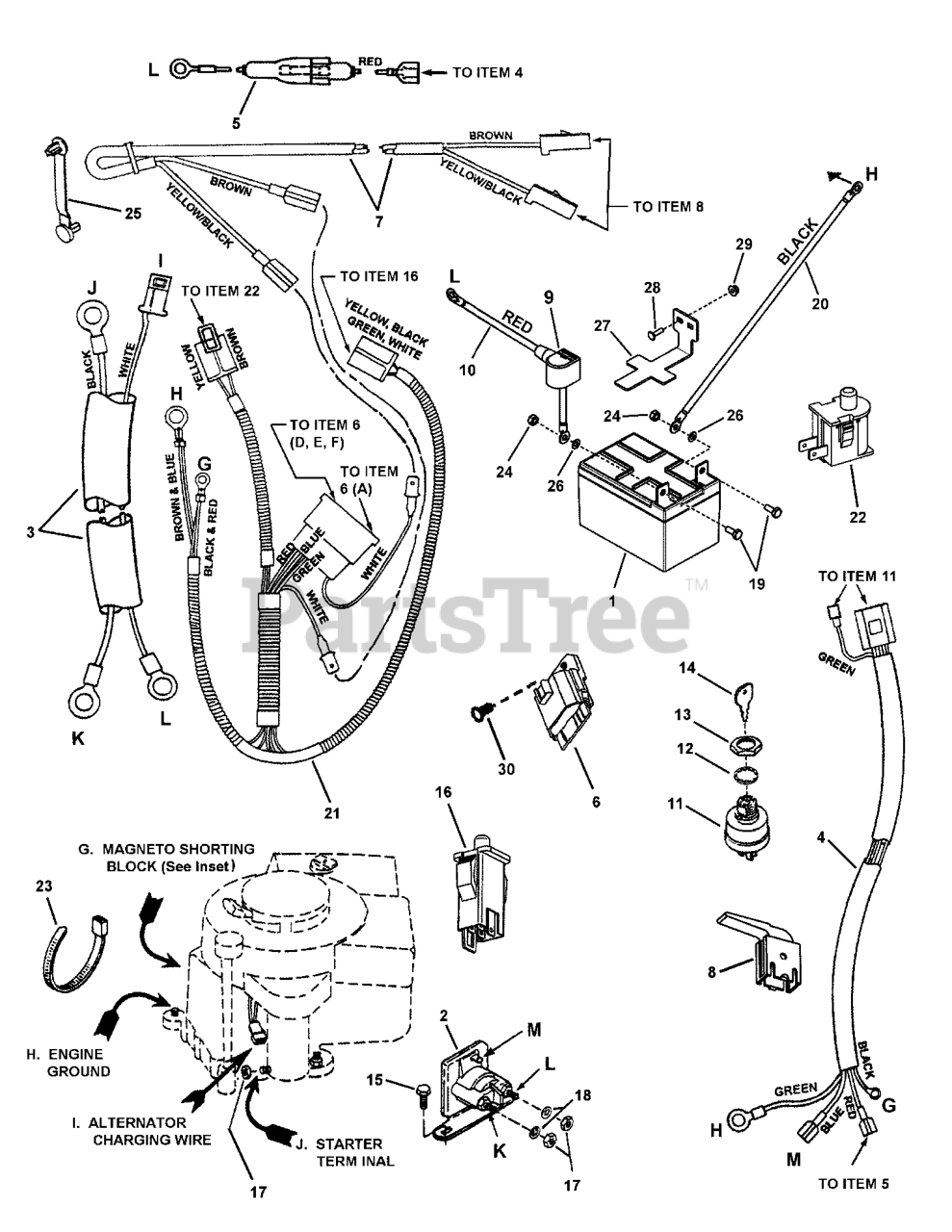

Electrical Group - 12.5HP Briggs & Stratton Electric Start Parts Diagram

  • Title

1

BATTERY KIT, 12V 20HR: 190CCA

$

$

Not available

2

Murray 7075671YP

SOLENOID, Super Trombetta, RER

$31.99

$

In Stock, Qty 14

0

3

Murray 7022788YP

WIRE HARNESS, Starter

$22.99

$

In Stock, only 2 left!

0

4

Murray 7073715YP

WIRE HARNESS, M Series, Electric Start

$

$

Not available

5

Murray 7016168YP

HOLDER, Fuse

$23.99

$

In Stock, only 2 left!

0

--

Murray 7016169YP

FUSE, 10 Amp (Not shown)

$18.99

$

Usually ships in 2-12 days

0

6

Murray 7028606YP

INTERLOCK MODULE, Briggs

$53.99

$

In Stock, only 2 left!

0

7

Murray 7028386YP

HARNESS, (Deck Interlock Wiring)

$14.99

$

In Stock, only 2 left!

0

8

Murray 7018524YP

SWITCH, Deck Interlock (NO)

$19.99

$

In Stock, only 1 left!

0

9

Murray 7012444YP

COVER, Battery Cable
(Superseded to 1677296SM)

$6.49

$

In Stock, only 2 left!

0

10

Murray 7019326YP

WIRE, Positive, 17" Long

$8.99

$

In Stock, Qty 7

0

11

Murray 7073797YP

SWITCH, Ignition, 4 Terminal, Indak

$38.99

$

In Stock, Qty 7

0

12

Murray 7090880YP

WASHER, 5/8" Internal Tooth Lock

$4.49

$

Usually ships in 2-12 days

0

13

Murray 7015438YP

NUT, 5/8-32 Hex

$4.49

$

Usually ships in 2-12 days

0

14

Murray 1737836YP

KEYS, Blister Pk (KIDS+MWRS DON'T MIX) English/Spanish

$20.99

$

In Stock, only 1 left!

0

15

Murray 7090539YP

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

16

Murray 7022886YP

SWITCH, Operator Presence Control (OPC) Traction (NC/NO)

$14.99

$

In Stock, Qty 20+

0

17

Murray 7091576SM

NUT, 1/4-20 Hex, GR 5 or B
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

18

Murray 7090053SM

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 13

0

19

Murray 7027172YP

SCREW, 1/4-20 x 5/8 Hex Head Cap, GR 5, YZ
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

20

Murray 7028027YP

WIRE, Negative, 15" Long, Black

$10.99

$

In Stock, only 2 left!

0

21

Murray 7028607YP

HARNESS, Operator Presence Control (OPC) Wire

$51.99

$

Usually ships in 2-12 days

0

22

Murray 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

23

Murray 7012080SM

CABLE TIE, 7"
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

24

Murray 7090372SM

NUT, 1/4-20 Hex Center Lock, GR 5 or B
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

25

Murray 7014451YP

CABLE TIE, 3.19" long

$3.49

$

Usually ships in 2-12 days

0

26

Murray 7012485YP

RETAINER, 1/4" Bolt, BP
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

27

Murray 7301200BZYP

BRACKET, Battery, RER
(Superseded to 7301200BMYP)

$15.99

$

Usually ships in 2-12 days

0

28

Murray 7900056YP

BOLT, #10-24 x 3/4, Round Head Square Neck Carriage, YZ

$4.49

$

Usually ships in 2-12 days

0

29

Murray 7091079YP

NUT, #10-24 Hex Flange Lock, BZ
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

30

Murray 7091272YP

FASTENER, 1/4" Ratchet

$3.99

$

In Stock, Qty 11

0
