107.280341 (7800669 A) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2011) Engine & Seat Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

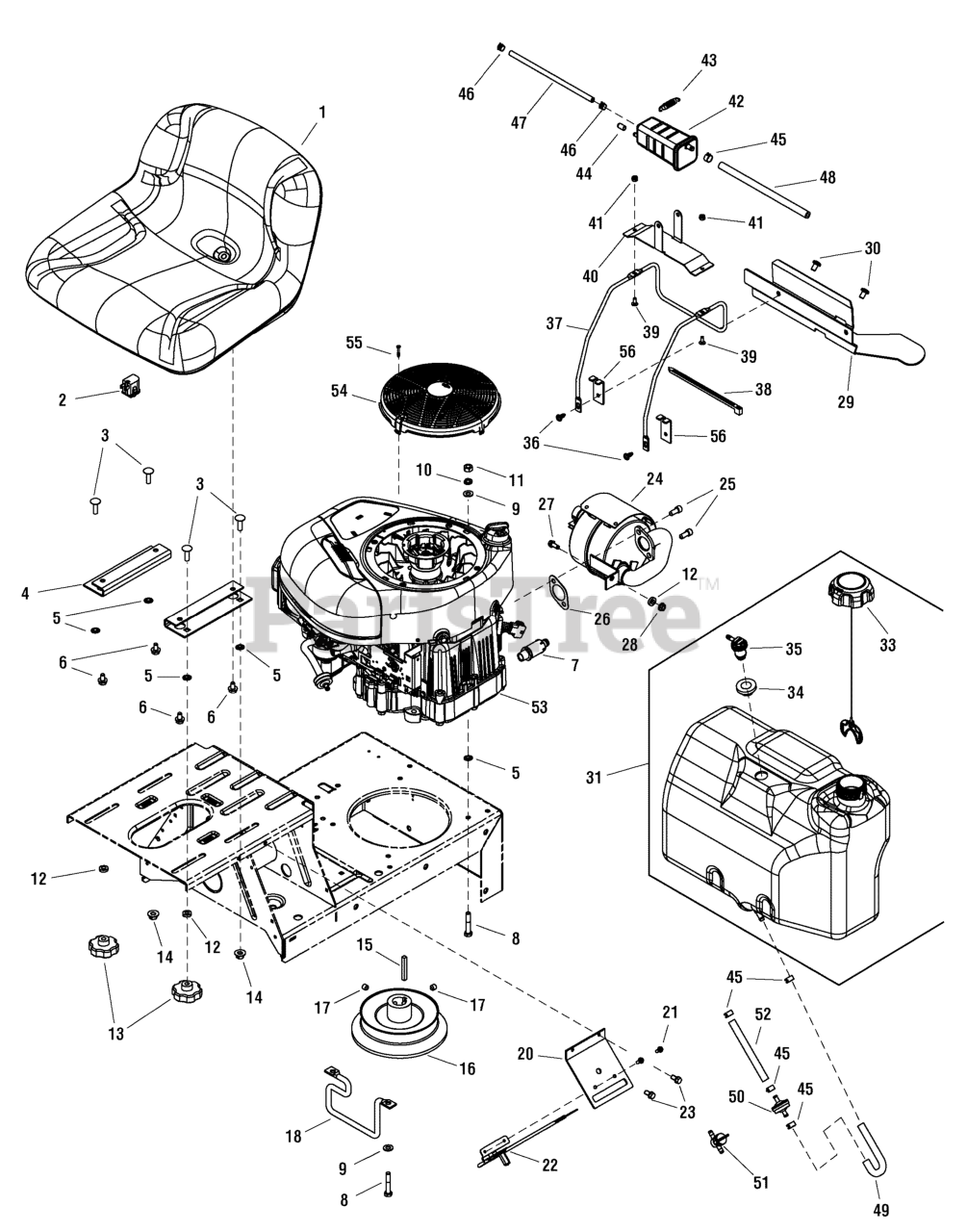

Engine & Seat Group Parts Diagram

  • Title

1

Murray 885172YP

SEAT, 11.58"

$308.99

$

Usually ships in 2-12 days

0

2

Murray 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

3

Murray 7091303YP

BOLT, 5/16-18 x 1" Square Neck Carriage, GR 5 YZ
(Superseded to 703800)

$3.99

$

In Stock, Qty 20+

0

4

Murray 7075018BMYP

PLATE, Seat Adapter

$15.99

$

Usually ships in 2-12 days

0

5

Murray 7011791SM

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

6

Murray 7091038YP

BOLT, 5/16-18 x 1/2" Hex Flange Nyloc

$4.49

$

In Stock, Qty 9

0

7

Murray 7027972SM

OIL VALVE ASSEMBLY

$26.99

$

In Stock, Qty 6

0

8

Murray 7091513YP

SCREW, 5/16-24 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

9

Murray 7090188SM

WASHER, 11/32" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

10

Murray 7091315SM

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

11

Murray 7091297SM

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$4.49

$

In Stock, Qty 17

0

12

Murray 7013849YP

SPACER, .33 x .63 x .156
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

13

Murray 7023735YP

KNOB, Fluted, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

14

Murray 7090951SM

NUT, 5/16-18 Large Flange Center lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 8

0

15

Murray 7010210SM

KEY, 1/4" Square x 2" Long
(Superseded to 703890)

$5.49

$

In Stock, only 3 left!

0

16

Murray 7072658YP

WELDMENT, 5.75" O.D. Drive Disc

$132.99

$

In Stock, Qty 5

0

17

Murray 7090132YP

SET SCREW, HRSS, 3/8-16 x 3/8"

$3.49

$

In Stock, Qty 8

0

18

Murray 7017653YP

BELT GUIDE, 28" (5.74" Bolt Pattern, 4.74" Belt Gap)
(Superseded to 7105172BMYP)

$12.99

$

In Stock, only 1 left!

0

20

Murray 7033470YP

PLATE, Throttle

$26.99

$

Usually ships in 2-12 days

0

21

Murray 7090913SM

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.99

$

In Stock, only 3 left!

0

22

Murray 7022751YP

CONTROL, Throttle (23.6" long) (Briggs Engines)

$27.99

$

In Stock, only 2 left!

0

23

Murray 7090539YP

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

24

Murray 7074453YP

MUFFLER, w/Heat Shield (Briggs 11 thru 17HP)

$112.99

$

In Stock, only 4 left!

0

25

Murray 7091738SM

SET SCREW, 5/16-18 x 3/4" Socket Head, GR8

$4.99

$

In Stock, Qty 10

0

26

Murray 7015352SM

GASKET, Exhaust

$

$

Not available

27

Murray 7090362YP

SCREW, 1/4-20 x 5/8" Hex Washer Head Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, Qty 14

0

28

Murray 7091065SM

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 11

0

29

Murray 7301145BMYP

BRACKET, Mounting Tank, RER

$20.99

$

Usually ships in 2-12 days

0

30

Murray 7091542SM

SCREW, 5/16-18 x 1/2" Pan Head Self-Tap (Torx #T-40)
(Superseded to 703932)

$5.49

$

Usually ships in 2-12 days

0

31

Murray 7105041YP

ASSEMBLY, Fuel Tank, Fluorinated, RER

Note: (Incl. Ref. 33. 34 & 35)

$235.99

$

Usually ships in 2-12 days

0

33

Murray 7102956YP

CAP ASSEMBLY, Ratchet, Non Vented-w/Tether

Note: (Included with Ref. No. 31)

$35.99

$

Usually ships in 2-12 days

0

34

Murray 799624

GROMMET

Note: (Included with Ref. No. 31)

$9.49

$

In Stock, only 3 left!

0

35

Murray 7104638YP

ASSEMBLY, Remote Vent, No Valve

Note: (Included with Ref. No. 31)

$

$

Not available

36

Murray 7900067YP

SCREW, 1/4-20 x .550" Pan Head Self-Tap Torx

$4.49

$

In Stock, Qty 18

0

37

Murray 7104513YP

HOLDER, Fuel Tank, RER

$40.99

$

Usually ships in 2-12 days

0

38

Murray 7012080SM

CABLE TIE, 7"
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

39

Murray 7091085YP

BOLT, #10-24 x 1/2" Flat Head Square Neck, YZ

$4.49

$

In Stock, Qty 20+

0

40

Murray 7301174BMYP

BRACKET, Carbon Canister

$15.99

$

Usually ships in 2-12 days

0

41

Murray 7091290SM

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

42

Murray 7104634YP

CANISTER, Carbon 140CC - RER
(Superseded to 1687882)

$86.99

$

Usually ships in 2-12 days

0

43

Murray 7104930YP

SPRING, Tension

$4.99

$

Usually ships in 2-12 days

0

44

Murray 7023606YP

CAP, Vinyl

$3.99

$

In Stock, only 2 left!

0

45

Murray 7029900SM

CLAMP, .490 x .31
(Superseded to 791850)

$3.49

$

In Stock, Qty 12

0

46

Murray 7105075YP

CLAMP, Hose - CTL

$7.49

$

Usually ships in 2-12 days

0

47

Murray 7200138YP

HOSE, Vapor, 5MM ID x 9 MM OD x 8.5"

$13.99

$

Usually ships in 2-12 days

0

48

Murray 7200111YP

HOSE, Fuel, Low Perm, 1/4" ID x 9"

$9.49

$

In Stock, only 1 left!

0

49

Murray 796491

HOSE, Fuel

Note: (Cut to Length)

$21.99

$

In Stock, only 2 left!

0

50

Murray 7014359YP

FILTER, Fuel (In-Line)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

51

Murray 7024507YP

VALVE, Fuel Shut-Off (Accessory)
(Superseded to 7034212YP)

$33.99

$

In Stock, only 3 left!

0

52

Murray 7073240SM

HOSE, Fuel, 5" long
(Superseded to 791866)

$24.99

$

Usually ships in 2-12 days

0

53

Murray 219977-3130-G5

* ENGINE, 12.5HP, B&S W/ OIL FILTER, RER

$

$

Currently unavailable

54

Murray 799358

COVER, Static

$50.99

$

In Stock, only 2 left!

0

55

Murray 799359

SCREW

$4.99

$

In Stock, only 2 left!

0

56

Murray 7301224BZYP

BRACKET, Tank Brace

$15.99

$

Usually ships in 2-12 days

0
