107.280341 (7800669 A) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2011) Main Case, LH Fender & Yoke Lift Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

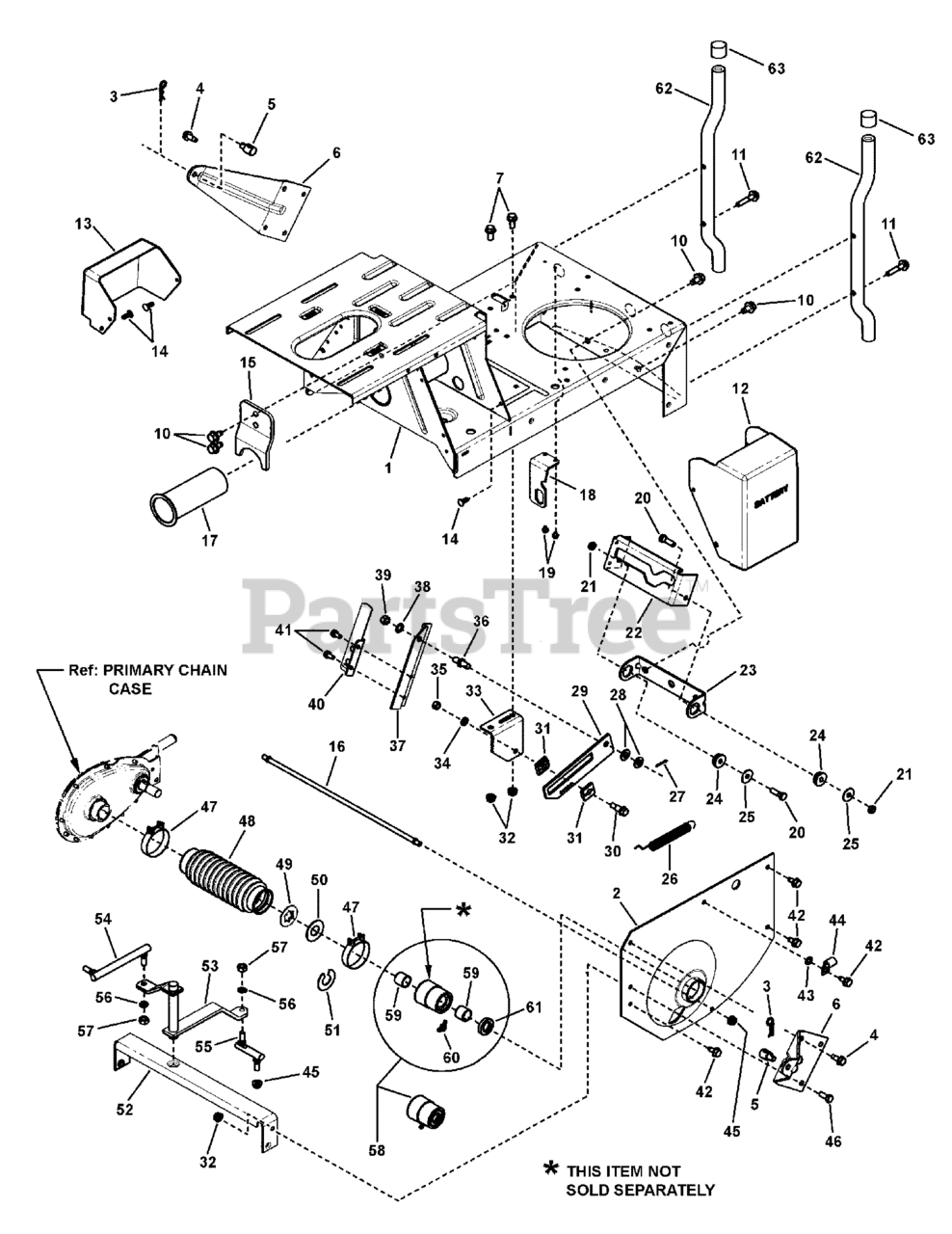

Main Case, LH Fender & Yoke Lift Group Parts Diagram

  • Title

1

Murray 7053697YP

WELDMENT, Main Case

$283.99

$

Usually ships in 2-12 days

0

2

Murray 7037285YP

FENDER, Left Hand, 1.628" I. D. Hole
(Superseded to 7301302YP)

$

$

Not available

3

Murray 7091503SM

HAIR PIN, 3/32 x 1-1/2"

$3.99

$

In Stock, Qty 20+

0

4

Murray 7090793YP

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap

$3.49

$

In Stock, only 3 left!

0

5

Murray 7028200SM

SWIVEL, Adjustable

$13.99

$

In Stock, only 1 left!

0

6

Murray 7034299YP

WING, Rear

$20.99

$

Usually ships in 2-12 days

0

7

Murray 7090595SM

BOLT, 5/16-18 x 3/4" Hex Flange Lock, GR 5
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

10

Murray 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap

$4.49

$

Usually ships in 2-12 days

0

11

Murray 7091506YP

SCREW, 5/16-18 x 1-1/2" Hex Washer Self-Tap
(Superseded to 704318)

$4.49

$

In Stock, only 3 left!

0

12

Murray 7028990YP

COVER, Battery

$34.99

$

In Stock, Qty 5

0

13

Murray 7073268YP

COVER, Solenoid

$20.99

$

In Stock, only 3 left!

0

14

Murray 7091272YP

FASTENER, 1/4" Ratchet

$3.99

$

In Stock, Qty 11

0

15

Murray 7074210YP

BRACKET, Belt Adjuster

$16.99

$

Usually ships in 2-12 days

0

16

Murray 7011070YP

TIE ROD, 5/16-24 thread

$20.99

$

In Stock, only 1 left!

0

17

Murray 7074650YP

BUSHING, Pivot

$12.99

$

In Stock, Qty 16

0

18

Murray 7073735YP

BRACKET, Switch

$12.99

$

Usually ships in 2-12 days

0

19

Murray 7090981YP

SCREW, #10-32 x 1/4" Hex Washer Self-Tap
(Superseded to 704061)

$3.99

$

In Stock, Qty 20+

0

20

Murray 7090238SM

SCREW, 5/16-24 x 1" Hex Head Cap, GR 5
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

21

Murray 7011201YP

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

$3.49

$

In Stock, Qty 20+

0

22

Murray 7046162YP

LIFT, Yoke
(Superseded to 7046162BMYP)

$22.99

$

In Stock, Qty 8

0

23

Murray 7033291YP

COLLAR, Yoke

$56.99

$

In Stock, only 1 left!

0

24

Murray 7011048YP

BEARING, Yoke

$4.49

$

In Stock, Qty 20+

0

25

Murray 7011763SM

FENDER WASHER, 5/16"

$4.49

$

In Stock, Qty 7

0

26

Murray 7013885YP

SPRING, Clutch & Brake

$5.99

$

In Stock, Qty 12

0

27

Murray 7090037YP

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

28

Murray 7090122YP

WASHER, 3/8" Flat SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

29

Murray 7047190YP

BRACKET, Slide
(Superseded to 7047190BMYP)

$12.99

$

Usually ships in 2-12 days

0

30

Murray 7014664SM

BOLT, 5/16-18 Shoulder

$1.99

$

Usually ships in 2-12 days

0

31

Murray 7014663YP

SLIDE HALF

$4.49

$

In Stock, only 2 left!

0

32

Murray 7090585MA

NUT, 5/16-18 Hex Flange Lock, GR 5

$3.99

$

In Stock, Qty 7

0

33

Murray 7047189YP

BRACKET, Drive Support
(Superseded to 7047189BMYP)

$12.99

$

Usually ships in 2-12 days

0

34

Murray 7090187SM

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

35

Murray 7091511SM

NUT, 5/16-18 Hex, GR 5 or B

$3.49

$

In Stock, Qty 20+

0

36

Murray 7015464YP

STUD, Clutch Link, 3/8-24 thread

$7.49

$

Usually ships in 2-12 days

0

37

Murray 7073733YP

ARM, Yoke

$9.49

$

Usually ships in 2-12 days

0

38

Murray 7090390SM

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, Qty 10

0

39

Murray 7091630SM

NUT, 3/8-24 Hex, GR 5 or B
(Superseded to 703895)

$4.49

$

In Stock, Qty 10

0

40

Murray 7600141YP

KIT, Leaf Spring Assembly

$59.99

$

Usually ships in 2-12 days

0

41

Murray 7090539YP

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

42

Murray 7090361YP

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

43

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

44

Murray 7012652YP

CLIP, Wire

$3.99

$

Usually ships in 2-12 days

0

45

Murray 7010969YP

NUT, 5/16-24 Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, only 4 left!

0

46

Murray 7090206YP

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

47

Murray 7012332YP

BOOT CLAMP, 2"

$6.99

$

In Stock, Qty 19

0

48

Murray 7075115YP

BOOT, Rear Axle, Thick Flange

$10.99

$

In Stock, Qty 20+

0

49

Murray 7011072YP

WASHER, Thrust

$5.99

$

In Stock, Qty 20+

0

50

Murray 7011071YP

THRUST WASHER

$3.99

$

In Stock, Qty 20+

0

51

Murray 7012271YP

WASHER, Shim
(Superseded to 7011071YP)

Note: (or quantity as required)

$3.99

$

In Stock, Qty 20+

0

52

Murray 7033799YP

CROSS BRACE

$15.99

$

Usually ships in 2-12 days

0

53

Murray 7041384YP

WELDMENT, Shift Arm
(Superseded to 7041384BMYP)

$51.99

$

Usually ships in 2-12 days

0

54

Murray 7023676YP

SHIFT LINK, Long (5/16-24 both ends)

$34.99

$

In Stock, only 2 left!

0

55

Murray 7011018YP

SHIFT LINK, Short (5/16-24 thread)

$18.99

$

In Stock, only 1 left!

0

56

Murray 7091315SM

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

57

Murray 7091297SM

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

58

Murray 7052827YP

ASSEMBLY, DX Bearing

$121.99

$

In Stock, only 2 left!

0

59

Murray 7074182YP

BEARING, DX

$5.99

$

In Stock, Qty 12

0

60

Murray 7013324YP

FITTING, Lube, 45 Degree, 3/16" w/Hex (long shank)

$7.99

$

In Stock, Qty 7

0

61

Murray 7074500YP

SEAL, Axle (Dust/Grease)

$

$

Not available

62

Murray 7030798ZYP

BUMPER, Rear
(Superseded to 7030798BMYP)

$32.99

$

In Stock, Qty 9

0

63

Murray 7010153YP

CAP, Bumper

$4.49

$

In Stock, Qty 15

0
