107.280341 (7800669 A) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2011) Wheels, Front & Rear Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

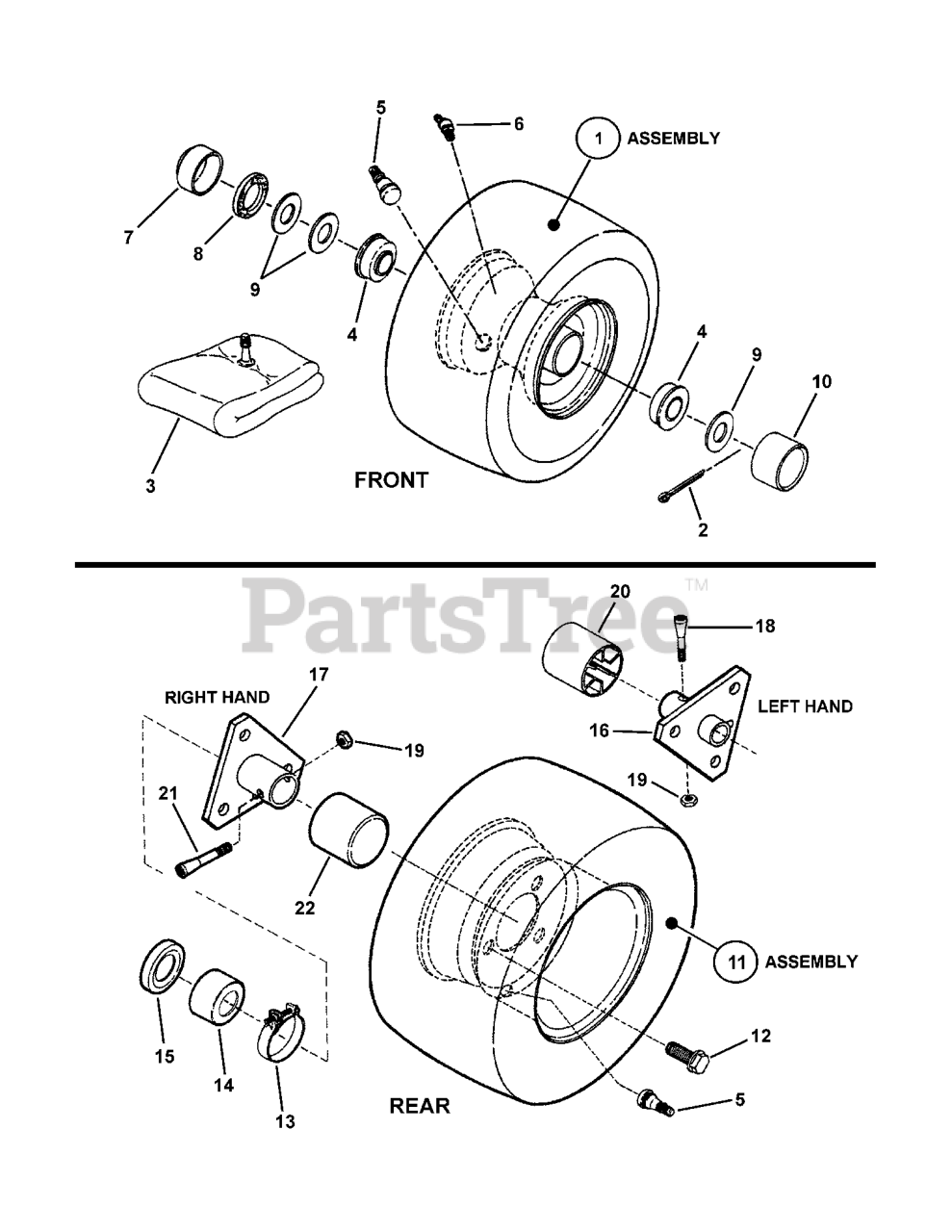

Wheels, Front & Rear Group Parts Diagram

  • Title

1

Murray 7058943YP

ASSEMBLY, Front Tire & Rim (11.0") (Complete)

Note: (Includes items 5 & 6)

$102.99

$

In Stock, Qty 9

0

2

Murray 7091516SM

COTTER PIN, 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 20+

0

3

Murray 7010821YP

INNER TUBE, (For 4.10/3.50 x 4 Tire)

$18.99

$

In Stock, Qty 9

0

4

Murray 7011807YP

BALL BEARING, Flange (3/4" I.D.)

$7.99

$

In Stock, Qty 20+

0

5

Murray 7012234SM

VALVE STEM, Snap In

$6.49

$

In Stock, only 2 left!

0

6

Murray 7014669YP

LUBE Fitting

$4.49

$

In Stock, only 2 left!

0

7

Murray 7031038YP

CAP, Dust

$4.99

$

In Stock, Qty 20+

0

8

Murray 7011032YP

SEAL, Felt

$4.99

$

In Stock, Qty 20+

0

9

Murray 7010935SM

WASHER, .77 x 1.13 x .06 Flat

$3.99

$

In Stock, Qty 20+

0

10

Murray 7103979YP

HUB CAP

$4.49

$

Usually ships in 2-12 days

0

11

Murray 7058951YP

ASSEMBLY, Rear Tire & Rim

Note: (Includes Item 5)

$186.99

$

Usually ships in 2-12 days

0

12

Murray 7091502YP

BOLT, 1/2-20 x 3/4" Lug, GR 5
(Superseded to 703431)

$4.99

$

In Stock, Qty 5

0

13

Murray 7012332YP

CLAMP, Right Hand (for 2" Hose)

$6.99

$

In Stock, Qty 11

0

14

Murray 7031732YP

CAP, Seal RH 1.0" ID x 1.67" OD

$6.49

$

In Stock, Qty 20+

0

15

Murray 7011817YP

SEAL, 1.22" ID x 1.875" OD

$5.49

$

In Stock, Qty 6

0

16

Murray 7040434YP

HUB, Rear Wheel L. H. (Weldment)

$37.99

$

In Stock, Qty 11

0

17

Murray 7040433YP

HUB, Rear Wheel R. H. (Weldment)

$37.99

$

Usually ships in 2-12 days

0

18

Murray 7011035YP

AXLE BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)

$4.99

$

In Stock, Qty 20+

0

19

Murray 7011201YP

NUT, Wheel Bolt 5/16-24 Hex Center Lock
(Superseded to 703459)

$3.49

$

In Stock, Qty 20+

0

20

Murray 7103980YP

HUBCAP, L. H. (Long Axle)

$6.49

$

Usually ships in 2-12 days

0

21

Murray 7011013YP

WHEEL BOLT, 5/16-24 x 2" Tapered (Right Hand)

$6.49

$

In Stock, Qty 20+

0

22

Murray 7103981YP

HUBCAP

$5.99

$

Usually ships in 2-12 days

0
