107.287910 (7800340) - Craftsman ZTS7500 Series 50" Zero-Turn Mower, 26hp Kohler (2008) Electrical Group (7500990) Parts Diagram

ZTS7500 Series 50" Zero-Turn Mower, 26hp Kohler

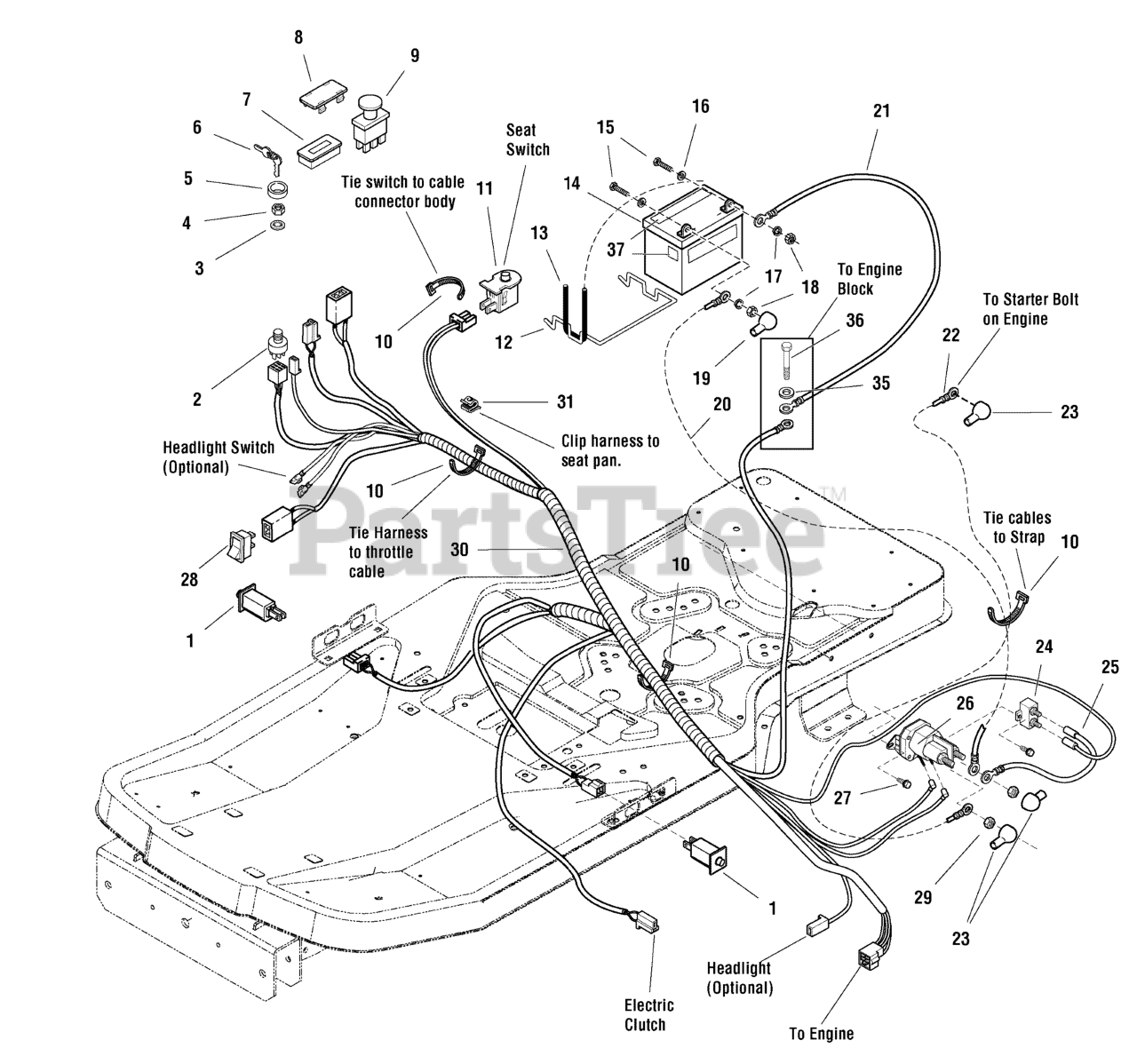

Electrical Group (7500990) Parts Diagram

  • Title
1

Murray Part# 1732006SM

SWITCH, Push Button
(Superseded to 7022886YP)
Usually ships in 1 day

$

$12.06

0

2

Murray Part# 1686734SM

SWITCH ASSEMBLY, Ignition, 5/8-32 6 Pin Indak

Note: (Includes Ref. Nos. 3, 4 & 5)

Usually ships in 1 day

$

$29.62

0

3

Murray Part# 1960547SM

LOCKWASHER, Internal Tooth, 5/8 Thin
Usually ships in 1 day

$

$3.12

0

4

Murray Part# 1717549SM

NUT, Hex Flange, 5/8-32 IGN SW Die Cast
Usually ships in 1 day

$

$8.04

0

5

Murray Part# 1717550SM

COVER, Ignition Switch
Usually ships same day

Not available

$

$

6

Murray Part# 1717163SM

KEYS

Note: (Set of Two)

Usually ships in 1 day

$

$6.92

0

7

Murray Part# 1731185SM

HOUR METER, No Alarms
Usually ships in 6 to 12 days

$

$50.30

0

8
Usually ships in 1 day

$

$5.24

0

9

Murray Part# 1722887SM

SWITCH, PTO Push/Pull Symbols
Usually ships in 1 day

$

$29.06

0

10

Murray Part# 1701011SM

TIE, Self Locking, .184 WD 7.31 LG
Usually ships in 6 to 12 days

$

$4.57

0

11

Murray Part# 1732005SM

SWITCH, Push Button
(Superseded to 7023354YP)
Usually ships in 1 day

$

$11.17

0

12

Murray Part# 1667805SM

BRACE, Battery, .19 DIA Wire
Usually ships in 1 day

$

$17.99

0

13

Murray Part# 1665872SM

STRAP, Black Rubber, .19 SQ 7.88 OD Battery
Usually ships in 1 day

$

$8.93

0

14

Part# -----

BATTERY, 12 Volt 6 Cell 340CCA
Usually ships same day

Not available

$

$

15

Murray Part# 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5
Usually ships in 1 day

$

$3.12

0

16

Murray Part# 2821319SM

WASHER, 1/4, .27 ID x .62 OD x .05 THK
Usually ships same day

Not available

$

$

17

Murray Part# 2816964SM

LOCKWASHER, Spring, 1/4
Usually ships same day

Not available

$

$

18

Murray Part# 2816622SM

NUT, Hex, 1/4-20 NC-2B
(Superseded to 703127)
Usually ships in 1 day

$

$2.67

0

19

Murray Part# 1677296SM

BOOT, Insulator, Red PVC Warning
Usually ships in 1 day

$

$5.24

0

20

Murray Part# 1716549SM

CABLE, # 6 x 10 LG, Red Two-Ring Terminals
(Superseded to 1752685YP)
Usually ships in 1 day

$

$8.82

0

21

Murray Part# 1713163SM

CABLE, # 6 X 26 LG, Two-Ring Terminals
Usually ships in 1 day

$

$16.54

0

22

Murray Part# 1727668SM

CABLE, # 6 x 15 LG, Two-Ring Terminals
Usually ships in 6 to 12 days

$

$8.49

0

23

Murray Part# 1724588SM

COVER, Terminal Red PVC
Usually ships in 6 to 12 days

$

$4.58

0

24

Murray Part# 1665238SM

BREAKER, Circuit, 12 Volt 20 AMP
Usually ships in 1 day

$

$12.29

0

25

Murray Part# 1665237SM

WIRE, 12 Gauge, 7.9 LG
Usually ships in 1 day

$

$8.93

0

26

Murray Part# 7075622SM

SOLENOID, Two Terminals, Trombetta
Usually ships in 1 day

$

$23.47

0

27

Murray Part# 1925003SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
Usually ships in 1 day

$

$2.90

0

28

Murray Part# 1734141SM

SWITCH, Electric Height of Cut
Usually ships in 1 day

$

$36.88

0

29

Murray Part# 2860750SM

NUT, Hex Keps, 5/16-24
Usually ships in 6 to 12 days

$

$2.67

0

30

Murray Part# 1734127SM

HARNESS, Wiring
Usually ships same day

Not available

$

$

31
Usually ships in 1 day

$

$3.68

0

35

Murray Part# 7091294SM

WASHER, Flat, .28 x .63 x .06
(Superseded to 703332)
Usually ships in 1 day

$

$3.57

0

36

Murray Part# 7091122SM

HWHST, 1/4-20 x 1/2
(Superseded to 704130)
Usually ships in 1 day

$

$2.90

0

37

Murray Part# 1734375SM

DECAL, Diehard
Usually ships in 6 to 12 days

$

$9.62

0
