107-7652 - Toro Two-Bearing Conversion Kit for DFS Bagger for 200 Series Z Master TWO-BEARING CONVERSION KIT ASSEMBLY Parts Diagram

Two-Bearing Conversion Kit for DFS Bagger for 200 Series Z Master

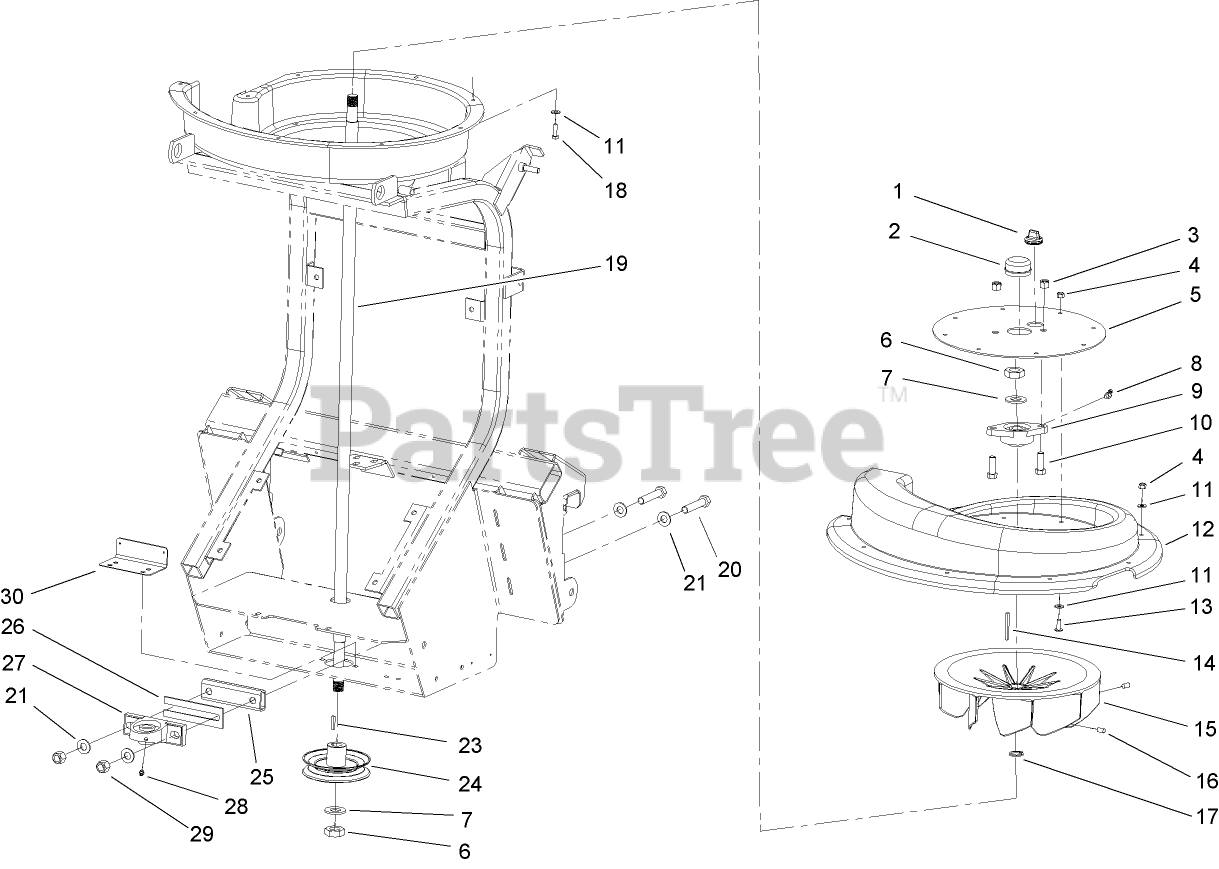

TWO-BEARING CONVERSION KIT ASSEMBLY Parts Diagram

  • Title

1

Toro 105-2438

PLUG

$18.99

$

Usually ships in 3-6 days

0

2

Toro 106-7147

CAP-GREASE

$35.99

$

Usually ships in 3-6 days

0

3

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 106-7128-03

COVER-SCROLL

$87.99

$

Usually ships in 3-6 days

0

6

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

7

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 15

0

8

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

Usually ships in 3-6 days

0

9

Toro 106-7126

BEARING-FLANGE

$90.99

$

Usually ships in 3-6 days

0

10

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 106-8950

SCROLL-TOP

$262.99

$

Usually ships in 3-6 days

0

13

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

14

Toro 105-9716

KEY-SQUARE

$8.49

$

In Stock, only 1 left!

0

15

Toro 106-8951

FAN-BALANCING

$

$

Not available

16

Toro 3246-4

SCREW-SET

$0.99

$

Usually ships in 3-6 days

0

17

Toro 32151-33

RING-RETAINING, Ext

$3.99

$

In Stock, only 2 left!

0

18

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 106-7149

SHAFT-FAN

$

$

Not available

20

Toro 325-10

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

21

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 5-1077

KEY-SQUARE

$7.49

$

In Stock, Qty 8

0

24

Toro 106-8976

PULLEY-V

$358.99

$

Usually ships in 3-6 days

0

25

Toro 107-7653-03

SPACER

$

$

Not available

26

Toro 106-8964-03

SPACER-BEARING (Use as required to tension belt.)

$

$

Not available

27

Toro 106-7119

BEARING

$125.99

$

Usually ships in 3-6 days

0

28

Toro 302-55

FITTING-GREASE

$3.99

$

Usually ships in 3-6 days

0

29

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

30

Toro 107-7654

TEMPLATE, BASE FRAME

$

$

Not available
