107-8093 - Toro Z400 Roll-Over Protection System Kit ROLL-OVER-PROTECTION-SYSTEM ASSEMBLY NO. 107-8093 Parts Diagram

Z400 Roll-Over Protection System Kit

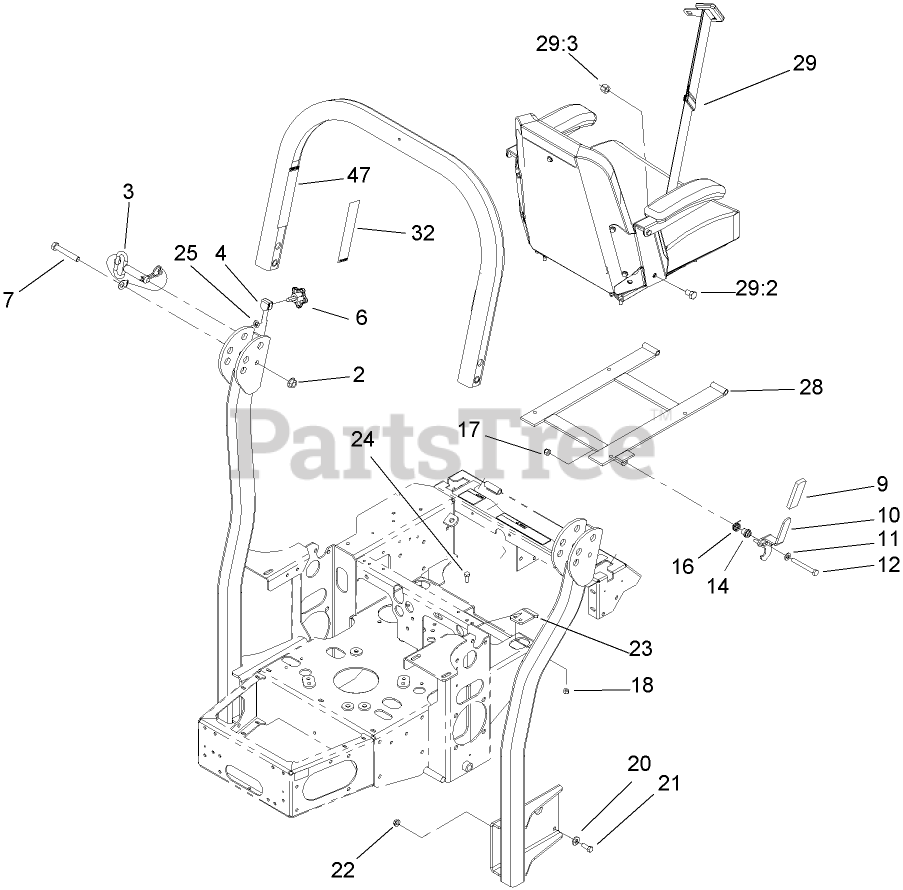

ROLL-OVER-PROTECTION-SYSTEM ASSEMBLY NO. 107-8093 Parts Diagram

  • Title

2

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 14

0

3

Toro 103-4553

PIN-FOLD, ROPS

$79.99

$

In Stock, only 2 left!

0

4

Toro 107-3124

CLIP

$5.49

$

In Stock, only 2 left!

0

6

Toro 106-0887

KNOB

$8.99

$

In Stock, only 1 left!

0

7

Toro 325-13

SCREW-HH

$0.99

$

In Stock, Qty 17

0

9

Toro 62-9130

GRIP-HANDLE

$8.49

$

Usually ships in 3-6 days

0

10

Toro 107-3083

LATCH ASM

$31.99

$

Usually ships in 3-6 days

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

14

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

16

Toro 107-0076

SPRING-TORSION

$14.99

$

Usually ships in 3-6 days

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

21

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 107-3059

CATCH-LATCH, SEAT

$

$

Not available

24

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

28

Toro 107-3052-03

SEAT SUPPORT FRAME ASM

$368.99

$

Usually ships in 3-6 days

0

29

Toro 103-4469

SEATBELT KIT

$177.99

$

Usually ships in 3-6 days

0

29:2

Toro 3212-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

29:3

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

32

Toro 107-3069

DECAL-WARNING

$23.99

$

Usually ships in 3-6 days

0

47

Toro 107-2102

DECAL-WARNING, FOLDING ROPS

$10.99

$

Usually ships in 3-6 days

0
