107.99021 (7600124) - Craftsman Triple Bagger Triple Bagger Parts Diagram

Triple Bagger

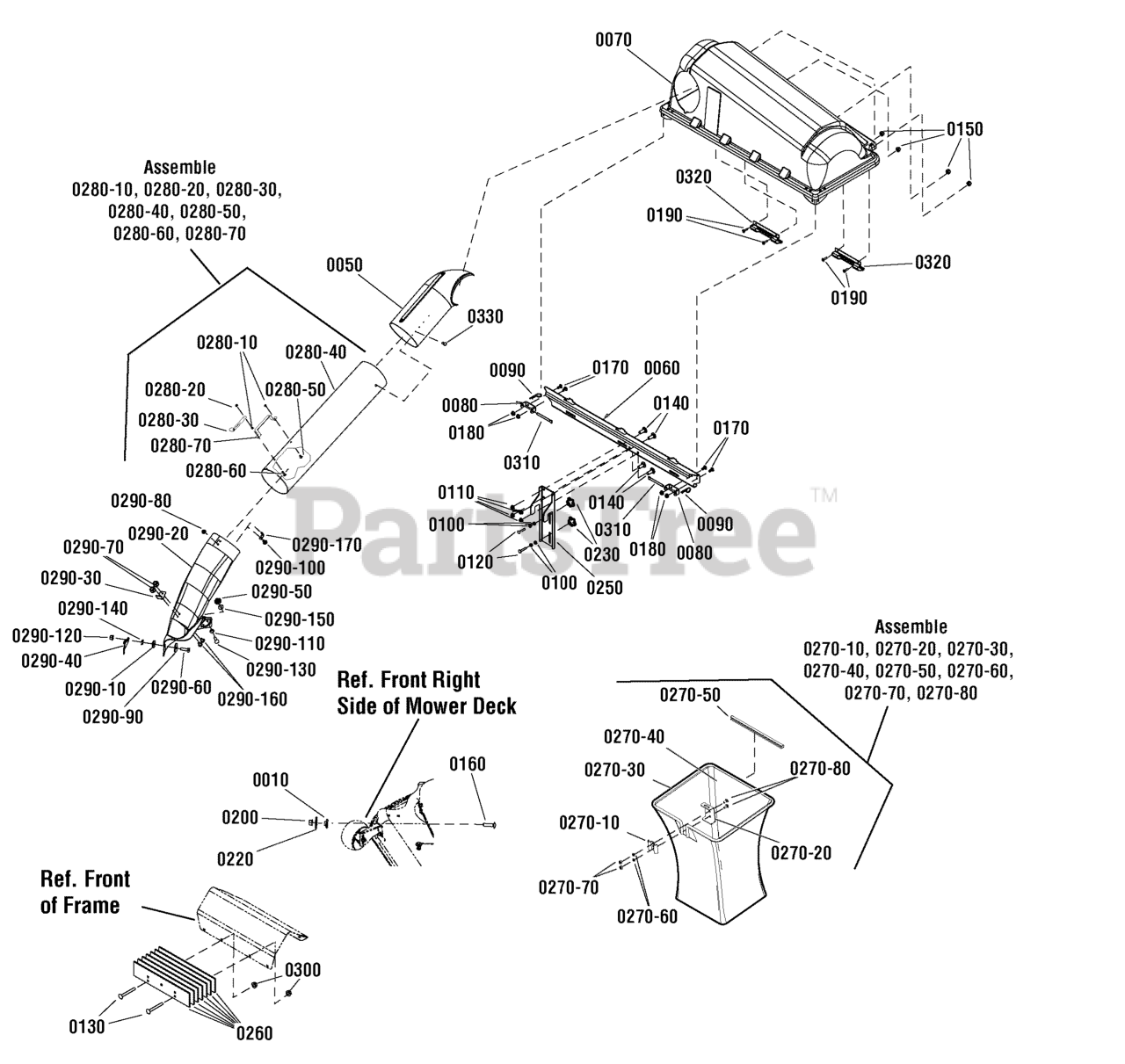

Triple Bagger Parts Diagram

  • Title

0010

Murray 1723244SM

SPACER, Pivot

$8.49

$

Usually ships in 2-12 days

0

0050

Murray 1733885SM

ELBOW, Upper Tube

$109.99

$

Usually ships in 2-12 days

0

0060

Murray 1736080AYP

CROSS SUPPORT

$197.99

$

Usually ships in 2-12 days

0

0070

Murray 1736101YP

ASSEMBLY, Cover and Screen

$695.99

$

Usually ships in 2-12 days

0

0080

Murray 1736886AYP

PIVOT, Hinge
(Superseded to 1736886BMYP)

$35.99

$

Usually ships in 2-12 days

0

0090

Murray 1918196SM

PIN, Quick, 1-7/8 Lg
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 7

0

0100

Murray 1927557SM

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 8

0

0110

Murray 1928352SM

NUT, Hex Flange 3/8-16 Whiz Lock Large
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

0120

Murray 1931338SM

CARRIAGE BOLT, Short Neck, 5/16-18 x 1-3/4
(Superseded to 703175)

$3.99

$

Usually ships in 2-12 days

0

0130

Murray 1931342SM

CARRIAGE BOLT, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.99

$

Usually ships in 2-12 days

0

0140

Murray 1931350SM

CARRIAGE BOLT, 3/8-16 x 1 G5
(Superseded to 703815)

$4.49

$

In Stock, Qty 6

0

0150

Murray 1933896SM

NUT, Hex Lock 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

0160

Murray 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, only 2 left!

0

0170

Murray 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

0180

Murray 1960294SM

NUT, Hex Flange Whiz Lock Small, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 11

0

0190

Murray 1960404SM

SCREW, Truss Head Phillips, #10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

0200

Murray 1960686SM

NUT, Hex Flange ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0220

Murray 7092063YP

WASHER, Bellville, .32 x 1.40 x.1 YZ
(Superseded to 703939)

$7.49

$

Usually ships in 2-12 days

0

0230

Murray 7102990YP

KNOB, Handle, 5 Prong
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0250

Murray 7301143BMYP

BRACKET, Triple Bagger, Rear Bumper

$172.99

$

Usually ships in 2-12 days

0

0260

Murray 7301153BMYP

BALLAST, Weight

$54.99

$

Usually ships in 2-12 days

0

0270

HANGER ASSEMBLY, Grass Bag

$

$

Not available

0270-10

Murray 1672023ASM

CLAMP, 1/2" Diameter Rod

$11.99

$

Usually ships in 2-12 days

0

0270-20

Murray 1703807ASM

HANGER, Grass Bag

$21.99

$

Usually ships in 2-12 days

0

0270-30

Murray 1733517SM

HOOP, Bag

$81.99

$

Usually ships in 2-12 days

0

0270-40

Murray 1733695SM

BAG, Grass Catcher, Cloth

$148.99

$

Usually ships in 2-12 days

0

0270-50

Murray 1733709SM

EDGING, 12 Long PVC

$17.99

$

Usually ships in 2-12 days

0

0270-60

Murray 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

0270-70

Murray 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

0270-80

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0280

TUBE ASSEMBLY, Grass Catcher

$

$

Not available

0280-10

Murray 1928372SM

NUT, Hex, KEPS, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, only 2 left!

0

0280-20

Murray 1930642SM

NUT, Hex Flange, 1/4-20 Top Lock, Small
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

0280-30

Murray 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

0280-40

Murray 7104383YP

TUBE, Clear, 34"

$168.99

$

Usually ships in 2-12 days

0

0280-50

Murray 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0280-60

Murray 004X71MA

SCREW, Machine, 1/4-20 x 1

$4.99

$

In Stock, only 4 left!

0

0280-70

Murray 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 3 left!

0

0290

TRIPLE BAGGER, Boot Assembly

$

$

Not available

0290-10

Murray 1708511SM

SPACER, 5/16 ID x 1 OD x 1/4

$7.99

$

In Stock, only 1 left!

0

0290-20

Murray 1734776YP

BOOT, Bagging, 52 Mower

$284.99

$

Usually ships in 2-12 days

0

0290-30

Murray 1737764AYP

UPSTOP, Deflector

$35.99

$

Usually ships in 2-12 days

0

0290-40

Murray 1737765AYP

LATCH, Boot

$34.99

$

Usually ships in 2-12 days

0

0290-50

Murray 1738295YP

KNOB, ESNA, 1/4-20

$7.99

$

In Stock, only 1 left!

0

0290-60

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

0290-70

Murray 1928372SM

NUT, Hex, KEPS, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, only 2 left!

0

0290-80

Murray 1930642SM

NUT, Hex Flange, 1/4-20 Top Lock, Small
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

0290-90

Murray 1960044SM

WASHER, Plain, 21/64 x 1-1/4

$4.49

$

In Stock, Qty 16

0

0290-100

Murray 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

0290-110

Murray 1960685SM

NUT, Hex KEPS, 1/4-20 Conical Washer
(Superseded to 703061)

$3.99

$

In Stock, Qty 11

0

0290-120

Murray 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0290-130

Murray 1960698SM

CARRIAGE BOLT, 1/4-20 X 1, G5
(Superseded to 703584)

$3.99

$

In Stock, Qty 10

0

0290-140

Murray 7026257MA

WASHER, .531 x .781 3-Wave

$4.49

$

In Stock, Qty 8

0

0290-150

Murray 7091627YP

WASHER, Flat, 9/32 X 1 X 1/8

$4.99

$

In Stock, Qty 11

0

0290-160

Murray 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0290-170

Murray 054563MA

PIN, Latch

$23.99

$

In Stock, only 1 left!

0

0300

Murray 015X88MA

NUT, Hex Flange Centerlock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0310

Murray 054407ZMA

PIN, Cover Hinge, 3/8 Dia.x 3-3/4

$14.99

$

In Stock, only 3 left!

0

0320

Murray 054537MA

HANDLE, Plastic

$19.99

$

In Stock, only 1 left!

0

0330

Murray 26X239MA

SCREW, 1/4 x 3/4

$4.49

$

Usually ships in 2-12 days

0
