10725 B - Lawn-Boy Walk-Behind Mower (SN: 039000001 - 039999999) (1993) DECK, MUFFLER COVER, BLADE & WHEELS Parts Diagram

Walk-Behind Mower

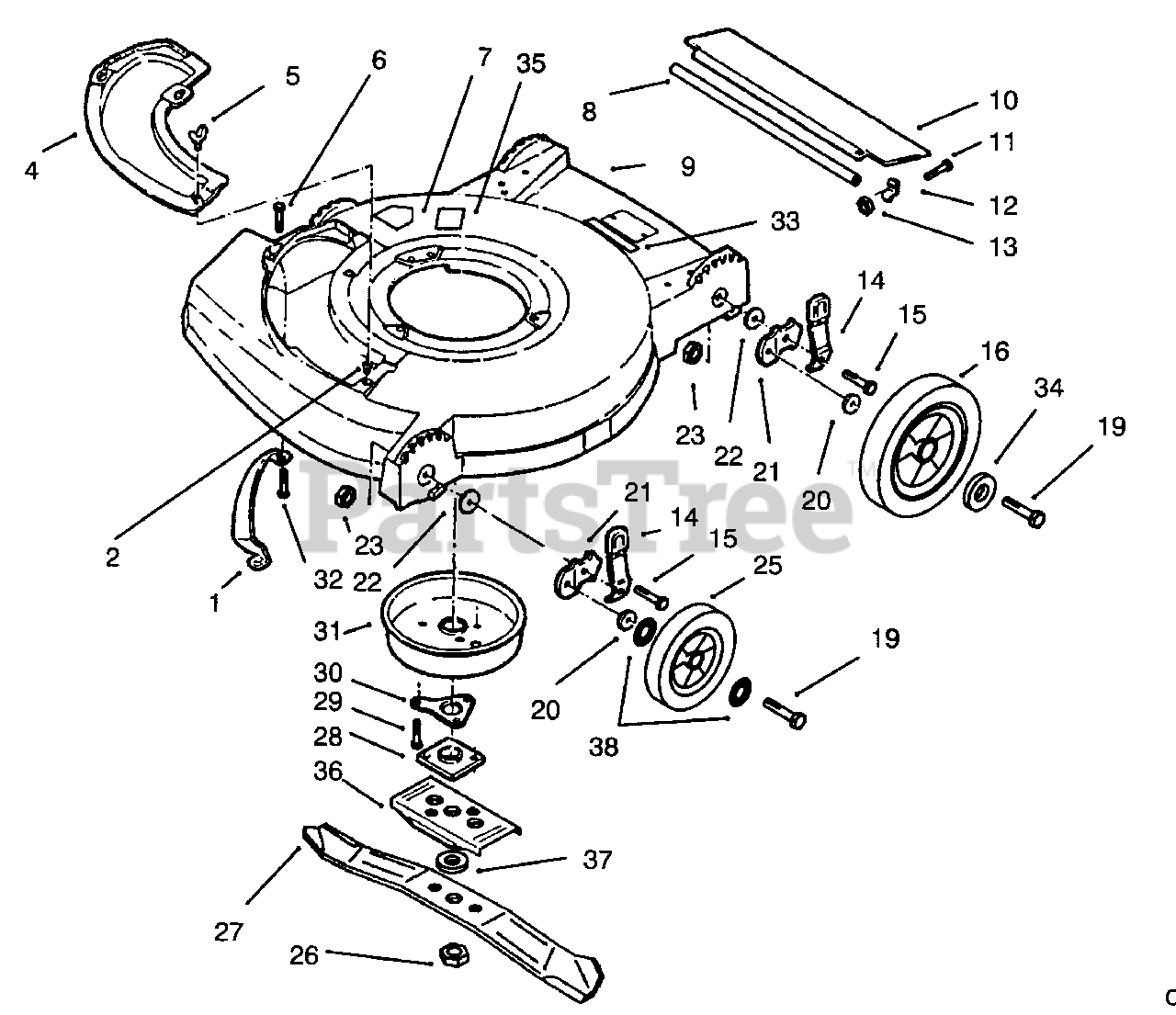

DECK, MUFFLER COVER, BLADE & WHEELS Parts Diagram

  • Title

1

Lawn-Boy 608159

Toe Bar

$

$

Not available

2

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

$0.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

$30.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 606452

Screw-Cover Plate

$

$

Not available

6

Lawn-Boy 607809

Screw-Plate Mounting
(Superseded to 614677)

$3.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 39-5770

Decal-Danger (English)

$7.99

$

In Stock, Qty 8

0

8

Lawn-Boy 608160

Rod-Trailing Shield

$

$

Not available

9

Lawn-Boy 16-2289

Housing Assembly (Incl. Ref. #2, 7, 33 & 35))

$998.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611014

Shield-Trailing

$

$

Not available

11

Lawn-Boy 609891

Screw-Trailing Shield
(Superseded to 700138)

$

$

Not available

12

Lawn-Boy 608161

Clamp

$10.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 602315

Nut

$4.49

$

In Stock, only 2 left!

0

14

Lawn-Boy 153444

Knob and Spring Assembly

$

$

Not available

15

Lawn-Boy 610646

Bolt-Shoulder

$6.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 682974

Wheel-Rear 8"
(Superseded to 131-4520)

$33.99

$

In Stock, only 3 left!

0

19

Lawn-Boy 603441

Bolt-Wheel

$7.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 603620

Washer

$5.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 608833

Bracket-Wheel Ht. Adjust
(Superseded to 608833-03)

$22.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 608834

Washer-Wheel Ht. Adjust

$15.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 603773

Nut-Wheel Ht. Adjust

$2.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 678636

Wheel-Front 6"

$25.99

$

In Stock, Qty 5

0

26

Lawn-Boy 603164

Nut
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 7

0

27

Lawn-Boy 603409

Blade 19"
(Superseded to 603409-03)

$33.99

$

In Stock, only 4 left!

0

28

Lawn-Boy 677525

Collar and Plate Assembly

$23.99

$

In Stock, Qty 11

0

29

Lawn-Boy 609471

Screw-Muff. to Muff. Plate

$4.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 609786

Support-Crankshaft

$20.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 682876

Muffler Cover Assembly

$143.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 46-6811

Screw

$3.49

$

In Stock, Qty 7

0

33

Lawn-Boy 92-2940

Decal-Warning (English)
(Superseded to 92-4981)

$4.49

$

Usually ships in 3-6 days

0

Lawn-Boy 92-5434

Kit-Decal, French

Note: Not Illustrated

$

$

Not available

34

Lawn-Boy 605256

Washer-Wheel Bolt

$2.99

$

In Stock, Qty 9

0

35

Lawn-Boy 613121

Decal-Spark Plug

$

$

Not available

36

Lawn-Boy 603541

Stiffener-Blade

$

$

Not available

37

Lawn-Boy 605058

Washer

$5.49

$

In Stock, Qty 15

0

38

Lawn-Boy 605255

Washer-Felt

$1.49

$

In Stock, Qty 20+

0
