10738 - Lawn-Boy 21" Walk-Behind Mower (SN: 315000001 - 315999999) (2015) Engine and Blade Assembly Parts Diagram

21" Walk-Behind Mower

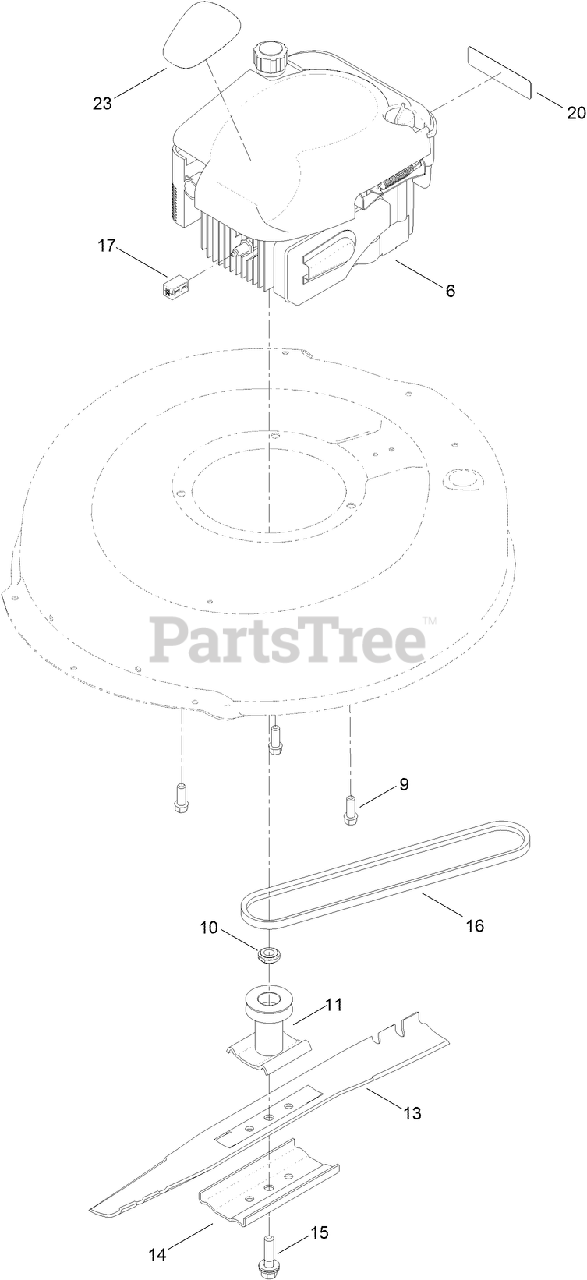

Engine and Blade Assembly Parts Diagram

  • Title

6

ENGINE-B S, 122M050109F1

Note: Not serviced separately

$

$

Not available

6

ENGINE-B S, 122M050109F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

9

Lawn-Boy 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 106-3999

SPACER-DRIVER

$3.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 106-3987

DRIVER-BLADE

$34.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 108-0954-03

See Supercession: 133-8182-03
(Superseded to 133-8182-03)

$26.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$11.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 125-2466

BOLT-BLADE

$3.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 110-9429

V-BELT

$18.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 125-5054

FERRITE-CLAMP

$

$

Not available

20

Lawn-Boy 117-2718

DECAL-ARRESTER, SPARK

$8.49

$

In Stock, only 2 left!

0

23

Lawn-Boy 130-6690

DECAL-SHROUD

$

$

Currently unavailable
