10761 B - Lawn-Boy Walk-Behind Mower (SN: 005900001 - 005999999) (1995) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

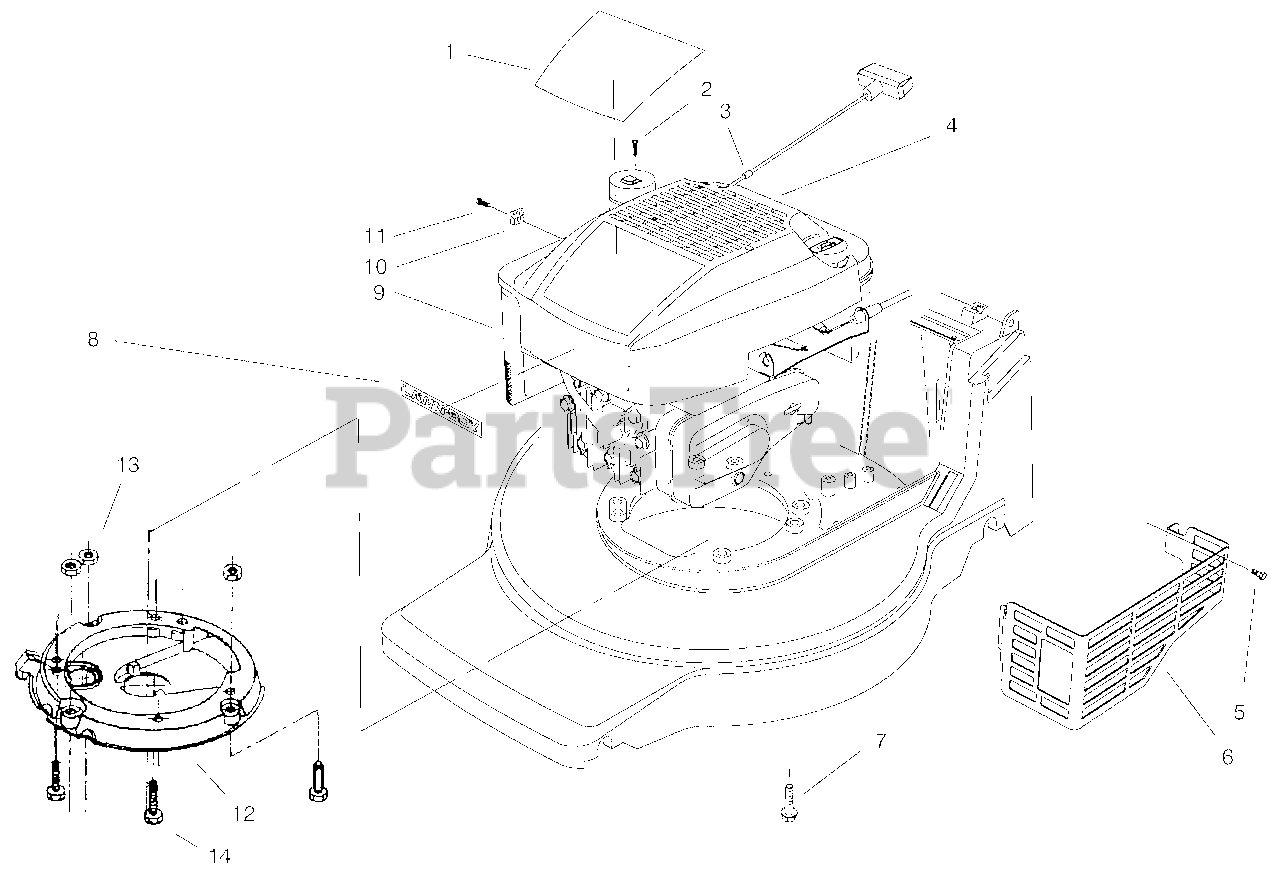

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-8816

Decal-Recoil

$

$

Not available

2

Lawn-Boy 92-7887

Screw-Mounting

$5.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 2210-316

Stop-Rope

$7.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 281441

Cover-XTE

Note: Obtain From Briggs & Stratton

$

$

Currently unavailable

5

Lawn-Boy 32144-73

Screw-Hex Washer Head Thread Forming
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 82-8550

Shield-Muffler
(Superseded to 104-7577-03)

$25.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 32144-102

Screw-Tapping

$3.49

$

In Stock, Qty 5

0

8

Lawn-Boy 92-8615

Decal-Shroud

$24.99

$

In Stock, only 2 left!

0

9

Engine

$

$

Not available

10

Lawn-Boy 2210-249

Clamp-Casing

$3.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 86-7990

Screw-Clamp

$3.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 614431

Plate-Engine Mount

$96.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 322-8

Screw-Hex Hd. Cap

$3.49

$

In Stock, Qty 6

0
