10795 - Lawn-Boy Insight Platinum Walk-Behind Mower (SN: 280000001 - 280999999) (2008) REAR AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

Insight Platinum Walk-Behind Mower

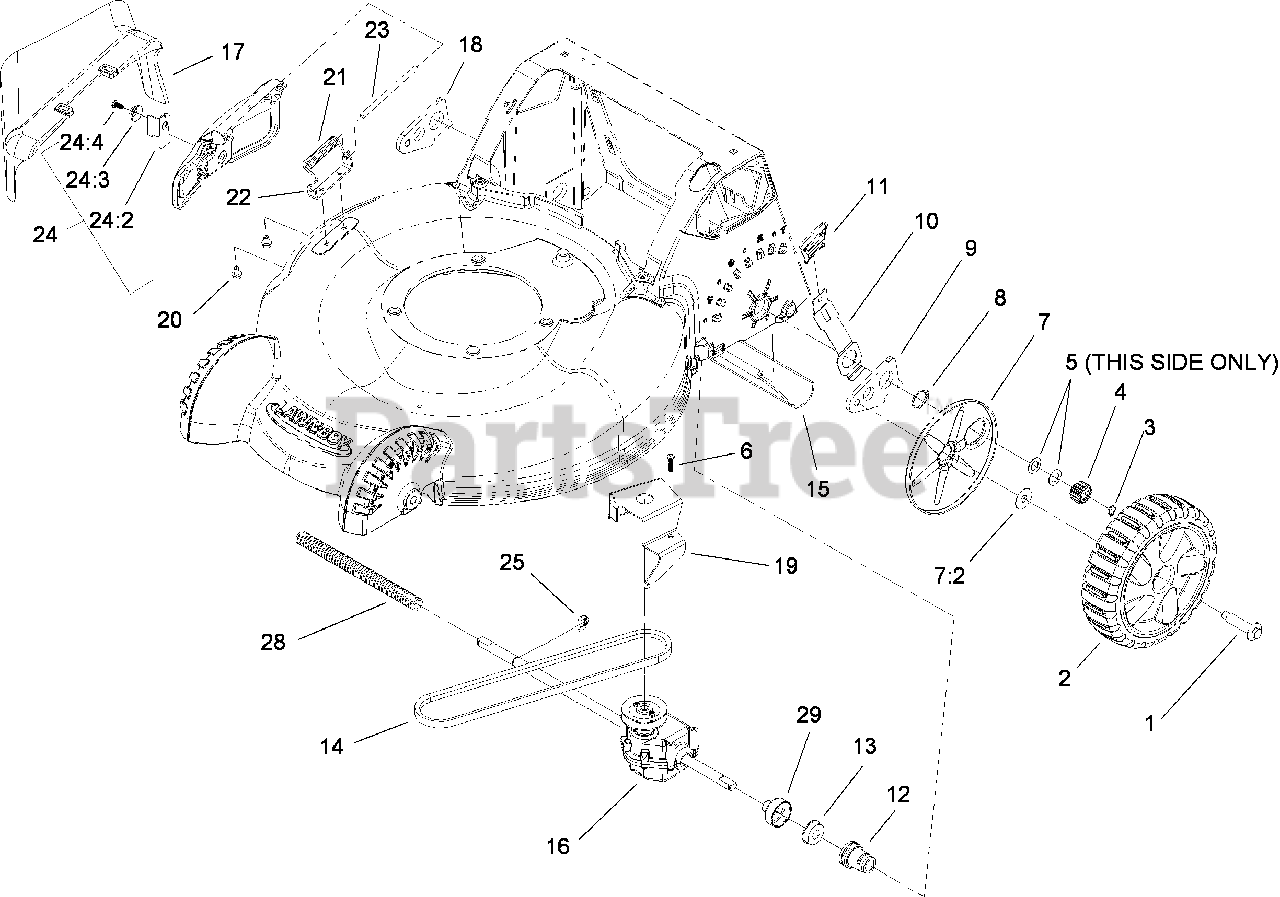

REAR AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 107-3906

REAR WHEEL ASM
(Superseded to 117-4104)

$45.99

$

In Stock, Qty 14

0

3

Lawn-Boy 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 110-9417

PINION
(Superseded to 131-5399)

$5.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 110-1793

WHEEL COVER ASM

$9.99

$

In Stock, Qty 6

0

7:2

Lawn-Boy 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 9

0

9

Lawn-Boy 108-9344

ARM-REAR PIVOT, LH

$12.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 110-9445

ARM-SPRING, REAR

$11.99

$

In Stock, only 3 left!

0

11

Lawn-Boy 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 110-9422

RETAINER-BEARING

$23.99

$

In Stock, Qty 7

0

13

Lawn-Boy 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 110-9429

V-BELT

$17.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 112-8768

SHIELD-TRAILING
(Superseded to 120-7010)

$39.99

$

In Stock, Qty 16

0

16

Lawn-Boy 114-2812

TRANSMISSION ASM
(Superseded to 121-9186)

$144.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 105-3028

CHUTE-DISCHARGE, SIDE

$11.99

$

In Stock, Qty 15

0

18

Lawn-Boy 108-9343

ARM-REAR PIVOT, RH

$12.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, Qty 7

0

20

Lawn-Boy 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 99-5293

SPRING-TORSION

$9.99

$

In Stock, Qty 17

0

22

Lawn-Boy 112-6416

BRACKET-COVER

$2.99

$

In Stock, Qty 11

0

23

Lawn-Boy 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 106-8376

DISCHARGE DOOR ASM

$15.99

$

In Stock, Qty 5

0

24:2

Lawn-Boy 107-0795

LATCH-DOOR

$1.18

$

In Stock, only 1 left!

0

24:3

Lawn-Boy 107-7456

CAP-DOOR
(Superseded to 138-3242)

$1.99

$

In Stock, only 2 left!

0

24:4

Lawn-Boy 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, only 3 left!

0

25

Lawn-Boy 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 24-7922

COVER-SHAFT, DRIVE

$10.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 114-2755

CAP-BEARING

$3.49

$

In Stock, Qty 6

0
