108 C (114-108C100) - Cub Cadet Walk-Behind Mower (1994) Push Rotary Mower Parts Diagram

Walk-Behind Mower

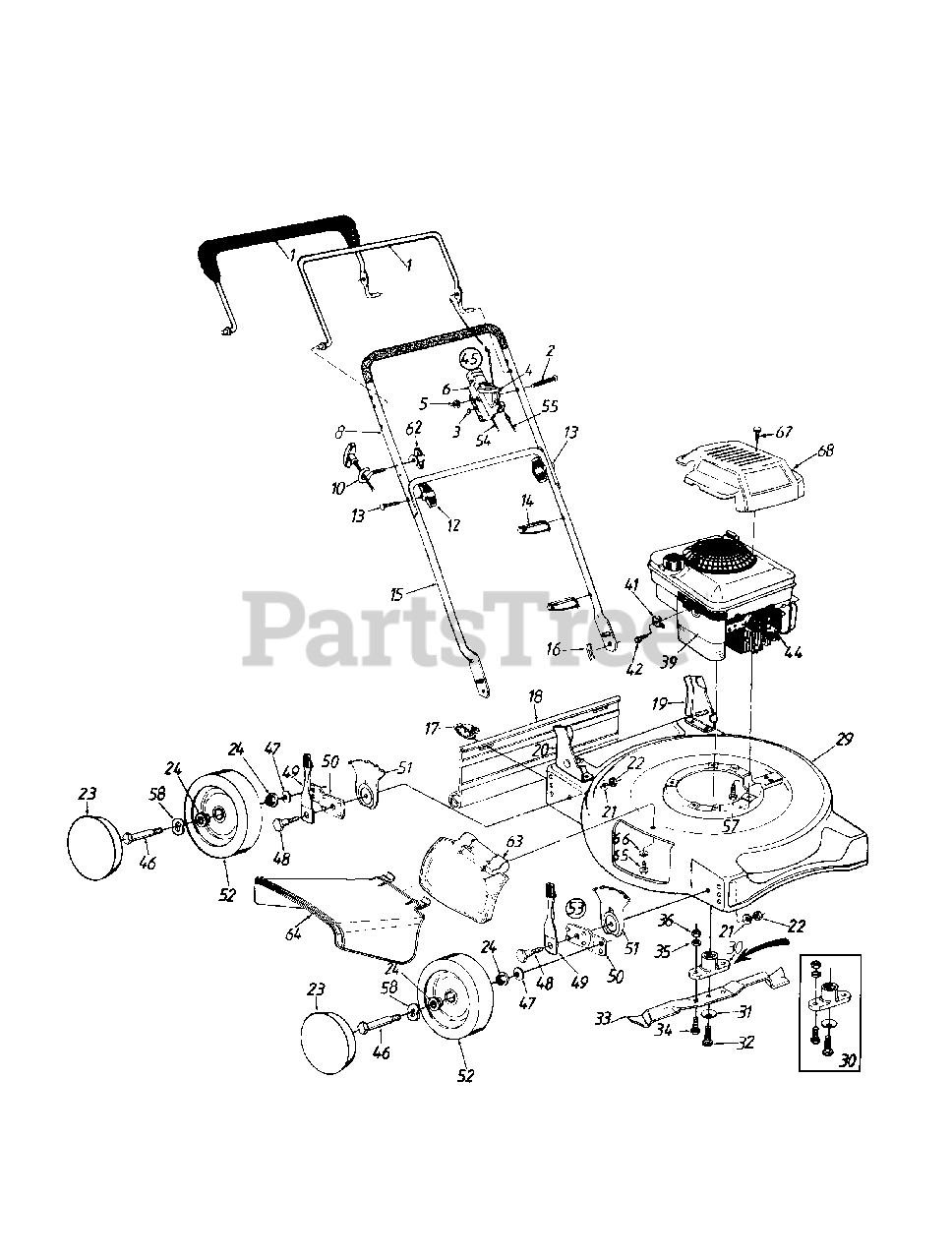

Push Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

$61.99

$

In Stock, only 1 left!

0

2

Cub Cadet 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 4 left!

0

3

Cub Cadet 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 746-0876

Throttle Lever
(Superseded to 946-0876)

$7.99

$

In Stock, Qty 10

0

5

Cub Cadet 712-0324

Hex L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 646-0875

Throttle Body
(Superseded to 946-0875)

$8.99

$

In Stock, Qty 14

0

8

Cub Cadet 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

Cub Cadet 749-0538C-0637

UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

12

Cub Cadet 720-0276

Hand Knob
(Superseded to 920-0276)

$3.49

$

In Stock, Qty 9

0

13

Cub Cadet 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

15

Cub Cadet 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

Cub Cadet 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

16

Cub Cadet 714-0104

Hairpin Cotter

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

Cub Cadet 731-1447

Rear Flap

$

$

Not available

19

Cub Cadet 12935B

Handle Bracket Ass'y.--L.H.

$

$

Not available

20

Cub Cadet 12936B

Handle Bracket Ass'y.--R.H.

$

$

Not available

21

Cub Cadet 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-0982A

Hub Cap
(Superseded to 731-0982C)

$10.99

$

In Stock, Qty 20+

0

24

Cub Cadet 741-0484

Bearing
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

29

Cub Cadet 682-0016

20" Deck Ass'y.

$

$

Currently unavailable

30

Cub Cadet 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0453

Bell-Wash. .46" I.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$8.99

$

In Stock, Qty 5

0

33

Cub Cadet 742-0720

20" Mulching Blade
(Superseded to 942-0720)

$31.99

$

In Stock, only 1 left!

0

34

Cub Cadet 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

36

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

39

Engine

$

$

Not available

41

Cub Cadet 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 2 left!

0

42

Cub Cadet 710-1237

Hex Self-Tap Scr. #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 735-0639

Spark Plug Boot

$

$

Not available

45

Cub Cadet 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 2,3,4,5,6)

$34.99

$

In Stock, Qty 9

0

46

Cub Cadet 738-0102

Axle Bolt

$9.49

$

In Stock, Qty 11

0

47

Cub Cadet 736-0105

Bell-Wash. .400" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

50

Cub Cadet 15262B

Pivot Bar

Variations

Cub Cadet 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

52

Cub Cadet 734-1517B

Wheel Ass'y. Comp.

$63.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 14578

Height Adj. Ass'y. Comp.-- R.F. & L.R.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

Cub Cadet 14579

Height Adj. Ass'y. Comp.-- L.F. & R.R.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

54

Cub Cadet 746-0842

Throttle Cable--51"
(Superseded to 946-0671A)

$13.99

$

In Stock, Qty 9

0

55

Cub Cadet 746-0550

Control Cable--39"
(Superseded to 946-0550)

$20.99

$

In Stock, Qty 8

0

57

Cub Cadet 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$3.99

$

In Stock, only 4 left!

0

58

Cub Cadet 736-0504

Wave Washer .51" I.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

?59

Cub Cadet 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 682-7000

Mulching Plug

$

$

Not available

64

Cub Cadet 731-1407

Chute Deflector
(Superseded to 731-1409B)

$26.99

$

In Stock, Qty 5

0

65

Cub Cadet 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 13

0

66

Cub Cadet 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

67

Cub Cadet 710-1256

Hi-Lo Scr. #10 x 1.25" Lg.

$5.99

$

In Stock, Qty 5

0

68

Cub Cadet 751B281191

Engine Shroud
(Superseded to 751B281440)

$

$

Not available
