108 C (114-108C100) - Cub Cadet Walk-Behind Mower Engine (1994) B&S 5 HP Carburetor Ass'y Parts Diagram

Walk-Behind Mower Engine

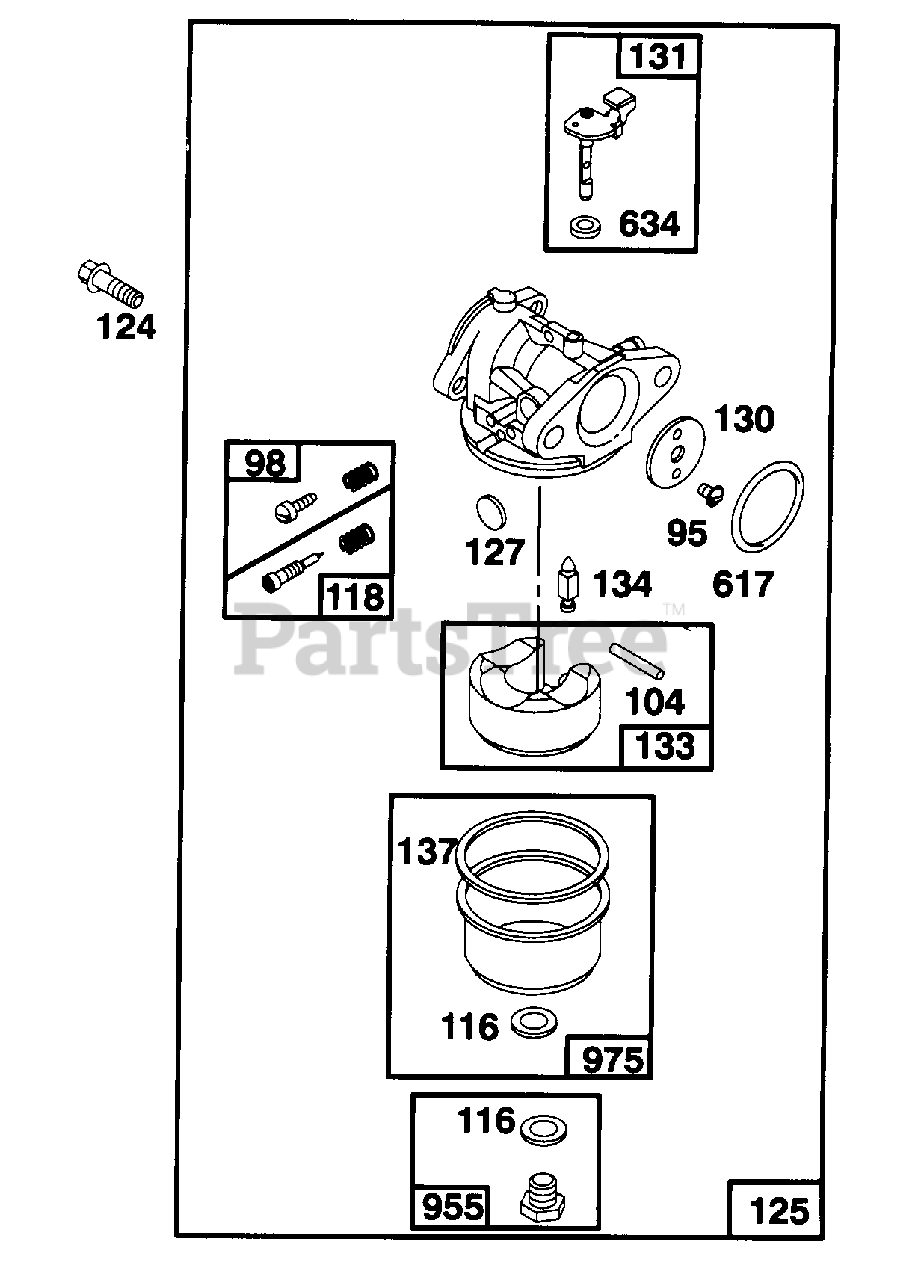

B&S 5 HP Carburetor Ass'y Parts Diagram

  • Title

95

Cub Cadet BS-94098

Screw--Throttle Valve Mounting Sem
(Superseded to BS-691636)

$3.99

$

In Stock, only 2 left!

0

98

Cub Cadet BS-398185

Screw--Idle Adjustment

$7.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-231371

Pin--Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, only 1 left!

0

116

Gasket--Sealing

Note: (Sold in Kit Only)

$

$

Not available

118

Cub Cadet BS-493765

Valve and Spring--Needle

$14.99

$

In Stock, only 1 left!

0

124

Cub Cadet BS-94525

Screw--Carburetor Mounting
(Superseded to BS-692524)

$

$

Not available

125

Cub Cadet BS-493627

Carburetor Assembly

$

$

Not available

127

Plug--Welch

Note: (Sold in Kit Only)

$

$

Not available

130

Cub Cadet BS-223470

Valve Throttle

$

$

Not available

131

Cub Cadet BS-493267

Shaft and Lever--Throttle

$16.99

$

In Stock, only 1 left!

0

133

Cub Cadet BS-398187

Float Assembly--Carburetor

$9.99

$

In Stock, Qty 8

0

134

Cub Cadet BS-398188

Valve--Inlet

Note: (Includes Seat)

$6.49

$

In Stock, Qty 20+

0

137

Gasket--Bowl

Note: (Sold in Kit Only)

$

$

Not available

617

Cub Cadet BS-270344

Seal--Fuel Intake Tube
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

634

Washer--Shaft

Note: (Sold in Kit Only)

$

$

Not available

955

Cub Cadet BS-493637

Screw--Fuel Bowl

$17.99

$

Usually ships in 2-12 days

0

975

Cub Cadet BS-493640

Bowl Assembly--Carburetor
(Superseded to BS-796611)

$6.49

$

In Stock, Qty 16

0

Cub Cadet BS-493762

Carburetor Overhaul Kit
(Superseded to BS-498260)

Note: Included in Ref. No. 116, 137, 617 and 634

$16.99

$

In Stock, Qty 20+

0

Cub Cadet BS-490937

Carburetor Gasket Set
(Superseded to BS-498260)

Note: Included in Ref. No. 104, 116, 118, 127, 134, 137, 617 and 634

$16.99

$

In Stock, Qty 20+

0
