108 C (114-108C100) - Cub Cadet Walk-Behind Mower Engine (1994) B&S 5 HP Fuel Tank Ass'y Parts Diagram

Walk-Behind Mower Engine

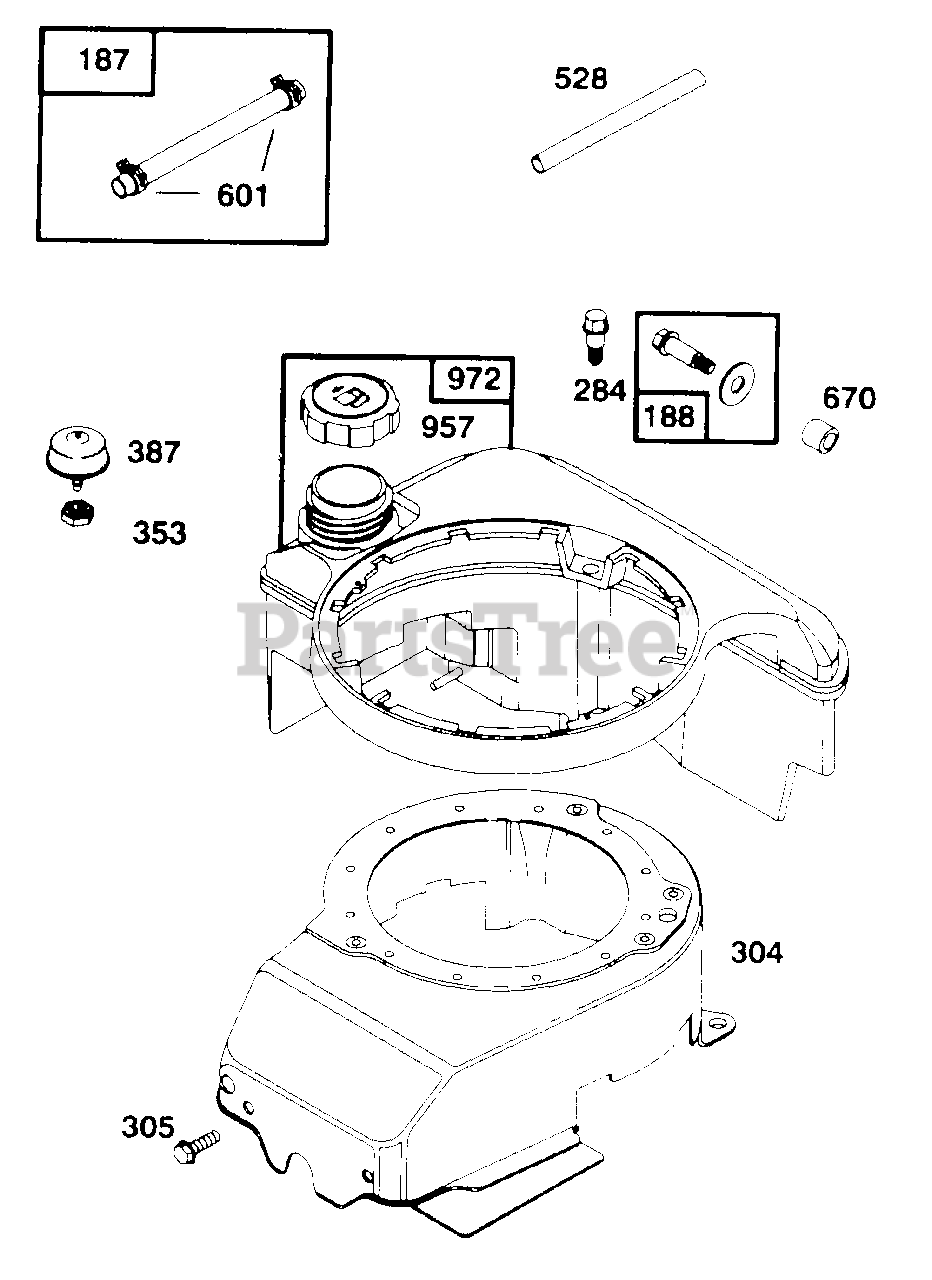

B&S 5 HP Fuel Tank Ass'y Parts Diagram

  • Title

187

Cub Cadet BS-492790

Hose Fuel
(Superseded to 751-10349-13)

$16.99

$

In Stock, Qty 7

0

188

Cub Cadet BS-398540

Screw Tank Mounting
(Superseded to BS-692311)

Note: (Includes Washer)

$7.49

$

In Stock, Qty 10

0

284

Cub Cadet BS-94511

Screw--Hex Head
(Superseded to BS-690940)

$3.99

$

In Stock, only 4 left!

0

304

Cub Cadet BS-493293

Housing--Blower
(Superseded to BS-795071)

$102.99

$

In Stock, only 4 left!

0

305

Cub Cadet BS-94513

Screw--Hex Head Sem
(Superseded to BS-692198)

$5.99

$

In Stock, only 3 left!

0

353

Cub Cadet BS-94581

Washer--Lock

$

$

Not available

387

Cub Cadet BS-394281

Primer Ass'y.
(Superseded to BS-394281S)

$16.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-399254

Hose Primer

$9.49

$

Usually ships in 2-12 days

0

601

Cub Cadet BS-93807

Clamp Hose

Note: (Black)

$

$

Not available

670

Cub Cadet BS-280512

Spacer--Fuel Tank
(Superseded to BS-692294)

$4.99

$

In Stock, Qty 12

0

957

Cub Cadet BS-397974

Cap Assembly--Fuel
(Superseded to BS-796577)

$16.99

$

In Stock, Qty 12

0

972

Cub Cadet BS-495224

Tank Ass'y.--Fuel
(Superseded to BS-699374)

Note: (1.6 Quart, Black)

$64.99

$

In Stock, Qty 9

0
