108 R (116-108R100) - Cub Cadet Walk-Behind Mower Engine (1996) Fuel Assembly, Blower Housing, Gasket Sets, Carburetor Kit Parts Diagram

Walk-Behind Mower Engine

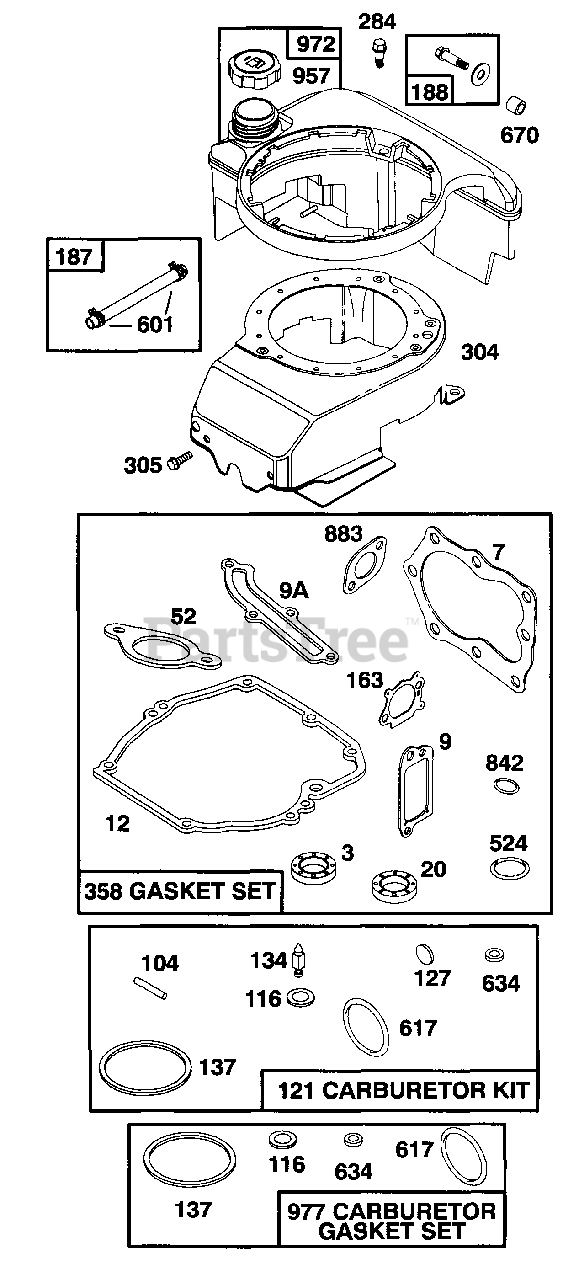

Fuel Assembly, Blower Housing, Gasket Sets, Carburetor Kit Parts Diagram

  • Title

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

Note: Included in Gasket Set - Part No. BS-496117.

$5.99

$

In Stock, Qty 17

0

7

Cub Cadet BS-272916

Gasket-Cylinder Hd.
(Superseded to BS-692249)

Note: Included in Gasket Set - Part No. BS-496117.

$8.99

$

In Stock, Qty 15

0

9

Cub Cadet BS-272481

Gasket-Valve Cover
(Superseded to BS-699833)

Note: Included in Gasket Set - Part No. BS-496117.

$5.99

$

In Stock, Qty 5

0

9A

Cub Cadet BS-272238

Gasket-Baffle Plate
(Superseded to BS-691879)

Note: Included in Gasket Set - Part No. BS-496117.

$7.49

$

In Stock, Qty 10

0

12

Cub Cadet BS-272198

Gasket-Crankcase
(Superseded to BS-692232)

Note: Included in Gasket Set - Part No. BS-496117.

$6.49

$

In Stock, Qty 7

0

20

Cub Cadet BS-399781

Seal-Oil
(Superseded to BS-399781S)

Note: Included in Gasket Set - Part No. BS-496117.

$8.49

$

In Stock, only 4 left!

0

52

Cub Cadet BS-272199

Gasket-Intake
(Superseded to BS-272199S)

Note: Included in Gasket Set - Part No. BS-496117.

$4.99

$

In Stock, Qty 10

0

104

Cub Cadet BS-231371

Pin-Float Hinge
(Superseded to BS-797622)

Note: Included in Carburetor Kit - Part No. BS-493762.

$4.49

$

In Stock, Qty 12

0

116

Gasket-Sealing

Note: (Sold in Kit Only). Included in Carburetor Gasket Set - Part No. BS-490937. Included in Carburetor Kit - Part No. BS-493762.

$

$

Not available

121

Cub Cadet BS-493762

Carburetor Kit
(Superseded to BS-498260)

Note: Includes items 104, 116, 127, 134, 137, 617 & 634

$18.99

$

In Stock, Qty 20+

0

127

Plug-Welch

Note: (Sold in Kit Only). Included in Carburetor Kit - Part No. BS-493762.

$

$

Not available

134

Cub Cadet BS-398188

Valve-Inlet

Note: (Includes Seat). Included in Carburetor Kit - Part No. BS-493762.

$6.99

$

In Stock, Qty 20+

0

137

Gasket-Bowl

Note: (Sold in Kit Only). Included in Carburetor Gasket Set - Part No. BS-490937. Included in Carburetor Kit - Part No. BS-493762.

$

$

Not available

163

Cub Cadet BS-272653

Gasket-Air Cleaner
(Superseded to BS-795629)

Note: Included in Gasket Set - Part No. BS-496117.

$3.49

$

In Stock, Qty 20+

0

187

Cub Cadet BS-492790

Hose Fuel
(Superseded to 751-10349-13)

$18.99

$

In Stock, only 3 left!

0

188

Cub Cadet BS-398540

Screw-Hex. Head
(Superseded to BS-692311)

$7.49

$

In Stock, only 3 left!

0

284

Cub Cadet BS-94511

Screw-Hex. Head
(Superseded to BS-690940)

$4.49

$

In Stock, Qty 19

0

304

Cub Cadet BS-493293

Housing-Blower
(Superseded to BS-795071)

$112.99

$

In Stock, only 2 left!

0

305

Cub Cadet BS-94786

Screw-Sem
(Superseded to BS-692198)

$6.49

$

In Stock, Qty 20+

0

358

Cub Cadet BS-496117

Gasket Set

Note: Includes items 3, 7, 9, 9A, 12, 20, 52, 163, 524, 842 & 883

$42.99

$

Usually ships in 2-12 days

0

524

Cub Cadet BS-280393

Seal-Fill Tube
(Superseded to BS-691031)

Note: Included in Gasket Set - Part No. BS-496117.

$5.99

$

In Stock, Qty 8

0

601

Cub Cadet BS-93807

Clamp-Hose

$

$

Not available

617

Cub Cadet BS-270344

Seal-Fuel Intake Tube
(Superseded to BS-270344S)

Note: Included in Carburetor Gasket Set - Part No. BS-490937. Included in Carburetor Kit - Part No. BS-493762.

$3.49

$

In Stock, Qty 20+

0

634

Washer-Shaft

Note: (Sold in Kit Only). Included in Carburetor Gasket Set - Part No. BS-490937. Included in Carburetor Kit - Part No. BS-493762.

$

$

Not available

670

Cub Cadet BS-280512

Spacer-Tank
(Superseded to BS-692294)

$5.49

$

In Stock, Qty 10

0

842

Cub Cadet BS-280966

Seal-O-Ring
(Superseded to BS-692296)

Note: Included in Gasket Set - Part No. BS-496117.

$5.49

$

In Stock, Qty 16

0

883

Cub Cadet BS-272253

Gasket-Muffler
(Superseded to BS-691881)

Note: Included in Gasket Set - Part No. BS-496117.

$9.49

$

In Stock, Qty 6

0

957

Cub Cadet BS-397974

Cap-Fuel Tank
(Superseded to BS-796577)

$12.99

$

In Stock, Qty 9

0

972

Cub Cadet BS-495224

Tank Fuel
(Superseded to BS-699374)

$71.99

$

In Stock, Qty 20+

0

977

Cub Cadet BS-490937

Gasket Set-Carburetor
(Superseded to BS-498260)

Note: Includes items 116, 137, 617 & 634

$18.99

$

In Stock, Qty 20+
