1080 M (1691371) - Simplicity 32" Snow Thrower, 10hp Auger Housing & Chute Group Parts Diagram

32" Snow Thrower, 10hp

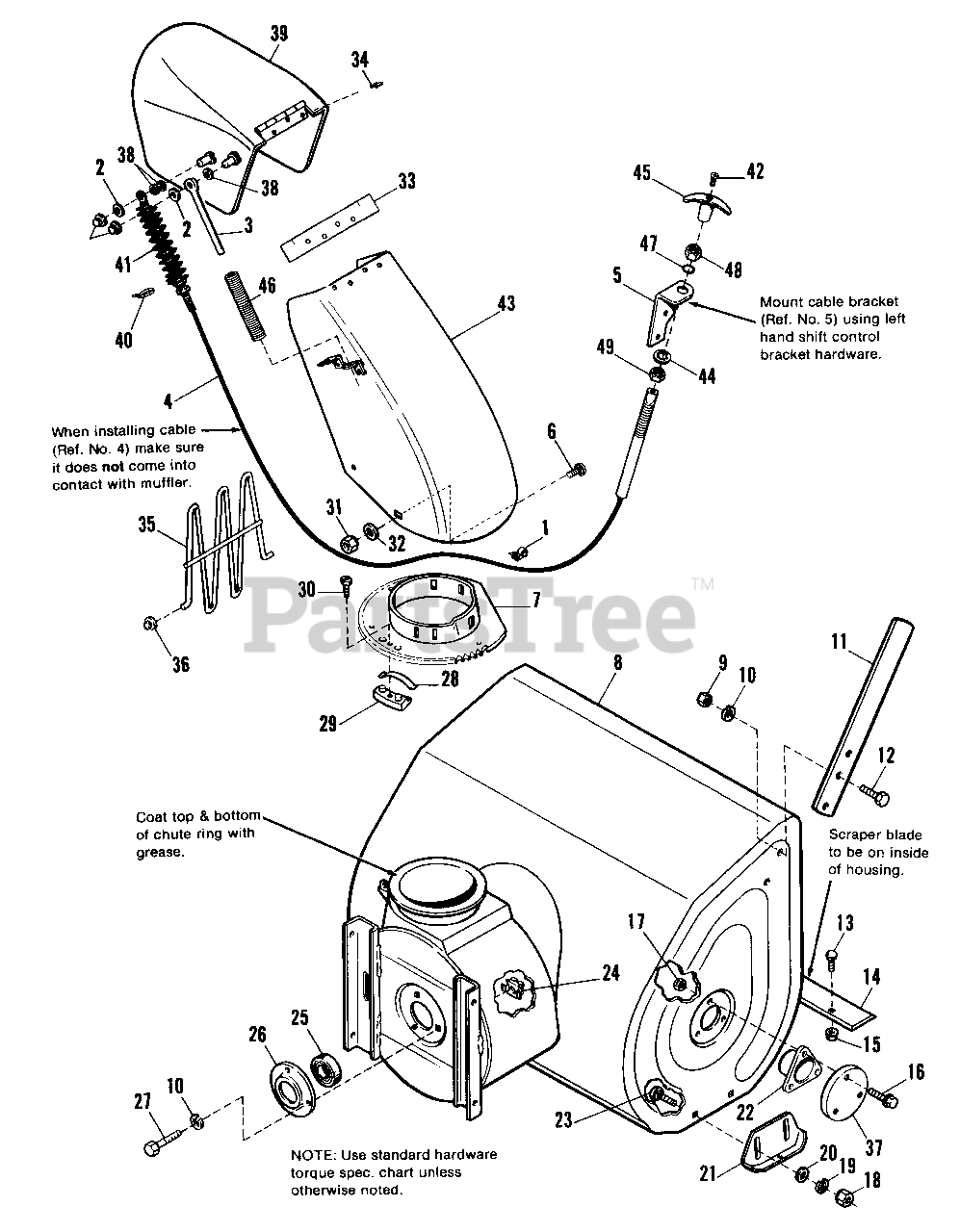

Auger Housing & Chute Group Parts Diagram

  • Title

1

Simplicity 2826918

CLAMP

$

$

Not available

2

Simplicity 1921319SM

WASHER, Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1611945SM

ROD, Spring

$14.99

$

In Stock, only 1 left!

0

4

Simplicity 1718771SM

CABLE ASSY. (Incl. Ref. Nos. 40-42, 44, 45 & 47-49)

$197.99

$

In Stock, only 2 left!

0

5

Simplicity 1726411

BRACKET, Cable
(Superseded to 1726411ASM)

$

$

Not available

6

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1678634SM

GEAR, Chute

$

$

Not available

8

Simplicity 1667509

HOUSING ASSY., Auger, 24" (Used on Mfg. No. 1691368)

Note: Ref. No. 8 includes Ref. No. 13, 14 & 15.

$

$

Not available

8

Simplicity 1667510

HOUSING ASSY., Auger, 28" (Used on Mfg. No. 1691370)

$

$

Not available

8

Simplicity 1667511

HOUSING ASSY., Auger, 32" (Used on Mfg. No. 1691371 & 1691716)

$

$

Not available

9

Simplicity 1917372SM

NUT, 5/16-18 (1691370, 1691371 & 1691716 only)
(Superseded to 7091511SM)

$3.49

$

In Stock, only 3 left!

0

10

Simplicity 1917356SM

LOCKWASHER, 5/16 (Qty. 7 on 1691370, 1691371 & 1691716)
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 1715787

CUTTER, Drift (1691370, 1691371 & 1691716 only)
(Superseded to 1715787CSM)

Note: Drift Cutter Kit contains 2 cutters and mounting hardware, available under P/N 1685189.

$37.99

$

Usually ships in 2-12 days

0

12

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4 (1691370, 1691371 & 1691716 only)
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

13

Simplicity 1931332SM

BOLT, Carriage, 5/16-18 x 5/8 (Qty. 7 on 32" models)
(Superseded to 703447)

$4.49

$

In Stock, Qty 18

0

14

Simplicity 1709946

BLADE, Scraper, 24" (Used on 1691368)
(Superseded to 1709946ASM)

$41.99

$

In Stock, only 4 left!

0

14

Simplicity 1709947

BLADE, Scraper, 28" (Used on 1691370)
(Superseded to 1709947BMYP)

$48.99

$

In Stock, Qty 11

0

14

Simplicity 1709948

BLADE, Scraper, 32" (Used on 1691321, 1691716)
(Superseded to 1709948BMYP)

$62.99

$

In Stock, only 2 left!

0

15

Simplicity 1935048SM

LOCKNUT, Flange, 5/16-18 (Qty. 7 on 1691371 & 1691716 only)
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1923325SM

CAPSCREW, Hex Flange Whizlock, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 7

0

17

Simplicity 1923362SM

NUT, Hex, Center Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 9

0

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

20

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 2177434C

SKID

$

$

Not available

22

Simplicity 1665980SM

BEARING, Auger

$

$

Not available

23

Simplicity 1931348SM

BOLT, Carriage, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 2830659

NUT, Retainer, 5/16-18

$

$

Not available

25

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

26

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$7.49

$

In Stock, only 4 left!

0

27

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 17/64
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

28

Simplicity 1667865SM

SPRING

$10.99

$

Usually ships in 2-12 days

0

29

Simplicity 1666613SM

HOLD DOWN, Chute

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1960001SM

SCREW, Plastite #10
(Superseded to 703062)

$4.99

$

In Stock, Qty 20+

0

31

Simplicity 1920397SM

LOCKNUT, Nylon, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1921319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1611999

LlNER, Chute

$

$

Not available

34

Simplicity 1611996

RIVET, Pop

$

$

Not available

35

Simplicity 1704446SM

GUARD, Chute

$23.99

$

Usually ships in 2-12 days

0

36

Simplicity 1960126SM

PUSH NUT
(Superseded to 704066)

$5.49

$

In Stock, Qty 10

0

37

Simplicity 1668639CSM

BEARING, Cap
(Superseded to 1668639BMYP)

$54.99

$

Usually ships in 2-12 days

0

38

Simplicity 1702219SM

SPACER

$8.99

$

In Stock, only 2 left!

0

39

Simplicity 1611943

DEFLECTOR ASSY.

$

$

Not available

40

Simplicity 2832747SM

TIE, Self-Locking, Cable Assy.

$3.99

$

Usually ships in 2-12 days

0

41

Simplicity 1700048SM

BOOT, Water

$

$

Not available

42

Simplicity 1960399SM

SCREW, Pan Hd., #8-32 x 11/16

$3.49

$

Usually ships in 2-12 days

0

43

Simplicity 1611946

CHUTE ASSY.

$

$

Not available

44

Simplicity 2818906

LOCKWASHER, Int. Tooth

$

$

Not available

45

Simplicity 1706201SM

HANDLE, Cable

$

$

Not available

46

Simplicity 1611939SM

SPRING

$10.99

$

Usually ships in 2-12 days

0

47

Simplicity 1612148

"O" RING, Cable Assy.

$

$

Not available

48

Simplicity 1612147

FITTING, Cable Assy.

$

$

Not available

49

Simplicity 1922014SM

NUT, 5/16-18, Cable Assy.
(Superseded to 703904)

$4.99

$

In Stock, Qty 5

0
