10800 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

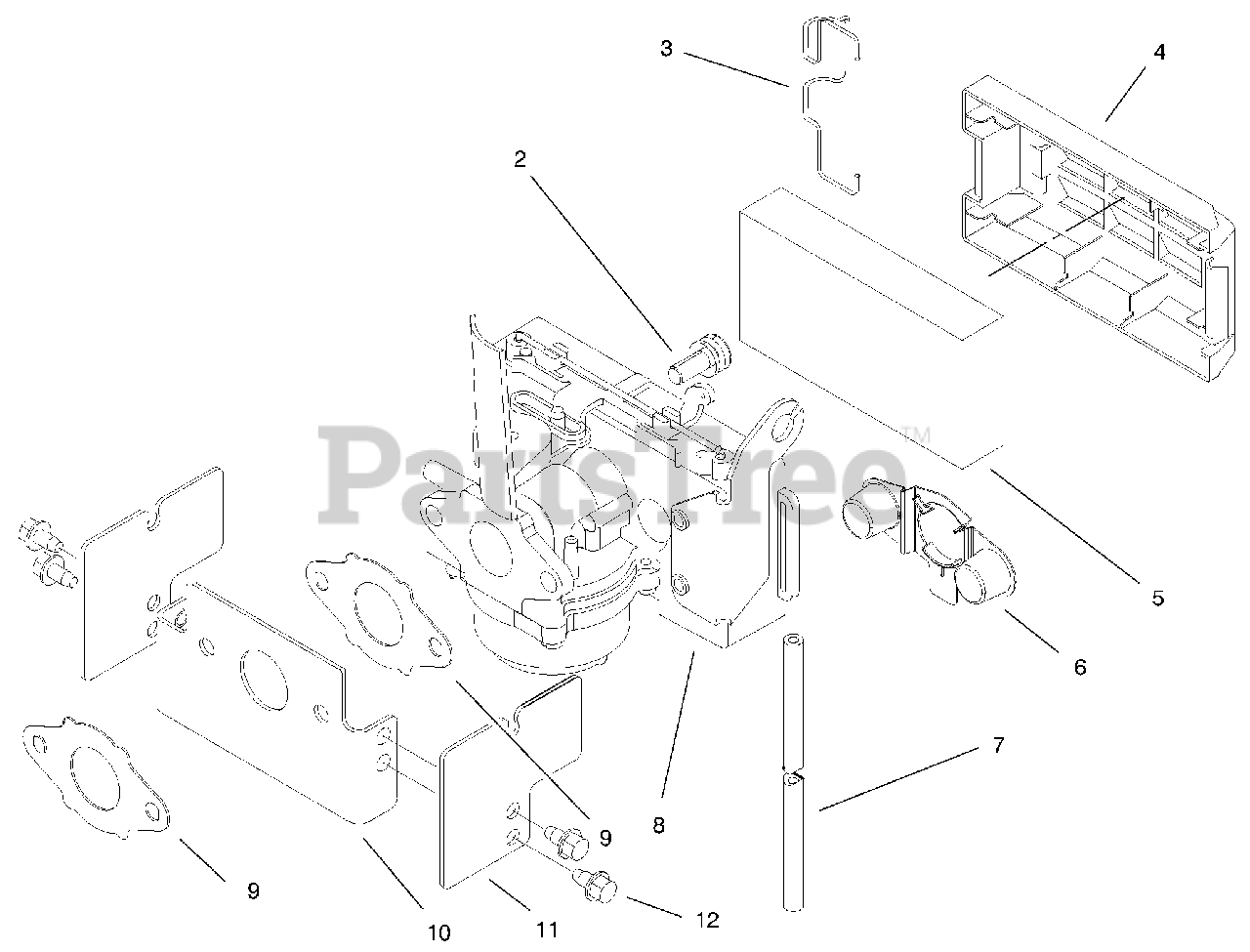

ENGINE ASSEMBLY Parts Diagram

  • Title
2

$2.49

$

In Stock, Qty 8

0

3

Lawn-Boy 610383

Retainer-Filter

$7.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 93-1231

Cover-Air Cleaner

$

$

Not available

5

Lawn-Boy 609493

Element-Filter Air
(Superseded to 107-4621)

$4.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 93-4320

Shield-Fuel

$

$

Not available

7

Lawn-Boy 44-3174

Hose-Primer

$4.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 93-4331

Carburetor Assembly (Incl. Ref. #9)

$242.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 612574

Gasket-Carburetor

$6.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 93-4315

Shield-Carburetor (Intl.)

$

$

Not available

11

Lawn-Boy 93-4316

Shield-Governor V (Intl.)

$

$

Not available

12

$1.99

$

Usually ships in 3-6 days

0
