10800 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 089000001 - 089999999) (1998) CARBURETOR ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

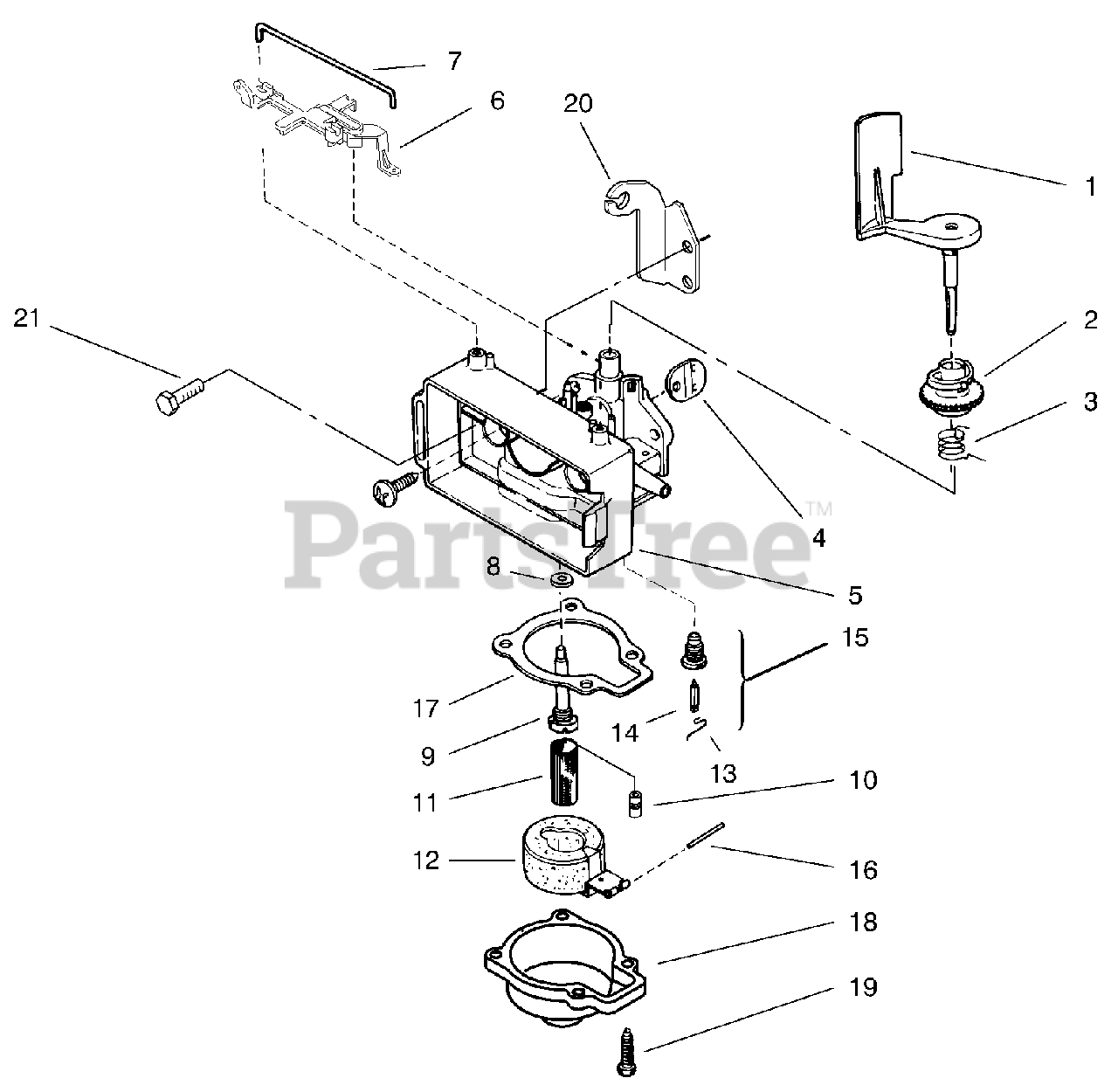

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-6376

Air Vane & Shaft
(Superseded to 104-4430)

$11.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 610834

Collar Adjustment

$3.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 92-4944

Spring Governor

$8.99

$

In Stock, Qty 10

0

4

Lawn-Boy 92-6373

Disc Throttle

$4.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 93-4324

Carburetor Body

$

$

Not available

6

Lawn-Boy 93-1225

Lever-Speed Adjust

$2.49

$

In Stock, Qty 14

0

7

Lawn-Boy 610165

Retainer

$4.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 612383

Washer

$1.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 92-6371

Nozzle

$

$

Not available

10

Lawn-Boy 92-6370

Mainjet

$13.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 611071

Filter-Fuel

$15.99

$

In Stock, only 3 left!

0

12

Lawn-Boy 678113

ASM-Float & Arm

$

$

Not available

13

Lawn-Boy 603145

Clip
(Superseded to 92-9697)

$21.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 678278

ASM-Float
(Superseded to 92-9697)

$21.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 92-6372

ASM-Seat
(Superseded to 92-9697)

$21.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 92-6389

Pin

$5.49

$

In Stock, only 3 left!

0

17

Lawn-Boy 602850

Gasket-Float Chamber
(Superseded to 98-1362)

$2.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 92-9691

Float Chamber

$37.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 608850

Screw

$1.99

$

In Stock, Qty 5

0

20

Lawn-Boy 92-4949

Throttle Control Brkt

$5.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 613269

Screw

$1.99

$

Usually ships in 3-6 days

0
