10800 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

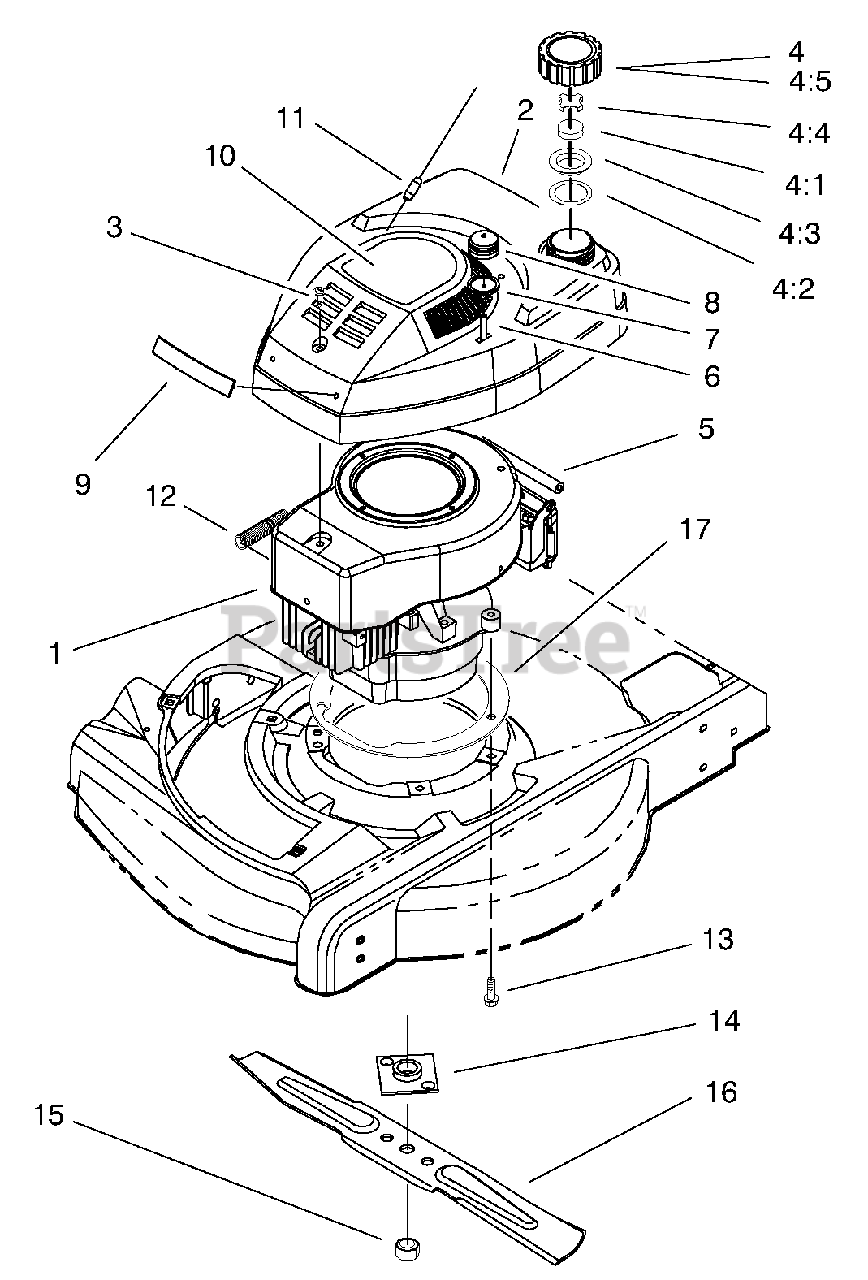

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine ASM

$

$

Not available

2

Lawn-Boy 92-8619

Tank & Shroud ASM
(Superseded to 92-6380)

$127.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 93-4302

Screw-Sems

$6.99

$

In Stock, Qty 5

0

4

Lawn-Boy 98-8344

Fuel/Oil Cap ASM

$23.99

$

In Stock, only 3 left!

0

4:1

Lawn-Boy 609150

Foam Baffle

$5.49

$

In Stock, Qty 9

0

4:2

Lawn-Boy 613311

Gasket-Fuel Cap

$3.49

$

Usually ships in 3-6 days

0

4:3

Lawn-Boy 93-1230

Cover-Fuel Cap Baffle

$

$

Not available

4:4

Lawn-Boy 93-3175

Baffle-Gas Cap

$3.49

$

Usually ships in 3-6 days

0

4:5

Lawn-Boy 98-8345

Cap-Fuel/Oil

$

$

Not available

5

Lawn-Boy 612782

Gas Line

$6.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 44-3174

Hose-Primer

$4.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-8615

Applique-Shroud

$24.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 92-8828

Decal-Shroud Top

$

$

Not available

11

Lawn-Boy 92-1701

Rope-Stop
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 93-4306

Spring-Compression

$5.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 95-1726

Screw-Engine Mount

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 677525

Plate & Collar ASM

$23.99

$

In Stock, Qty 11

0

15

Lawn-Boy 612543

Blade-21" Whirl
(Superseded to 612543-03)

$29.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 7

0

17

Lawn-Boy 93-7152

Plate-Engine

$89.99

$

Usually ships in 3-6 days

0
