109-5200 - Exmark Ultra Vac Bagger for Quest Mower (SN: 670000 - 719999) (2007) Bagger Hood Assembly Parts Diagram

Ultra Vac Bagger for Quest Mower

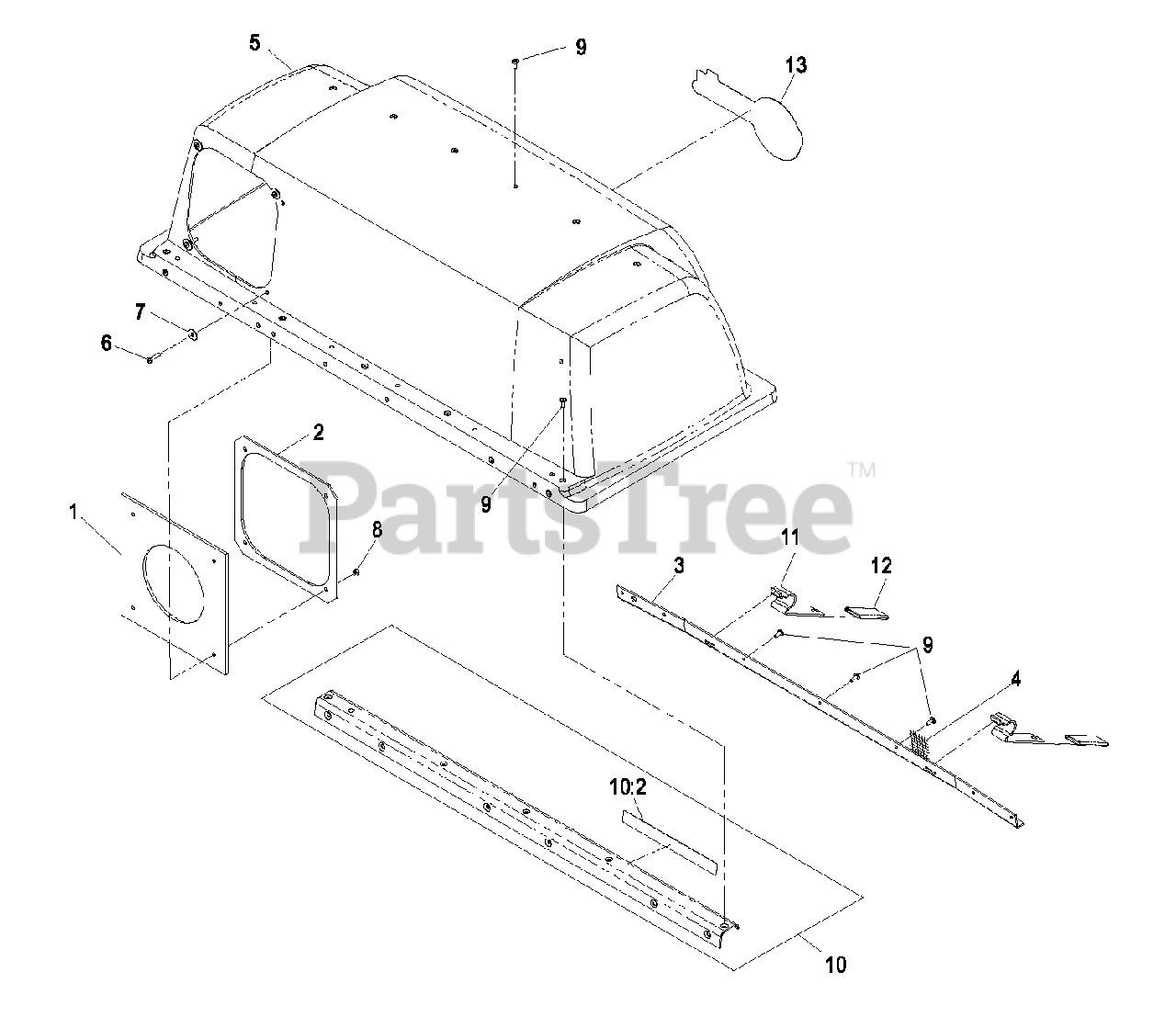

Bagger Hood Assembly Parts Diagram

  • Title

1

Exmark 1-653561

SEAL-CHUTE

$19.99

$

In Stock, only 2 left!

0

2

Exmark 1-653598-03

CLAMP-SEAL

$79.99

$

Usually ships in 3-6 days

0

3

Exmark 92-1736-03

SUPPORT-SCREEN

$51.99

$

Usually ships in 3-6 days

0

4

Exmark 114967

SCREEN-BAGGER

$37.99

$

In Stock, only 4 left!

0

5

Exmark 105-9100

TOP-BAGGER

$275.99

$

Usually ships in 3-6 days

0

6

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

7

Exmark 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 3 left!

0

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

10

Exmark 109-6861

STIFFENER AND DECAL

$101.99

$

Usually ships in 3-6 days

0

10:2

Exmark 109-6809

DECAL-CAUTION, BAGGER

$25.99

$

Usually ships in 3-6 days

0

11

Exmark 115481-03

LATCH-BAGGER, TOP

$12.99

$

In Stock, only 4 left!

0

12

Exmark 115880

GRIP

$5.49

$

In Stock, Qty 6

0

13

Exmark 1-653546

DECAL, EXMARK LOGO

$20.99

$

In Stock, only 3 left!

0
