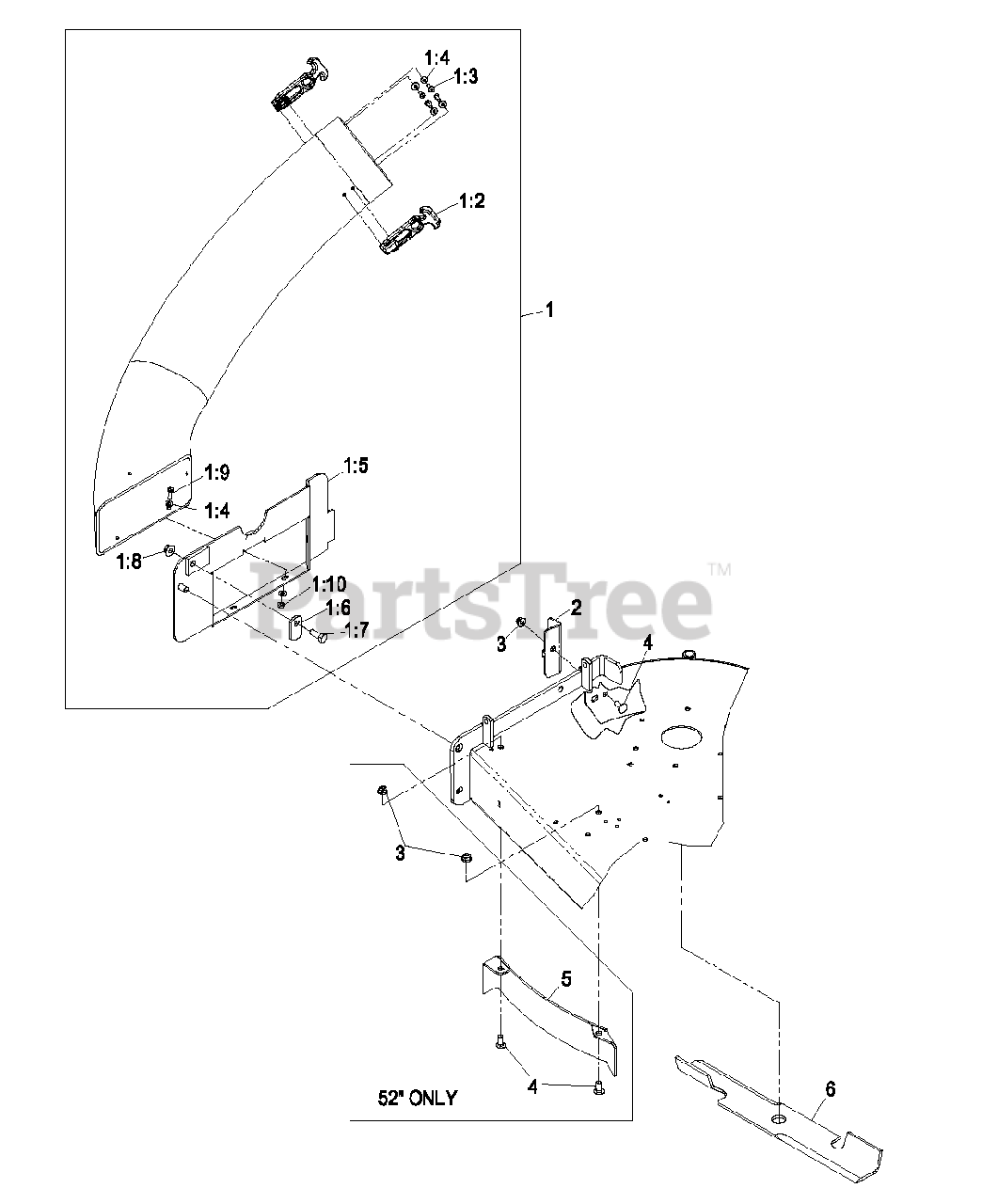

109-5200 - Exmark Ultra Vac Bagger for Quest Mower (SN: 670000 - 719999) (2007) Lower Chute Assembly Parts Diagram

Ultra Vac Bagger for Quest Mower

Lower Chute Assembly Parts Diagram

  • Title

1

Exmark 109-6769

TUBE AND STRAP ASM

$524.99

$

Usually ships in 3-6 days

0

1:2

Exmark 103-4080

LATCH-RUBBER

$31.99

$

In Stock, Qty 8

0

1:3

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

1:4

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

1:5

Exmark 109-6089-03

BOOT FRAME ASM

$168.99

$

Usually ships in 3-6 days

0

1:6

Exmark 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, Qty 7

0

1:7

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

1:8

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

1:9

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

1:10

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Exmark 109-5387-03

BRACKET-BOOT MOUNT, 52 IN

$27.99

$

Usually ships in 3-6 days

0

2

Exmark 109-6091-03

BRACKET-BOOT MOUNT, 48 IN

$60.99

$

In Stock, only 1 left!

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Exmark 109-5383-03

BAFFLE-DISCHARGE, 52 INCH

$72.99

$

Usually ships in 3-6 days

0

6

Exmark 109-6391

109-6391-S
(Superseded to 109-6391-S)

$32.99

$

In Stock, Qty 20+

0

6

Exmark 109-6392

Blade, 52" Bagger

$

$

Currently unavailable
