109-9764 - Exmark Ultra Vac Bagger for Quest Mower (SN: 790000 - 849999) (2009)

Ultra Vac Bagger for Quest Mower

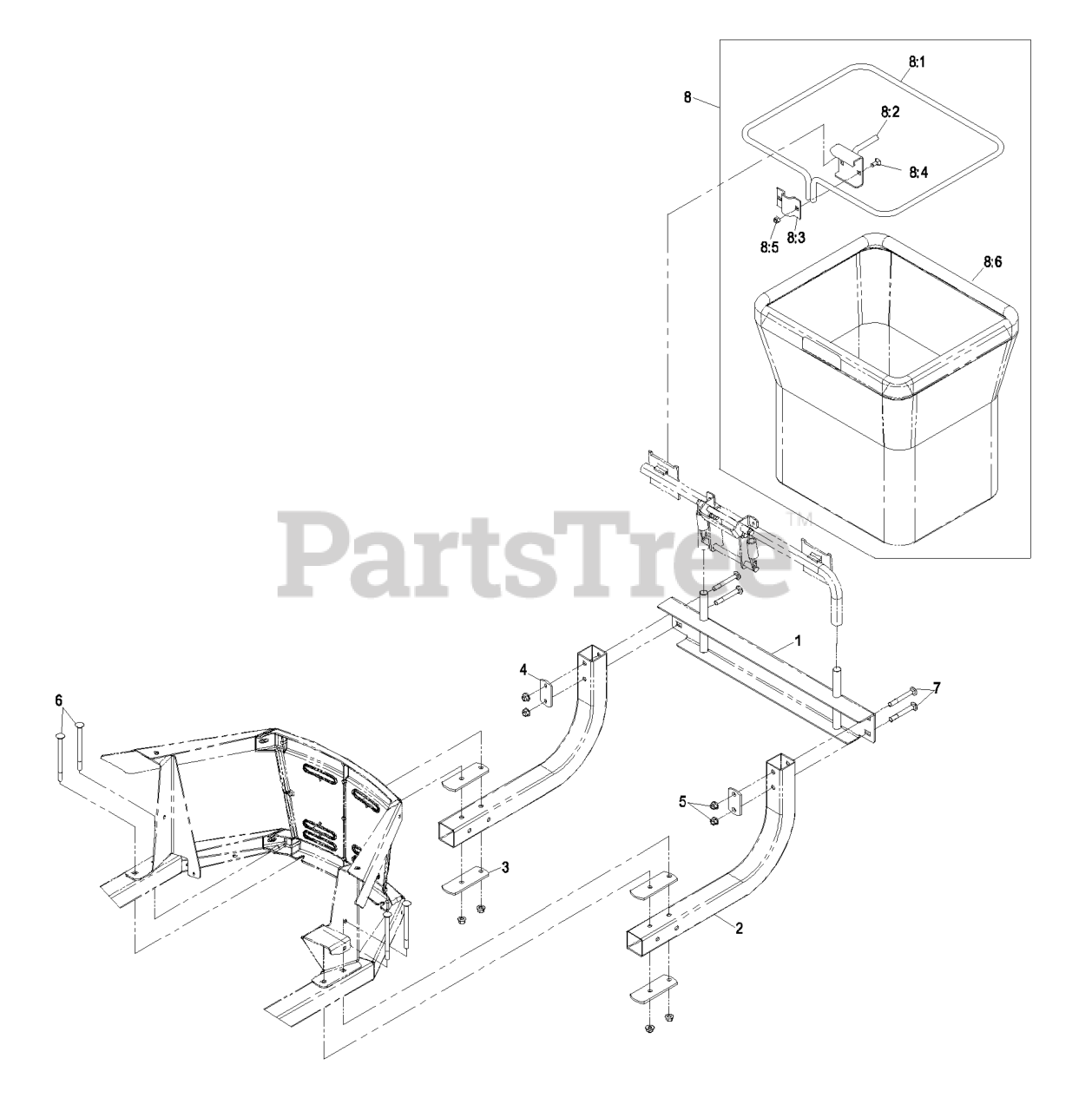

109-9764 - Exmark Ultra Vac Bagger for Quest Mower (SN: 790000 - 849999) (2009) > Parts Diagrams (8) > Bagger Frame Mount Assembly

  • Title
109-6094-03

1

Wld, Bagger Hitch

Part# 109-6094-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $150.66

109-5379-03

2

Tube, Upright

Part# 109-5379-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $102.81

109-6092-03

3

Plate, Reinforcement

Part# 109-6092-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.40

109-6093-03

4

Plate, Reinforcement

Part# 109-6093-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.23

104-8301

5

Nut, Nyloc 3/8-16 Flg

Part# 104-8301

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.89

109-6795

6

Bolt, Carriage 3/8-16 X 5

Part# 109-6795

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.34

3231-42

7

Bolt, Carriage 3/8-16 X 3

Part# 3231-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

116-1244

8

Asm, Bag

Part# 116-1244

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $115.37

114972-03

8:1

Frame, Bag

Part# 114972-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $78.87

112-4012-03

8:2

Asm, Hanger

Part# 112-4012-03 (Superseded to 114973-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.05

114974-03

8:3

Clamp

Part# 114974-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.58

3230-1

8:4

Bolt, Carriage 5/16-18 X 3/4

Part# 3230-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

3296-29

8:5

Nut, Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

116-1209

8:6

Bag

Part# 116-1209

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.26
