109-9764 - Exmark Ultra Vac Bagger for Quest Mower (SN: 790000 - 849999) (2009)

Ultra Vac Bagger for Quest Mower

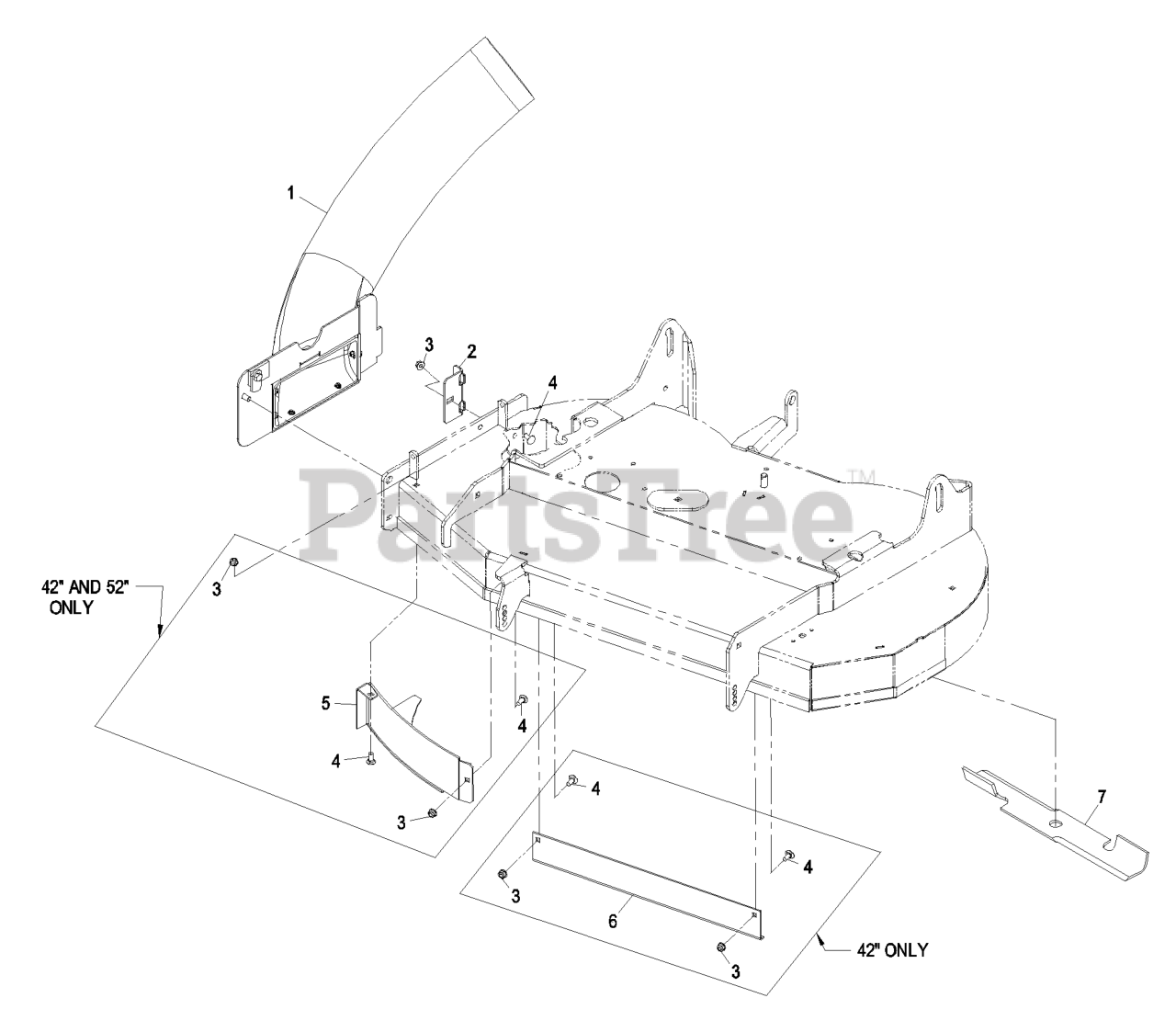

109-9764 - Exmark Ultra Vac Bagger for Quest Mower (SN: 790000 - 849999) (2009) > Parts Diagrams (8) > Lower Chute Assembly

  • Title
116-1261

1

Asm, Tube And Frame

Part# 116-1261

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $288.45

116-0646-03

2

Bracket, Bagger Mount 42"

Part# 116-0646-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.79

109-6091-03

Bracket, Bagger Mount 48"

Part# 109-6091-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.32

109-5389-03

Bracket, Bagger Mount 52"

Part# 109-5389-03

OEM Warranty Repair Part for Exmark

Currently unavailable

104-8300

3

Nut, Nyloc 5/16-18 Flg 42"

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

104-8300

Nut, Nyloc 5/16-18 Flg 48"

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

104-8300

Nut, Nyloc 5/16-18 Flg 52"

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

3230-23

4

Bolt, Carriage 5/16-18 X 3/4 42"

Part# 3230-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

3230-23

Bolt, Carriage 5/16-18 X 3/4 48"

Part# 3230-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

3230-23

Bolt, Carriage 5/16-18 X 3/4 52"

Part# 3230-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

116-1252-03

5

Wld, Discharge Baffle

Part# 116-1252-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $135.39

116-1253-03

6

Baffle, Center Bagger

Part# 116-1253-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $44.73

116-1202

7

Blade, Bagger 42"

Part# 116-1202

OEM Warranty Repair Part for Exmark

Currently unavailable

109-6391

Blade, Bagger 48"

Part# 109-6391 (Superseded to 109-6391-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.18

109-6392

Blade, Bagger 52"

Part# 109-6392

OEM Warranty Repair Part for Exmark

Currently unavailable
