10900 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 008900001 - 008999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12U802-1733-E1 Parts Diagram

48cm Walk-Behind Mower, Canada

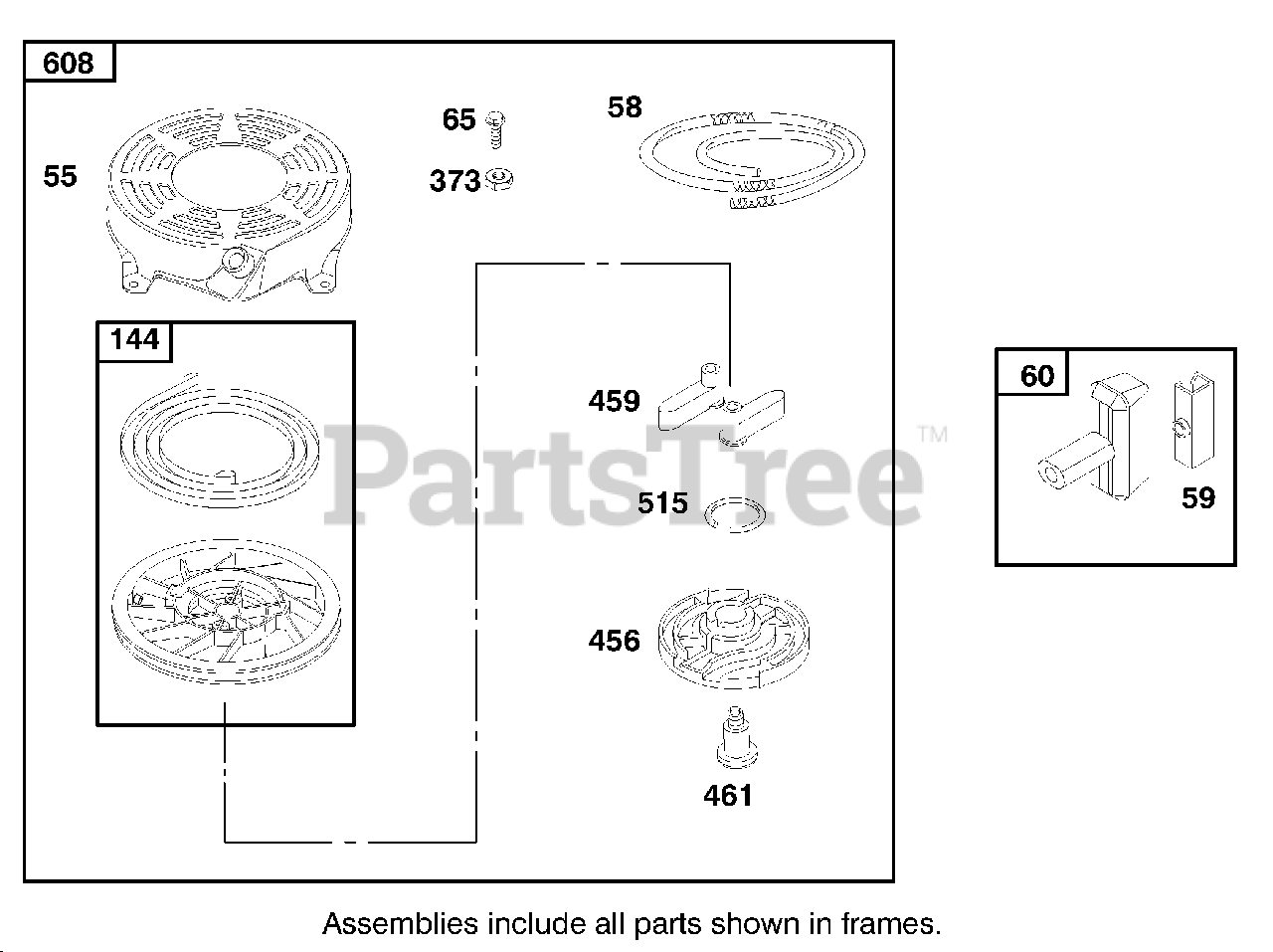

ENGINE BRIGGS & STRATTON MODEL 12U802-1733-E1 Parts Diagram

  • Title

55

Lawn-Boy 497440

Housing-Rewind Starter

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

58

Lawn-Boy 280399

Rope-Rewind Starter (Cut to Required Length)

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

59

Lawn-Boy T224467

Insert-Starter Grip

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

60

Lawn-Boy T494212

Handle-Rewind Starter

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

65

Lawn-Boy 94904

Screw-Hex.

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

144

Lawn-Boy 498144

Pulley-Rope Start

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

373

Lawn-Boy 94908

Nut-Hex.

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

456

Lawn-Boy 281503

Retainer-Rewind Starter

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

459

Lawn-Boy 281505

Pawl-Starter

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

461

Lawn-Boy 94943

Pin-Starter

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

515

Lawn-Boy 263073

Spring-Torsion

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

608

Lawn-Boy 497680

Starter-Rewind

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable
