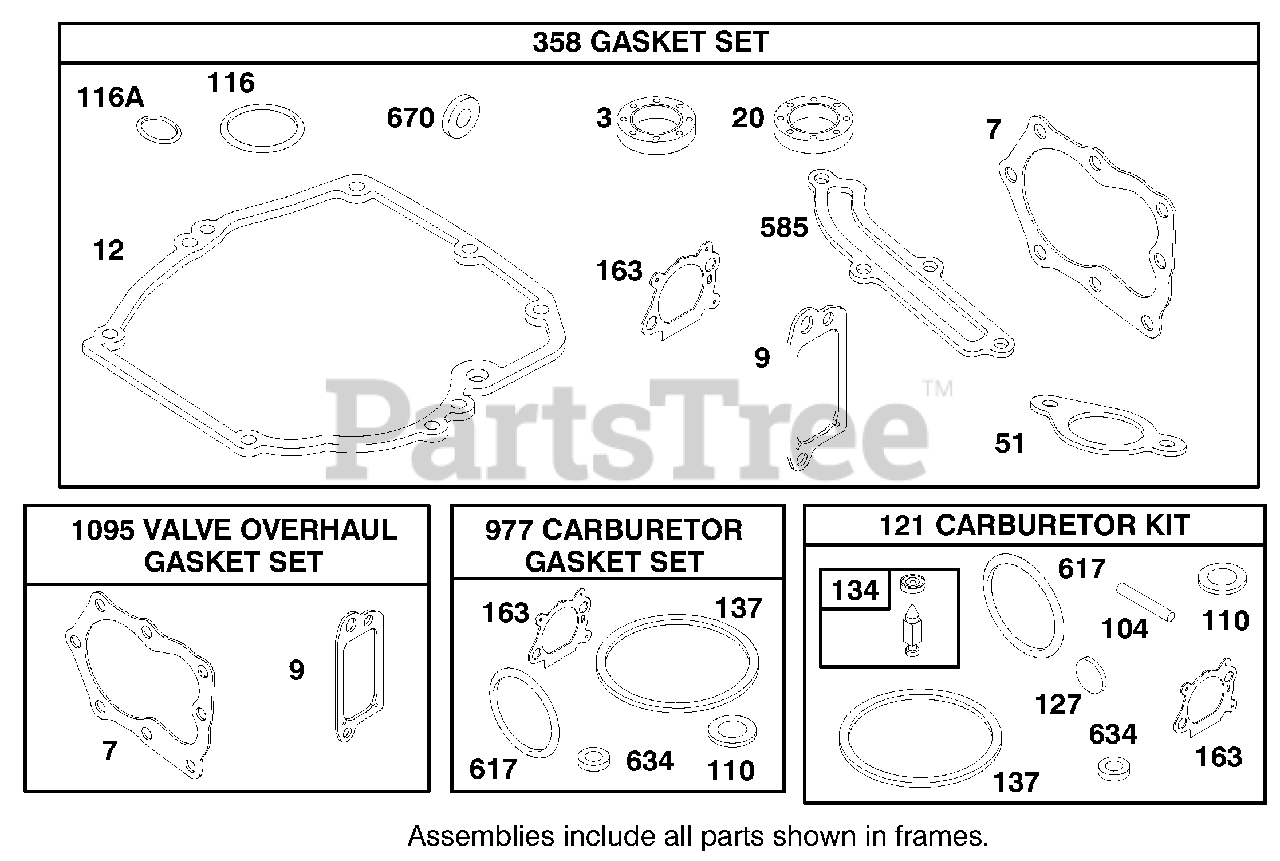

10900 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 008900001 - 008999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12U802-1733-E1 Parts Diagram

48cm Walk-Behind Mower, Canada

ENGINE BRIGGS & STRATTON MODEL 12U802-1733-E1 Parts Diagram

  • Title

3

Lawn-Boy 299819

Seal-Oil

Note: Obtain Parts from Briggs & Stratton. Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

7

Lawn-Boy 272916

Gasket-Cylinder Head

Note: Obtain Parts from Briggs & Stratton. Included in Gasket Set-Part No. 497316. Included in Valve Overhaul Gasket Set-Part No. 498528.

$

$

Currently unavailable

9

Lawn-Boy 272481

Gasket-Breather

Note: Obtain Parts from Briggs & Stratton. Included in Gasket Set-Part No. 497316. Included in Valve Overhaul Gasket Set-Part No. 498528.

$

$

Currently unavailable

12

Lawn-Boy 272198

Gasket-Crankcase

Note: Obtain Parts from Briggs & Stratton. Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

20

Lawn-Boy 399781

Seal-Oil

Note: Obtain Parts from Briggs & Stratton. Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

51

Lawn-Boy 272199

Gasket-Intake Elbow

Note: Obtain Parts from Briggs & Stratton. Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

104

Lawn-Boy T231371

Pin-Float Hinge

Note: Obtain Parts from Briggs & Stratton. Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

110

Gasket-Sealing (Sold in Kit Only)

Note: Obtain Parts from Briggs & Stratton. Included in Carburetor Kit-Part No. 498260. Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

116

Lawn-Boy 280393

Seal-O-Ring

Note: Obtain Parts from Briggs & Stratton. Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

116A

Lawn-Boy 280966

Seal-O-Ring

Note: Obtain Parts from Briggs & Stratton. Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

121

Lawn-Boy 498260

Carburetor Kit

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Obtain Parts from Briggs & Stratton. Included in Carburetor Kit-Part No. 498260.

$

$

Not available

134

Lawn-Boy 398188

Kit-Needle/Seat

Note: Obtain Parts from Briggs & Stratton. Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only)

Note: Obtain Parts from Briggs & Stratton. Included in Carburetor Kit-Part No. 498260. Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

163

Lawn-Boy 272653

Gasket-Air Cleaner

Note: Obtain Parts from Briggs & Stratton. Included in Gasket Set-Part No. 497316. Included in Carburetor Kit-Part No. 498260. Included in Carburetor Gasket Set-Part No. 498261.

$

$

Currently unavailable

358

Lawn-Boy 497316

Gasket Set

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

585

Lawn-Boy 272238

Gasket-Baffle Plate

Note: Obtain Parts from Briggs & Stratton. Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

617

Lawn-Boy 270344

Seal-Fuel Intake Tube

Note: Obtain Parts from Briggs & Stratton. Included in Carburetor Gasket Set-Part No. 498261. Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

634

Washer-Shaft (Sold in Kit Only)

Note: Obtain Parts from Briggs & Stratton. Included in Carburetor Gasket Set-Part No. 498261. Included in Carburetor Kit-Part No. 498260.

$

$

Not available

670

Lawn-Boy 493823

Spacer-Bracket (Includes 2)

Note: Obtain Parts from Briggs & Stratton. Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

977

Lawn-Boy 498261

Gasket Set-Carburetor

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable

1095

Lawn-Boy 498528

Gasket Set-Valve Overhaul

Note: Obtain Parts from Briggs & Stratton.

$

$

Currently unavailable
