10910 B - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 006900001 - 006999999) (1996) ENGINE BRIGGS & STRATTON MODEL 122802-3214-01 Parts Diagram

48cm Walk-Behind Mower, Canada

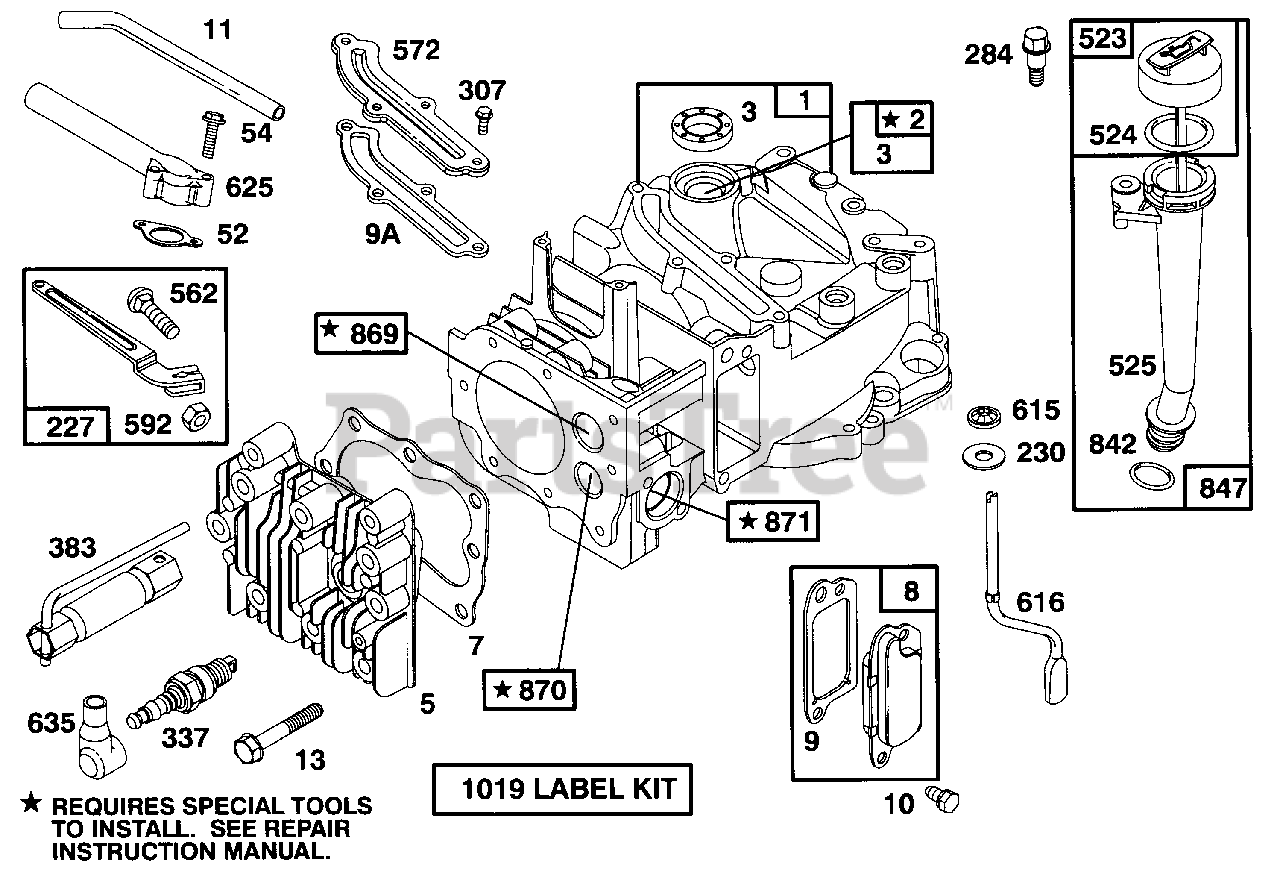

ENGINE BRIGGS & STRATTON MODEL 122802-3214-01 Parts Diagram

  • Title
1

Lawn-Boy 493260

Cylinder Assembly

$

$

Currently unavailable

2

Lawn-Boy 293708

Bushing-Cylinder

$

$

Currently unavailable

3

Lawn-Boy 299819

Seal-Oil

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

5

Lawn-Boy 213861

Head-Cylinder

$

$

Currently unavailable

7

Lawn-Boy 272200

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

8

Lawn-Boy 495786

Breather-Valve Chamber

$

$

Currently unavailable

9

Lawn-Boy 272481

Gasket-Valve Cover

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

9A

Lawn-Boy 272238

Gasket-Baffle Plate

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

10

Lawn-Boy 94650

Screw-Breather Mtg.

$

$

Currently unavailable

11

Lawn-Boy 231933

Tube-Breather

$

$

Currently unavailable

13

Lawn-Boy 94547

Screw-Cylinder Head

$

$

Currently unavailable

52

Lawn-Boy 272199

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

54

Lawn-Boy 94526

Screw-Intake Elbow Mtg.

$

$

Currently unavailable

227

Lawn-Boy 492349

Lever Assembly-Gov.

$

$

Currently unavailable

230

Lawn-Boy 67072

Washer-Gov. Crank

$

$

Currently unavailable

284

Lawn-Boy 94511

Screw-Hex. Head

$

$

Currently unavailable

307

Lawn-Boy 94515

Screw-Hex. Head

$

$

Currently unavailable

337

Lawn-Boy 802592

Plug-Spark

$

$

Currently unavailable

383

Lawn-Boy 89838

Wrench-Spark Plug

$

$

Currently unavailable

523

Lawn-Boy 495264

Cap With Dipstick-Oil Filler

$

$

Currently unavailable

524

Lawn-Boy 280393

Seal-Filler Tube

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

525

Lawn-Boy 495265

Tube-Oil Filler

$

$

Currently unavailable

562

Lawn-Boy 92613

Bolt-Governor Lever

$

$

Currently unavailable

572

Lawn-Boy 224328

Baffle-Cylinder

$

$

Currently unavailable

592

Lawn-Boy 231082

Nut-Hex.

$

$

Currently unavailable

615

Lawn-Boy 94474

Fastener

$

$

Currently unavailable

616

Lawn-Boy 262578

Crank-Governor

$

$

Currently unavailable

625

Lawn-Boy 281085

Tube-Fuel Intake

$

$

Currently unavailable

635

Lawn-Boy 66538

Elbow-Spark Plug

$

$

Currently unavailable

842

Lawn-Boy 280966

Seal-O-Ring

Note: Included in Gasket Set-Part No. 496117.

$

$

Currently unavailable

847

Lawn-Boy 495263

Oil Fill Tube and Dipstick Assy.

$

$

Currently unavailable

869

Lawn-Boy 213512

Seat-Intake Valve

$

$

Currently unavailable

870

Lawn-Boy 213513

Seat-Exhaust Valve

$

$

Not available

871

Lawn-Boy 262001

Guide-Exhaust Valve Note: 63709 Guide Intake Valve

$

$

Currently unavailable

1019

Lawn-Boy 494256

Label Kit

$

$

Currently unavailable
