10915 B - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 004900001 - 004999999) (1994) SHROUD & BLOCK ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

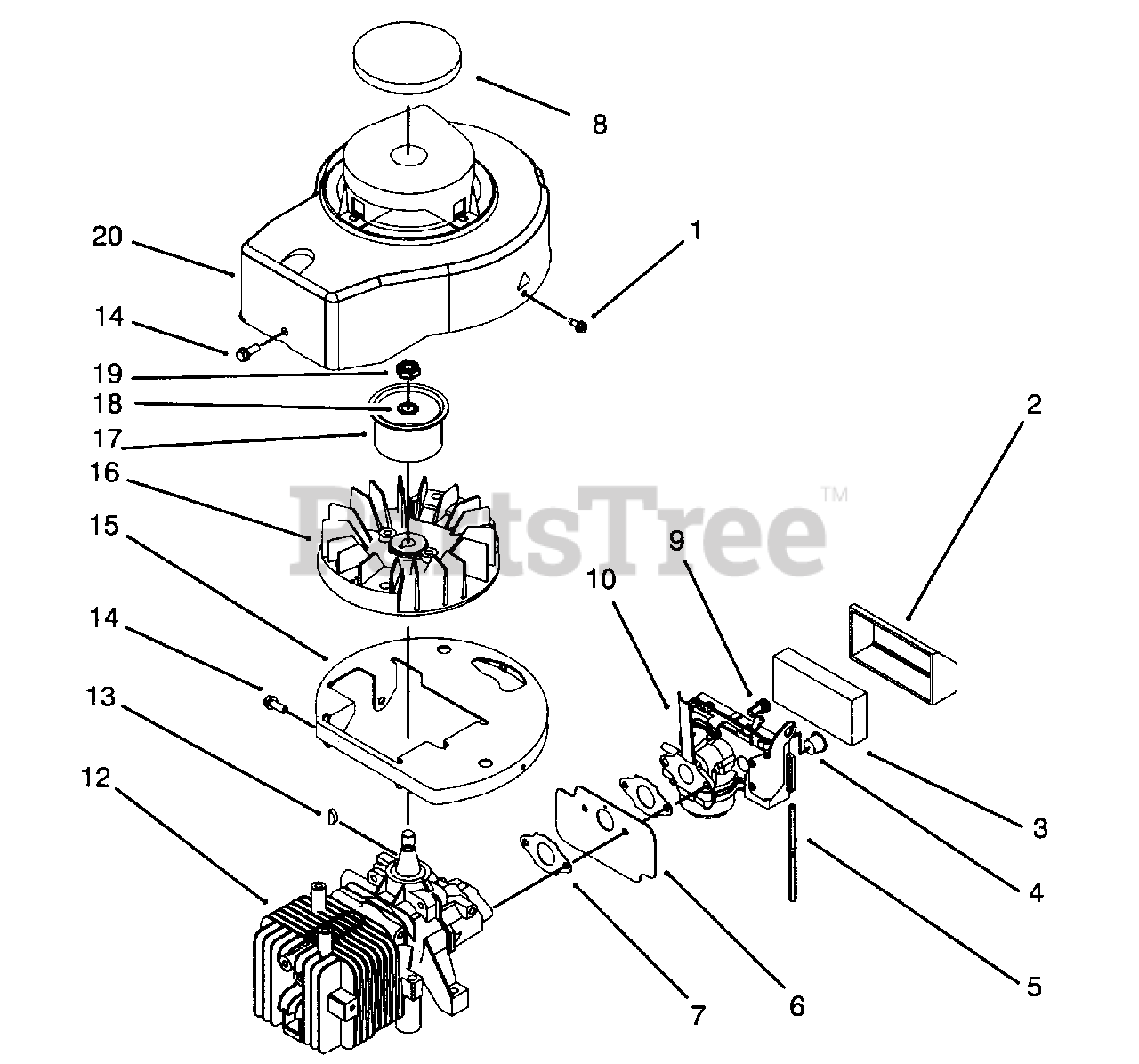

SHROUD & BLOCK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614699

Screw

$1.99

$

In Stock, Qty 11

0

2

Lawn-Boy 610728

Cover-Air Filter
(Superseded to 93-1231)

$

$

Not available

3

Lawn-Boy 609493

Element-Air Filter
(Superseded to 107-4621)

$4.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 611545

Plug
(Superseded to 93-4320)

$

$

Not available

5

Lawn-Boy 44-3174

Hose-Primer

$4.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 92-4947

Shield-Carburetor
(Superseded to 93-1221)

$

$

Not available

7

Lawn-Boy 92-4948

Gasket-Carburetor

$1.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 92-1201

Disc-Foam

$

$

Currently unavailable

9

Lawn-Boy 609482

Screw

$2.49

$

In Stock, Qty 8

0

10

Lawn-Boy 92-9695

Carburetor Assembly
(Superseded to 93-4331)

$242.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 92-1215

Short Block Assembly

$

$

Currently unavailable

13

Lawn-Boy 607199

Key

$4.99

$

In Stock, Qty 12

0

14

Lawn-Boy 614702

Screw
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 12

0

15

Lawn-Boy 614675

Base-Shroud
(Superseded to 93-1216-03)

$

$

Not available

16

Lawn-Boy 684743

Flywheel Assembly

$

$

Not available

17

Lawn-Boy 614640

Hub-Starter

$34.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 316959

Washer-Lock
(Superseded to 325-36)

$8.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 130743

Nut

$2.99

$

In Stock, Qty 7

0

20

Lawn-Boy 92-4946

Shroud
(Superseded to 107-4605)

$

$

Not available
