10915 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 007900001 - 007999999) (1997) BRAKE AND MUFFLER ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

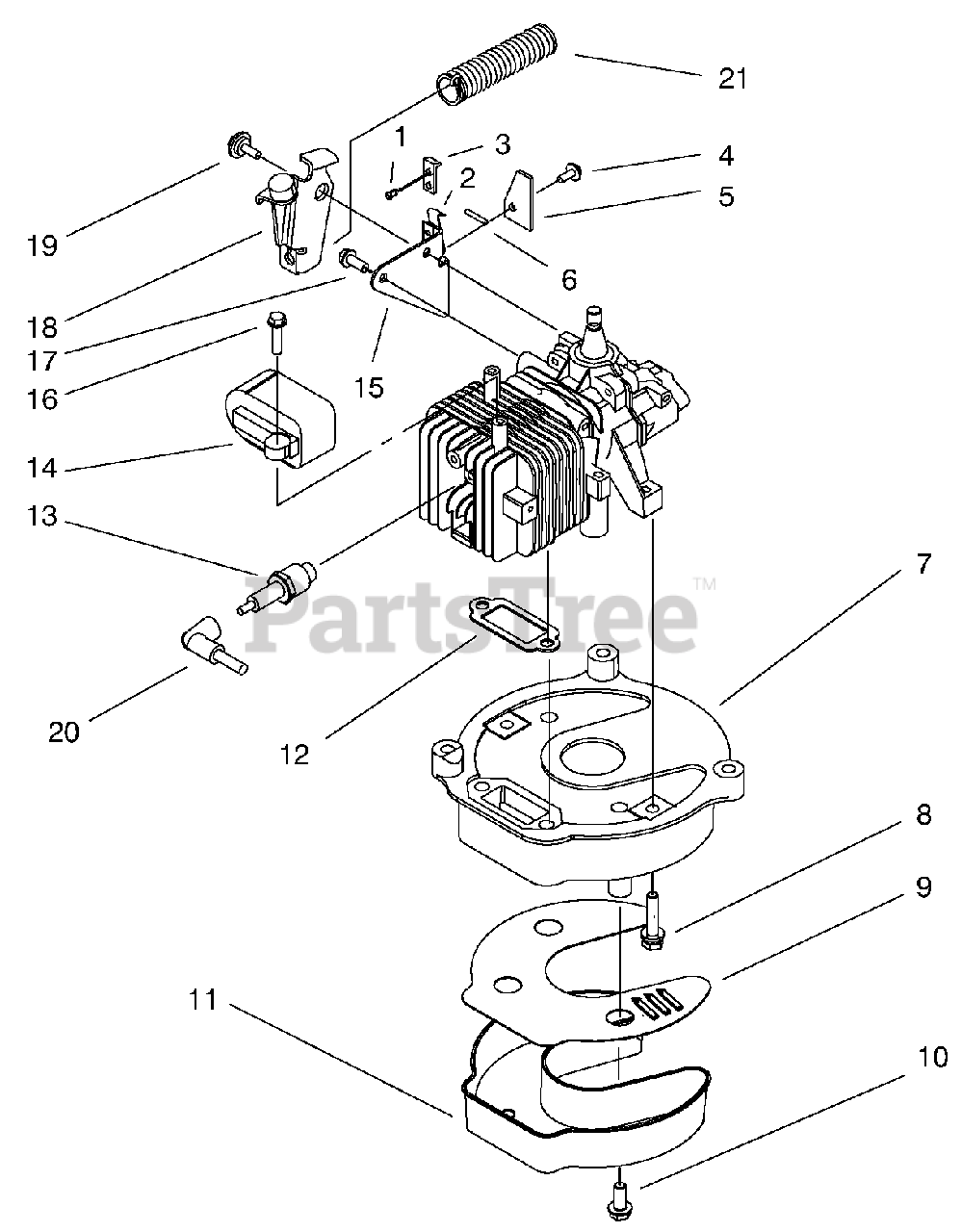

BRAKE AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3290-459

RIVET-PLASTIC

$1.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 60-9010

STRAP-GROUND

$11.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 92-2925

STRAP-INSULATION

$1.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 53-4690

STOP-GROUND STRAP

$3.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 92-1156

ELECTRICAL LEAD ASM

$7.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 614654

PLATE-MUFFLER V

$103.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 607601

SCREW V

$3.99

$

In Stock, Qty 5

0

9

Lawn-Boy 93-1217

BAFFLE-MUFFLER

$7.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 609471

SCREW

$4.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 93-1108

Cover-Muffler
(Superseded to 93-1108-03)

$

$

Not available

12

Lawn-Boy 93-1233

GASKET-EXH. VF

$1.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 614008

Plug-Spark
(Superseded to 614009)

$5.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 684049

Ignition Assembly (Incl. Ref. #20)
(Superseded to 99-2916)

$78.99

$

In Stock, Qty 9

0

15

Lawn-Boy 84-7820

PLATE-BRAKE

$12.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 613208

SCREW

$1.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 614702

SCREW
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 12

0

18

Lawn-Boy 66-5380

BRAKE PLATE ASM

$67.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 92-9698

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

20

Lawn-Boy 684179

HI-TENS.LEAD SM

$27.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 66-5370

SPRING-COMPRESSION

$11.99

$

Usually ships in 3-6 days

0
