10915 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 008900001 - 008999999) (1998) ENGINE ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

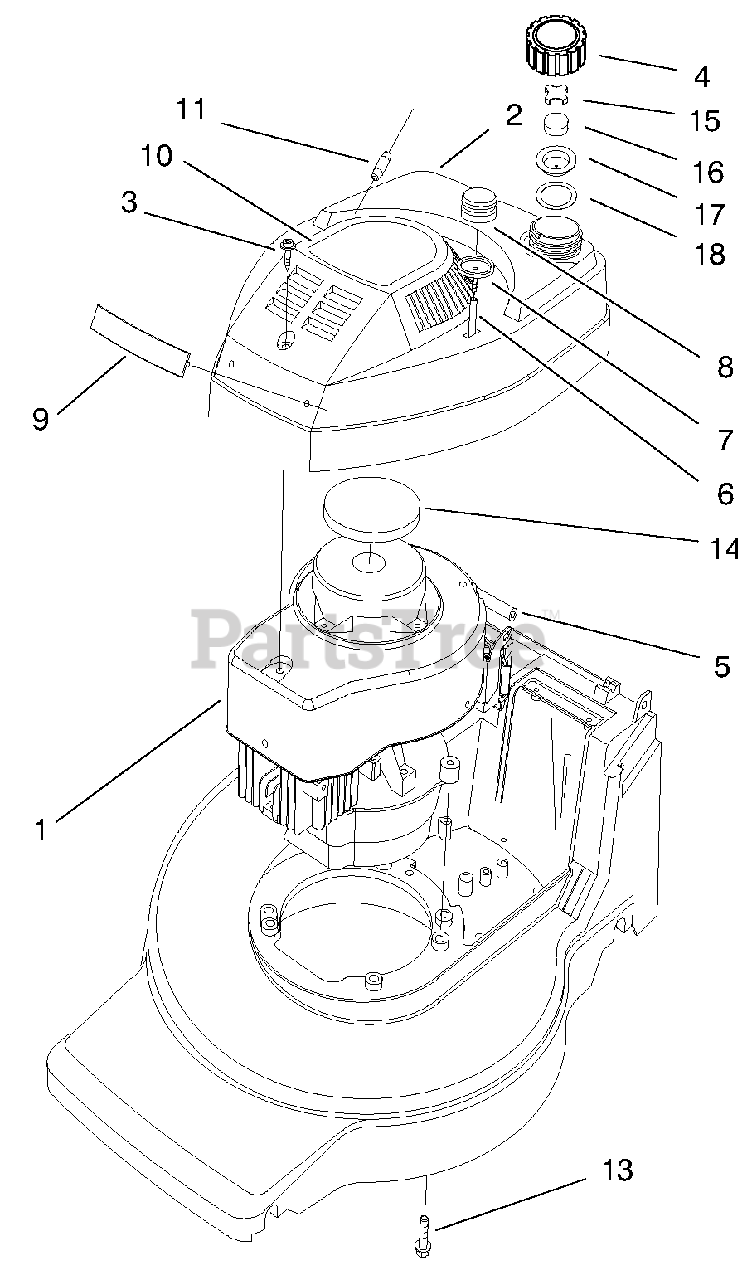

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine Assembly

$

$

Not available

2

Lawn-Boy 92-8898

Shroud & Tank Assembly

$237.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 93-4302

Screw

$6.99

$

In Stock, Qty 5

0

4

Lawn-Boy 93-3660

Fuel Cap Assembly
(Superseded to 98-8344)

$23.99

$

In Stock, only 3 left!

0

5

Lawn-Boy 612782

Gas Line

$6.49

$

In Stock, Qty 19

0

6

Lawn-Boy 44-3174

Hose Primer

$4.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 92-8615

Applique-Shroud

$24.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 92-8828

Decal-Shroud Top

$

$

Not available

11

Lawn-Boy 92-1701

Rope-Stop
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 32144-102

Screw

$3.49

$

In Stock, Qty 5

0

14

Lawn-Boy 93-1201

Disc-Foam

$5.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 93-3175

Baffle

$3.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 609150

Baffle-Foam

$5.49

$

In Stock, Qty 9

0

17

Lawn-Boy 93-1230

Cover

$

$

Not available

18

Lawn-Boy 613311

Gasket

$3.49

$

Usually ships in 3-6 days

0
