10924 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 210000001 - 210999999) (2001) CLUTCH ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

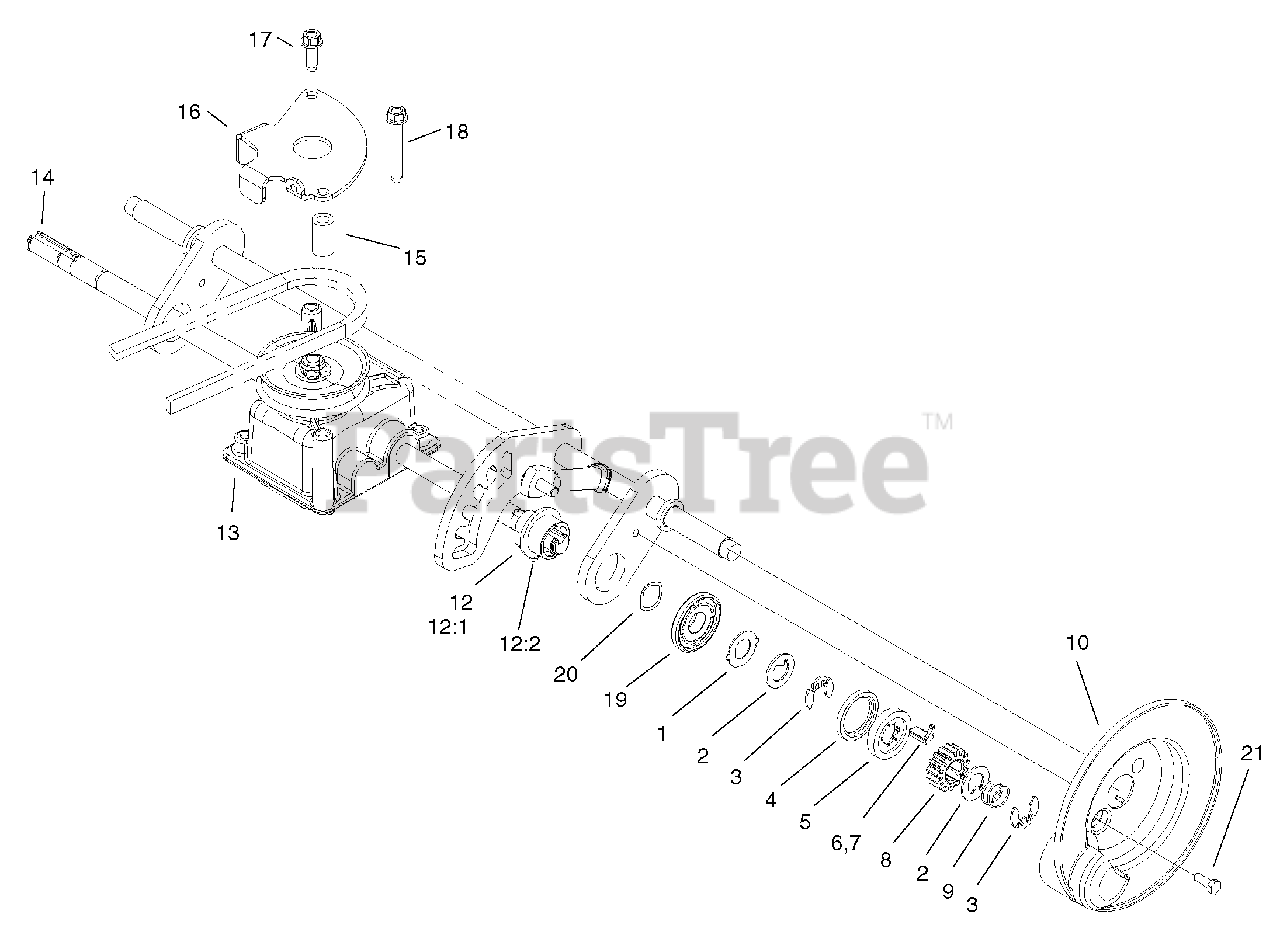

CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 65-4730

Washer-Arm, Pivot (only on: 10929)

$2.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 65-4740

Washer-Thrust, Keyed (only on: 10929)

$2.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 65-2720

Ring-Klip (only on: 10929)

$1.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 65-2720

Ring-Klip (only on: 10924)

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 65-4710

Ring-Friction (only on: 10929)

$2.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 65-4760

Washer-Clutch (only on: 10929)

$1.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 66-6040

Key-Rocking, RH (only on: 10929)
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 66-6050

Key-Rocking, LH (only on: 10929)
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 65-4750

Gear-Pinion (only on: 10929)

$11.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 65-4720

Spring-Compression (only on: 10929)

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 100-1513

Cover-Gear

$21.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 100-9118

Bushing ASM

$18.99

$

Usually ships in 3-6 days

0

12:1

Lawn-Boy 99-6463

Bushing-Drive Shaft

$

$

Not available

12:2

Lawn-Boy 302-56

Fitting-Zerk

$5.49

$

In Stock, Qty 8

0

13

Lawn-Boy 104-7593

Gear Case ASM (only on: 10929)

$

$

Not available

14

Lawn-Boy 100-1512

Shaft-Pivot (only on: 10924)

$

$

Not available

15

Lawn-Boy 614673

Bushing-Plate, Actuator (only on: 10929)

$11.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 100-1524-03

Guide-Transmission (only on: 10929)

$9.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 49-2040

Screw-Tapping (only on: 10929)

$2.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 92-1616

Screw-HWHTF (only on: 10929)

$3.49

$

In Stock, only 1 left!

0

19

Lawn-Boy 100-1511

Retainer-Ring (only on: 10929)

$

$

Not available

20

Lawn-Boy 100-1515

Washer-Wave (only on: 10929)

$10.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 32144-1

Screw-Taptite

$3.49

$

In Stock, Qty 20+

0
