10924 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 210000001 - 210999999) (2001) DECK, DOOR AND RAMP ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

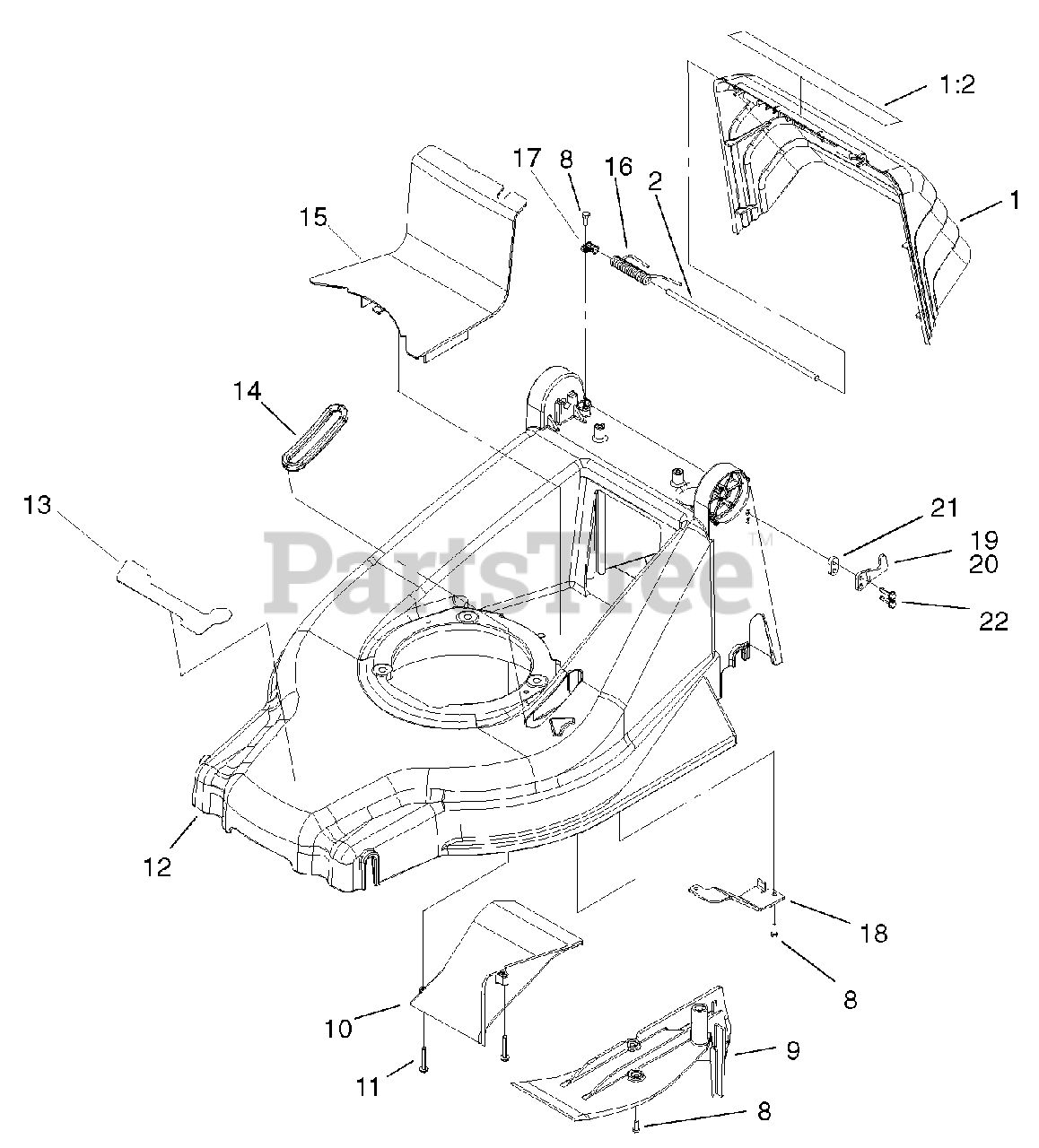

DECK, DOOR AND RAMP ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 100-9115

Door ASM

$83.99

$

Usually ships in 3-6 days

0

1:2

Lawn-Boy 93-4105

Decal-Danger
(Superseded to 112-8759)

$14.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 100-1509

Rod-Pivot, Door

$5.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 32144-1

Screw-Taptite

$3.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 99-6486

Kicker-Cover, Rear

$

$

Not available

10

Lawn-Boy 100-1506

Ramp-Discharge

$21.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 100-4352

Screw-HWH

$2.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 104-7580

Deck

$1143.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 100-4388

Decal-Deck

$32.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 100-3932

Boot-HOC

$

$

Not available

15

Lawn-Boy 99-6479

Belt Cover

$24.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 104-7594

Spring-Torsion, Door

$13.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 98-2256

Clamp

$5.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 100-9123-03

Bracket-Deck

$10.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 104-7557

Hook-Left

$

$

Not available

20

Lawn-Boy 104-7558

Hook-Right

$

$

Not available

21

Lawn-Boy 104-7556

Spacer

$6.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 100-4351

Screw-HWH

$1.99

$

Usually ships in 3-6 days

0
