10924 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 210000001 - 210999999) (2001) SHORT BLOCK ASSEMBLY NO. 93-4349 Parts Diagram

48cm Walk-Behind Mower, Canada

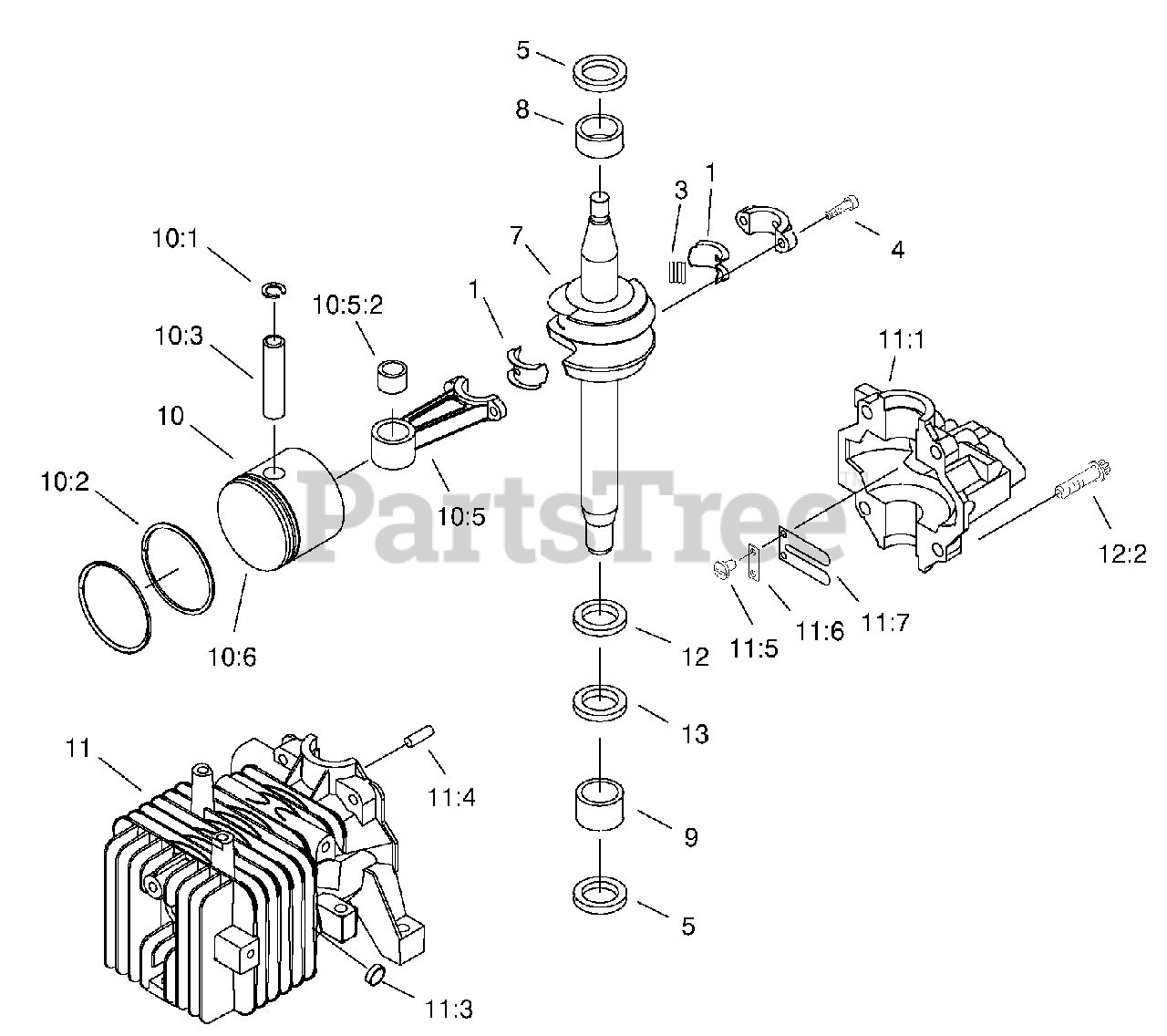

SHORT BLOCK ASSEMBLY NO. 93-4349 Parts Diagram

  • Title

1

Lawn-Boy 677982

Liner ASM

$40.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 683911

Bearing-Needle

$23.99

$

In Stock, Qty 5

0

4

Lawn-Boy 611393

Screw-HSH

$19.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 611396

Seal-Oil

$5.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-5713

Crankshaft

$284.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 681830

Bearing

$35.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 681831

Bearing

$23.99

$

In Stock, Qty 5

0

10

Piston & Connecting Rod

Note: Not serviced

$

$

Not available

10:1

Lawn-Boy 303712

Ring-Retaining

$2.99

$

In Stock, Qty 13

0

10:2

Lawn-Boy 681737

F-Ring Set

$

$

Not available

10:3

Lawn-Boy 606608

Pin-Wrist
(Superseded to 94-5774)

$9.99

$

Usually ships in 3-6 days

0

10:5

Lawn-Boy 92-4921

Connecting Rod ASM

$206.99

$

In Stock, only 2 left!

0

10:5:2

Lawn-Boy 92-4927

Bearing

$33.99

$

Usually ships in 3-6 days

0

10:6

Lawn-Boy 92-4923

Piston & Ring

$

$

Not available

11

Cylinder & Crankcase ASM

Note: Not serviced

$

$

Not available

11:1

Lawn-Boy 93-4347

Cyl & C/Case

$

$

Not available

11:3

Lawn-Boy 609123

Plug-Core

$2.99

$

Usually ships in 3-6 days

0

11:4

Lawn-Boy 609629

Dowel

$

$

Not available

11:5

Lawn-Boy 612872

Screw-HH

$2.49

$

In Stock, Qty 7

0

11:6

Lawn-Boy 602587

Plate-Backup, Reed

$2.99

$

Usually ships in 3-6 days

0

11:7

Lawn-Boy 602588

Reed-Carburetor

$

$

Not available

11:2

Lawn-Boy 614636

Screw-HWH

$

$

Not available

12

Lawn-Boy 252-76

Bearing-Thrust

$21.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 252-80

Washer-Thrust

$8.99

$

Usually ships in 3-6 days

0
