10927 - Lawn-Boy 51cm Walk-Behind Mower, Canada (SN: 200000001 - 200999999) (2000) CARBURETOR ASSEMBLY Parts Diagram

51cm Walk-Behind Mower, Canada

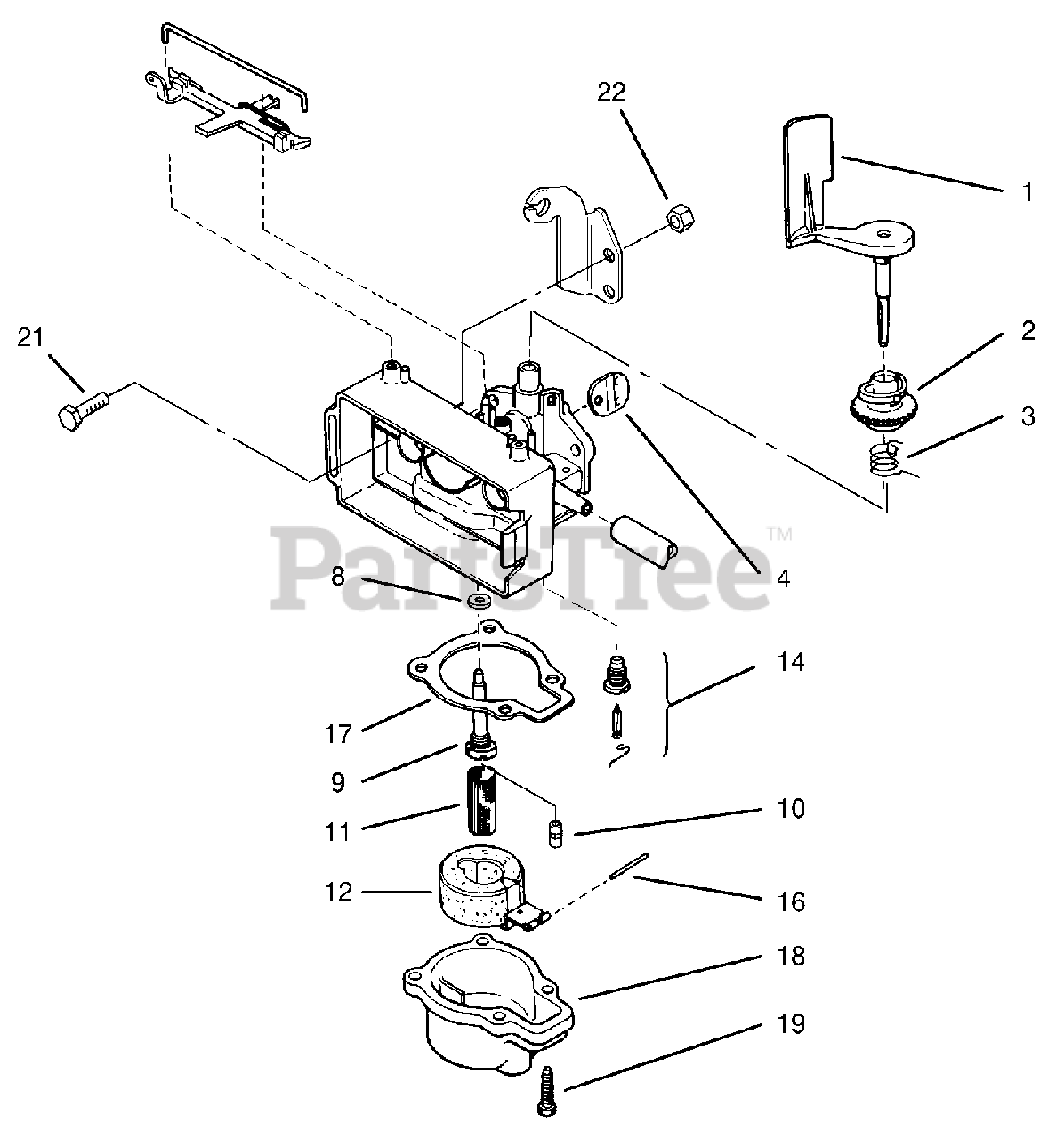

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-6376

Air Vane & Shaft
(Superseded to 104-4430)

$11.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 610834

Collar-Adjust, Airvane

$3.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 610833

Spring-Throttle

$

$

Not available

4

Lawn-Boy 92-6373

Disc-Throttle

$4.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 612383

Washer

$1.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 92-6371

Nozzle

$

$

Not available

10

Lawn-Boy 92-6370

Main Jet

$13.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 611071

Filter-Fuel

$15.99

$

In Stock, only 3 left!

0

12

Lawn-Boy 678113

Float & Arm ASM

$

$

Not available

14

Lawn-Boy 92-9697

Valve/Seat-Float

$21.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 92-6389

Pin-Straight

$5.49

$

In Stock, only 3 left!

0

17

Lawn-Boy 98-1362

Gasket

$2.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 92-9691

Chamber-Float

$37.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 608850

Screw-HH

$1.99

$

In Stock, Qty 5

0

21

Lawn-Boy 613269

Screw

$1.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 306531

Nut-Hex
(Superseded to 3217-26)

$1.99

$

In Stock, Qty 5

0
