10927 - Lawn-Boy 51cm Walk-Behind Mower, Canada (SN: 200000001 - 200999999) (2000) GEAR CASE ASSEMBLY NO. 93-0240 Parts Diagram

51cm Walk-Behind Mower, Canada

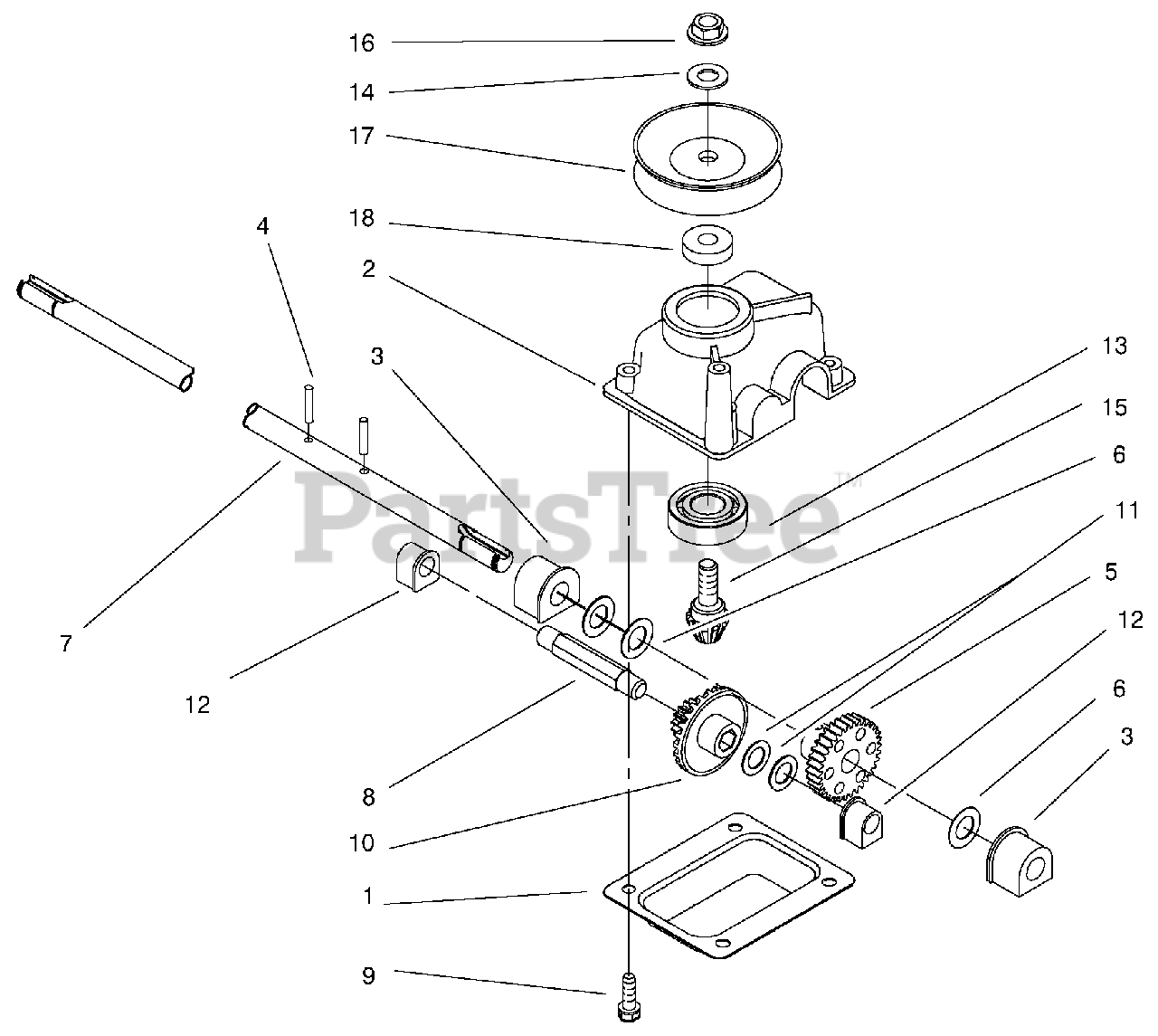

GEAR CASE ASSEMBLY NO. 93-0240 Parts Diagram

  • Title

1

Lawn-Boy 614668-03

Cover-Gear Case

$7.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-7727

Gearcase
(Superseded to 104-7619)

$38.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 60-8850

Bushing-Output

$7.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 3285-19

Pin-Groove

$2.99

$

In Stock, Qty 15

0

5

Lawn-Boy 614596

Gear

$46.99

$

In Stock, Qty 5

0

6

Lawn-Boy 36-4780

Washer

$7.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 93-0239

Shaft-Output
(Superseded to 104-7670)

$122.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 614696

Shaft-Intermediate

$94.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 49-2040

Screw-Taptite

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 55-3760

Gear-Bevel
(Superseded to 104-7668)

$30.99

$

In Stock, Qty 6

0

11

Lawn-Boy 36-4791

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 60-8750

Bushing

$5.99

$

In Stock, Qty 12

0

13

Lawn-Boy 38-7820

Bearing-Ball

$13.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 60-8890

Gear-Bevel, Pinion
(Superseded to 104-7667)

$15.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 3296-5

Nut-Lock, NI

$3.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 100-1176

Pulley-Half

$8.49

$

In Stock, Qty 8

0

18

Lawn-Boy 62-6660

Spacer

$1.49

$

In Stock, Qty 6

0
