10927 - Lawn-Boy 51cm Walk-Behind Mower, Canada (SN: 200000001 - 200999999) (2000) HANDLE & CONTROLS ASSEMBLY Parts Diagram

51cm Walk-Behind Mower, Canada

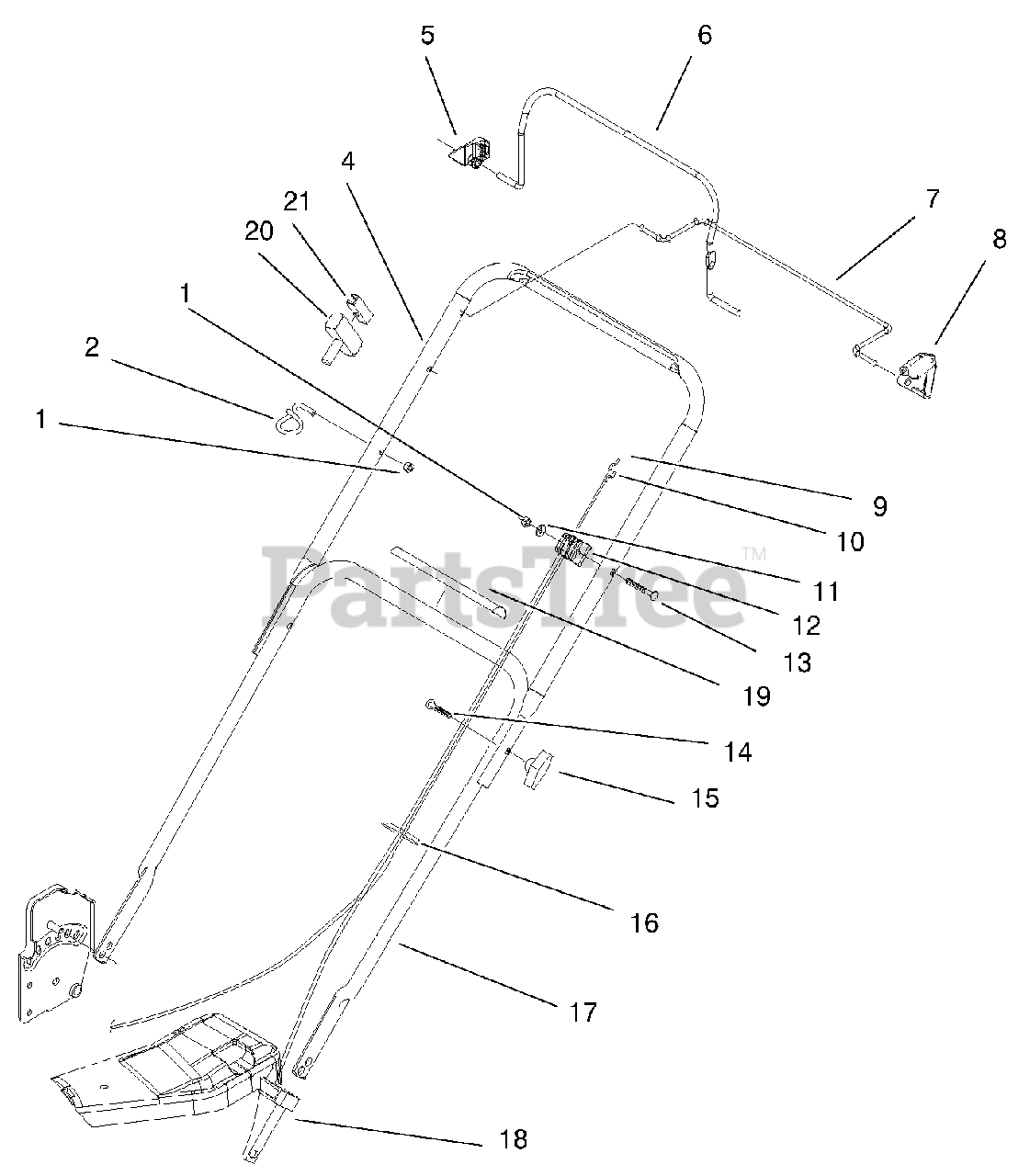

HANDLE & CONTROLS ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3296-73

Nut-Lock, NI

$5.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 86-9671

Guide-Rope

$4.49

$

In Stock, Qty 18

0

4

Lawn-Boy 99-1569-05

Handle-Upper

$208.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 94-6097

Stop

$9.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 99-1570-03

Bail-Brake

$

$

Not available

7

Lawn-Boy 99-1571-03

Bail-Traction

$11.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 99-1586

Cable-Traction

$22.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 100-9969

Brake Cable ASM

$71.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 94-6096

Anchor-Cable

$6.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 92-2269

Screw-Handle

$6.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 92-2260

Screw-Handle

$3.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 98-7134

Knob-Handle

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 14

0

17

Lawn-Boy 99-6021-05

Lower Handle

$

$

Not available

18

Lawn-Boy 93-7380

Anchor-Cable

$12.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 98-3248

Decal-Operation

$

$

Not available

20

Lawn-Boy 612825

Handle-Start
(Superseded to 81-1630)

$18.99

$

In Stock, Qty 6

0

21

Lawn-Boy 612824

Starter-Clip

$3.99

$

In Stock, Qty 13

0
