10927 - Lawn-Boy 51cm Walk-Behind Mower, Canada (SN: 210000001 - 210999999) (2001) ENGINE & BLADE ASSEMBLY Parts Diagram

51cm Walk-Behind Mower, Canada

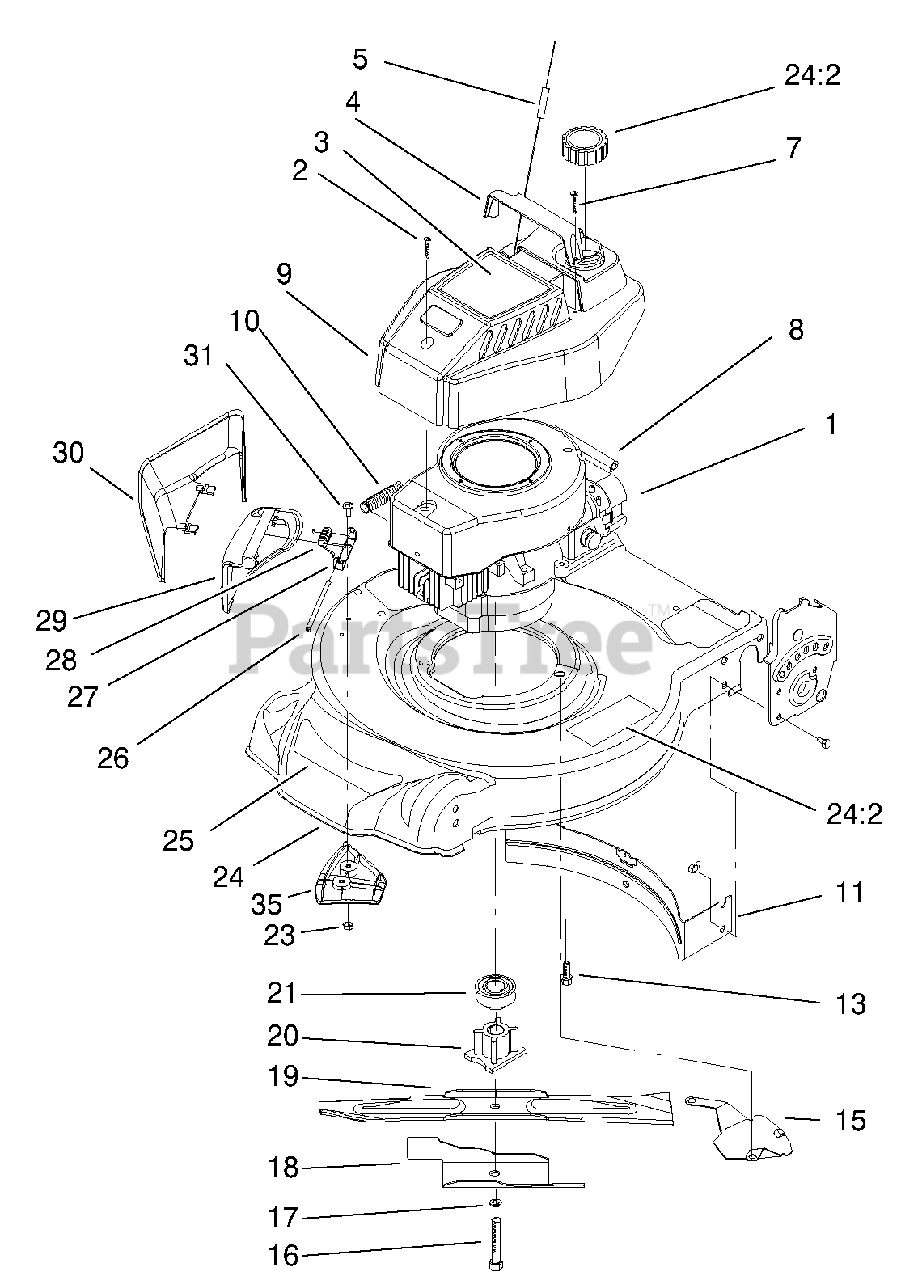

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

2

Lawn-Boy 93-4302

Screw

$6.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 100-8782

Decal-Recoil

$

$

Not available

4

Lawn-Boy 93-1200

Strap-Tank

$

$

Not available

5

Lawn-Boy 92-1701

Stop-Rope
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 55-3578

Gas Cap Assembly

$

$

Not available

7

Lawn-Boy 32104-118

Screw-PPH

$1.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 68-3632

Fuel Line

$4.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 92-6396

Tank/Shroud

$95.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 66-5370

Spring-Compression

$11.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 93-0223-03

Baffle-Rear

$25.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 95-1726

Screw-Taptite W/Patch

$2.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 93-4196-03

Shield-Grass

$13.99

$

In Stock, only 3 left!

0

16

Lawn-Boy 26-0670

Screw-Blade

$

$

Not available

17

Lawn-Boy 3253-22

Washer-Lock

$2.99

$

In Stock, Qty 5

0

18

Lawn-Boy 93-0219-03

Accelerator

$22.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 93-0241

Blade-21",Rec,Gen.ii
(Superseded to 93-0241-03)

$39.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 52-7320

Blade Retainer

$65.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 93-0278

Pulley-Driver

$43.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 32128-32

Nut-HHF

$2.99

$

In Stock, Qty 8

0

24

Lawn-Boy 104-0216

Housing

$800.99

$

Usually ships in 3-6 days

0

24:2

Lawn-Boy 93-4105

Decal-Danger
(Superseded to 112-8759)

$14.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 100-8781

Decal-Deck

$

$

Not available

26

Lawn-Boy 99-5291

Rod-Cover
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 99-5292

Bracket-Cover
(Superseded to 119-7079)

$10.99

$

In Stock, Qty 5

0

28

Lawn-Boy 99-5293

Spring-Torsion

$9.99

$

In Stock, Qty 15

0

29

Lawn-Boy 99-5294

Cover-Side

$19.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 99-5295

Chute-Side

$13.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 3229-11

Screw-CARR

$1.49

$

In Stock, Qty 20+

0

35

Lawn-Boy 99-6349

Baffle

$21.99

$

Usually ships in 3-6 days

0
