10927 - Lawn-Boy 51cm Walk-Behind Mower, Canada (SN: 210000001 - 210999999) (2001) SHORT BLOCK ASSEMBLY NO. 94-5731 Parts Diagram

51cm Walk-Behind Mower, Canada

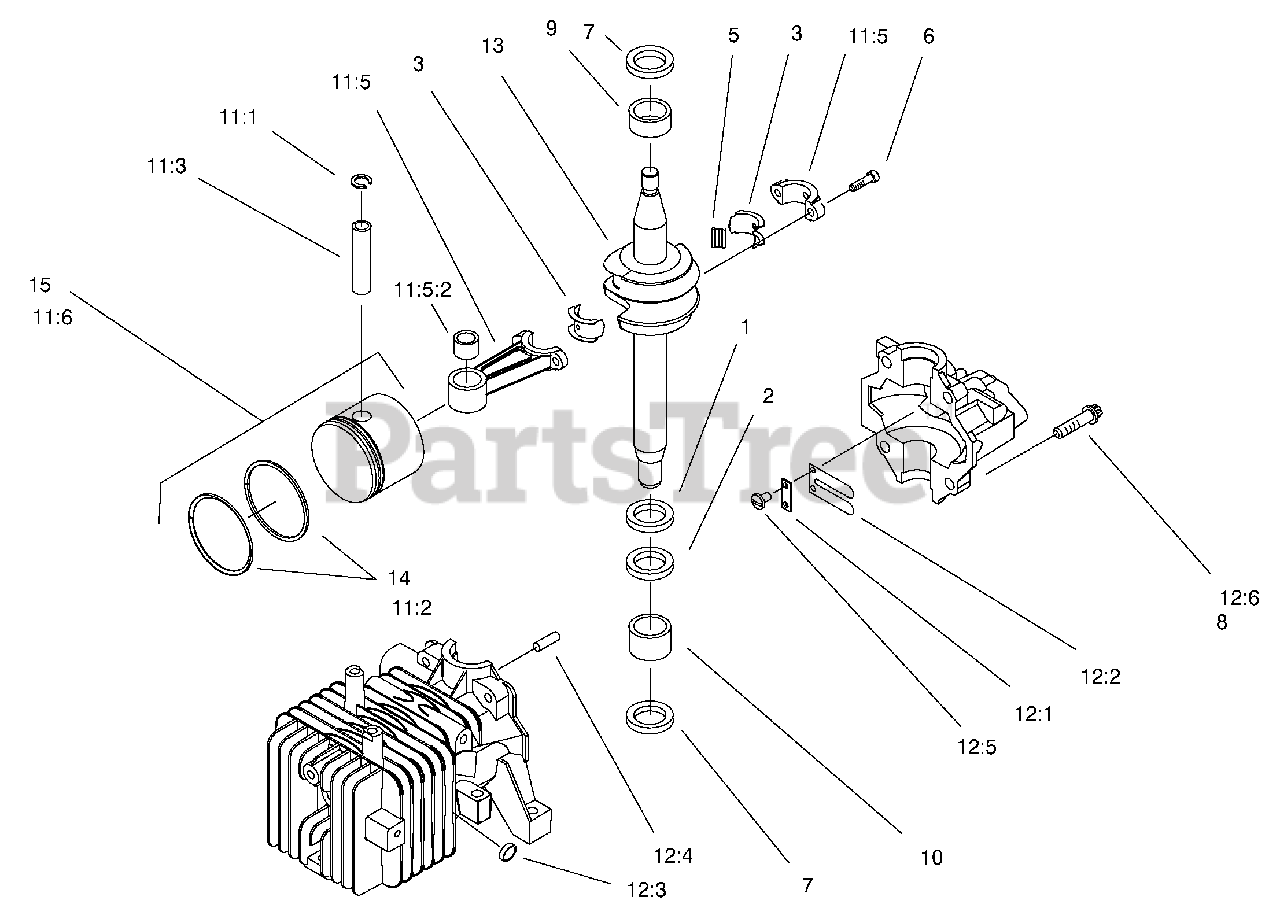

SHORT BLOCK ASSEMBLY NO. 94-5731 Parts Diagram

  • Title
1

Lawn-Boy 252-76

Bearing-Thrust

$21.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 252-80

Washer-Thrust

$8.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 677982

Liner ASM

$40.99

$

In Stock, only 3 left!

0

5

Lawn-Boy 683911

Bearing-Needle

$23.99

$

In Stock, Qty 5

0

6

Lawn-Boy 611393

Screw-HSH

$19.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 611396

Seal-Oil

$5.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 614636

Screw-HWH

$

$

Not available

9

Lawn-Boy 681830

Bearing V

$35.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 681831

Bearing

$23.99

$

In Stock, Qty 5

0

11:1

Lawn-Boy 303712

Ring-Retaining

$2.99

$

In Stock, Qty 13

0

11:2

Lawn-Boy 681737

F-Ring Set

$

$

Not available

11:3

Lawn-Boy 606608

Pin-Wrist
(Superseded to 94-5774)

$9.99

$

Usually ships in 3-6 days

0

11:5

Lawn-Boy 92-4921

Connecting Rod ASM

$206.99

$

In Stock, only 2 left!

0

11:5:2

Lawn-Boy 92-4927

Bearing Xev

$33.99

$

Usually ships in 3-6 days

0

11:6

Lawn-Boy 92-4923

Piston & Ring

$

$

Not available

11

Piston & Connecting Rod

$

$

Not available

12:1

Lawn-Boy 93-4347

Cyl & C/Case V

$

$

Not available

12:2

Lawn-Boy 614636

Screw-HWH

$

$

Not available

12:3

Lawn-Boy 609123

Plug-Core

$2.99

$

Usually ships in 3-6 days

0

12:4

Lawn-Boy 609629

Dowel Xev

$

$

Not available

12:5

Lawn-Boy 612872

Screw-HH

$2.49

$

In Stock, Qty 7

0

12:6

Lawn-Boy 602587

Plate-Backup, Reed

$2.99

$

Usually ships in 3-6 days

0

12:7

Lawn-Boy 602588

Reed-Carburetor

$

$

Not available

12

Cylinder & Crankcase ASM

$

$

Not available

13

Lawn-Boy 94-5733

Crankshaft

$266.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 681737

F-Ring Set

$

$

Not available

15

Lawn-Boy 92-4923

Piston & Ring

$

$

Not available
