10928 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 200000001 - 200999999) (2000) SHORT BLOCK ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

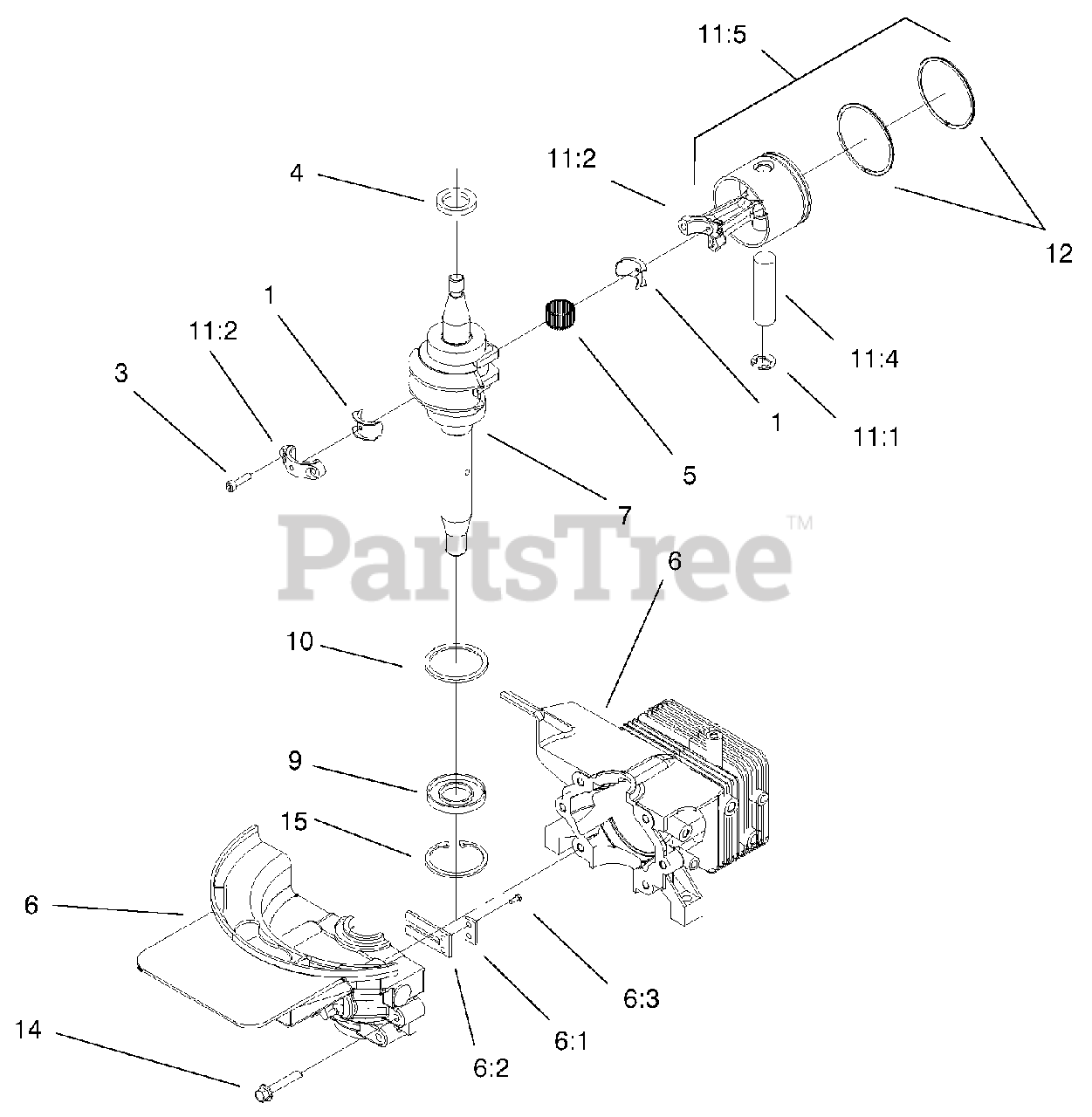

SHORT BLOCK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 677982

Liner ASM

$40.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 609790

Sealer-Loctite 50cc

Note: Not illustrated

$61.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 610372

Sealer-Loctite 6cc

Note: Not illustrated

$25.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 611393

Screw-HSH

$19.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 611396

Seal-Oil

$5.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 683911

Bearing-Needle

$23.99

$

In Stock, Qty 5

0

6

Lawn-Boy 95-7631

Cylinder And Crankcase ASM

$

$

Not available

6:1

Lawn-Boy 602587

Plate-Backup, Reed

$2.99

$

Usually ships in 3-6 days

0

6:2

Lawn-Boy 602588

Reed-Carburetor

$

$

Not available

6:3

Lawn-Boy 612872

Screw-HH

$2.49

$

In Stock, Qty 7

0

7

Lawn-Boy 100-2947

Crankshaft And Bearing ASM Service

$493.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 94-5764

Seal-Oil

$11.99

$

In Stock, Qty 14

0

10

Lawn-Boy 94-5765

Ring-Retaining

$

$

Not available

11:1

Lawn-Boy 303712

Ring-Retaining

$2.99

$

In Stock, Qty 13

0

11:2

Lawn-Boy 95-7629

Connecting Rod ASM

$130.99

$

Usually ships in 3-6 days

0

11:4

Lawn-Boy 94-5774

Pin-Wrist

$9.99

$

Usually ships in 3-6 days

0

11:5

Lawn-Boy 100-2916

Piston And Rings ASM

$

$

Not available

11

Piston And Connecting Rod ASM

$

$

Not available

12

Lawn-Boy 100-2917

Ring Set

$94.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 94-5781

Screw

$6.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 98-7046

Ring-Retaining
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 20+

0
